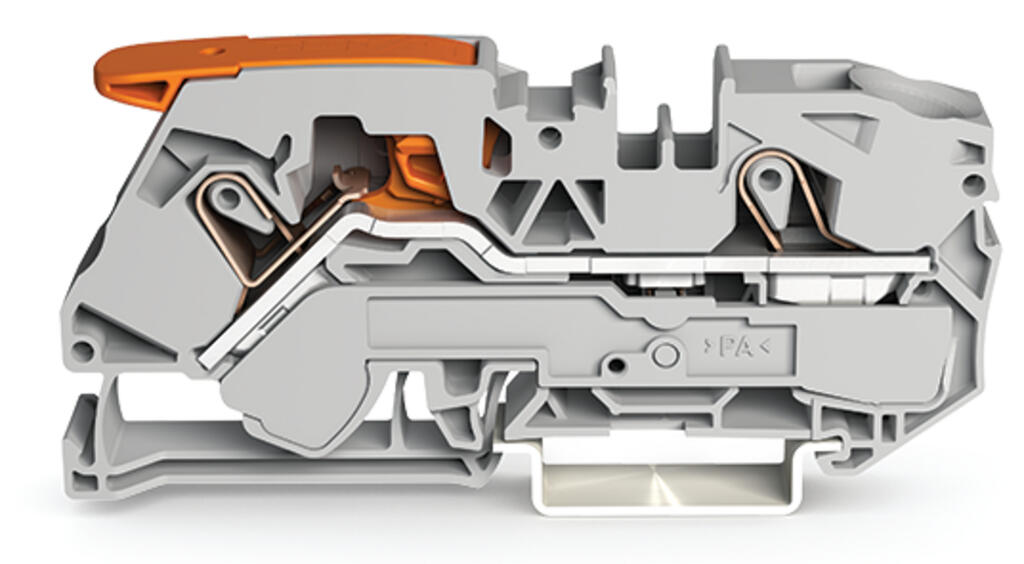

3-phase set (2116-1201/605-038)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2116-1201/605-038 3-phase set;with orange end plate;With rail-mounted terminal blocks with 2 conductors;grey, blue, green-yellow.
Technical Specifications
- Manufacturer part number (MPN)
- 2116-1201/605-038
- EAN / GTIN
- 4055143909853
- Sales unit
- pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 12 mm / 0.472 inches
- Height
- 91.5 mm / 3.602 inches
- Depth from upper-edge of DIN-rail
- 36.9 mm / 1.453 inches
- Depth
- 43.7 mm / 1.72 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.493 MJ
- Actuator color
- orange
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 20 pcs
- Packaging type
- box
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Mounting method
- DIN rail (top hat rail) 35 mm
- Colour
- Multi-coloured
- Halogen free
- Yes
- Rated voltage
- 800 V
- Number of poles
- 5
- Operating temperature
- 105 °C
- Number of clamp positions per pole
- 2
- Closing plate required
- No
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Transparent
- No
- Connectable conductor cross section solid-core
- 2.5–16 mm²
- Connectable conductor cross section multi-wired
- 0.5–16 mm²
- Material insulation body
- Thermoplastic
- Rated current In
- 76 A
- Explosion-tested version 'Ex e'
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143909853
- SAP 1200928835
- Code 84216000
Product Documentation
