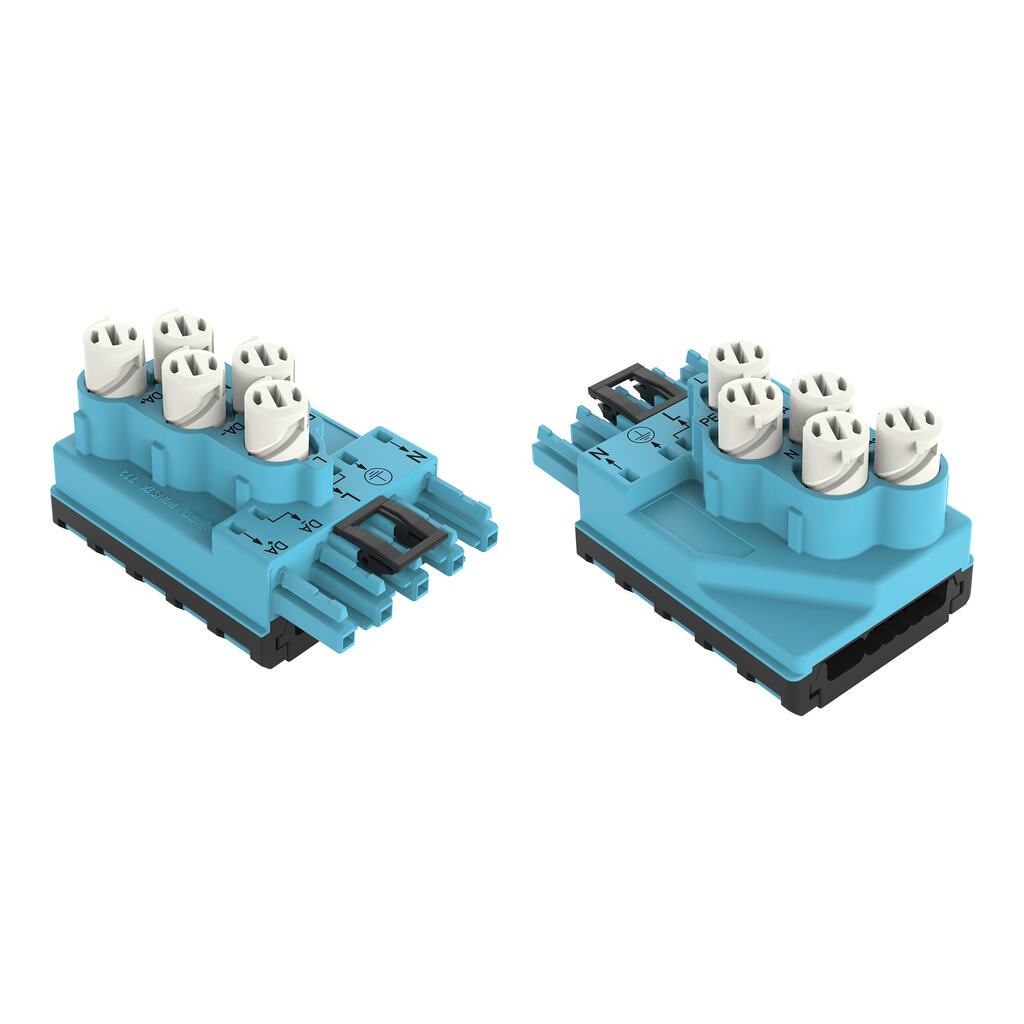

Tap-off module, 5 x 2.5 mm², 5-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 772-272 Manufacturer description: Tap-off module; for flat cable; 5 x 2.5 mm²; 5-pole; Cod. I; with cable connection on the output side; blue. Branch Module;for flat cable;5 x 2,5 mm²;blue.
Technical Specifications
- Manufacturer part number (MPN)
- 772-272
- EAN / GTIN
- 4055143174688
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Total number of potentials
- 5
- Width
- 50 mm / 1.969 inches
- Height
- 46.5 mm / 1.831 inches
- Depth
- 79 mm / 3.11 inches
- Use
- DALI, Lighting Management
- Coding
- I
- Variable coding
- No
- Marking
- N ⏚ L DA- DA+
- Potential marking
- N ⏚ L DA- DA+
- Retention force of a plug-in connection
- When locked: > 80 N
- Number of mating cycles
- 200, without resistive load
- Protection type
- IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- Suitable
- for flat cable 5 x 2.5 mm², 5 x 4 mm², 5 x 2.5 mm² + 2 x 1.5 mm²
- Mismating protection
- Yes
- Locking of plug-in connection
- Locking lever
- Color
- blue
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Contact material
- Copper or copper alloy; surface-treated
- Contact Plating
- Tin
- Fire load
- 1.358 MJ
- Weight
- 78.9 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 10 pcs
- Packaging type
- Box
- Country of origin
- PL
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-44-06-01
- eCl@ss 9.0
- 27-44-06-01
- ETIM 9.0
- EC002588
- ETIM 10.0
- EC002588
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 772-272
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4055143174688
- SAP 1200373451
- Code 82501494
Product Documentation
