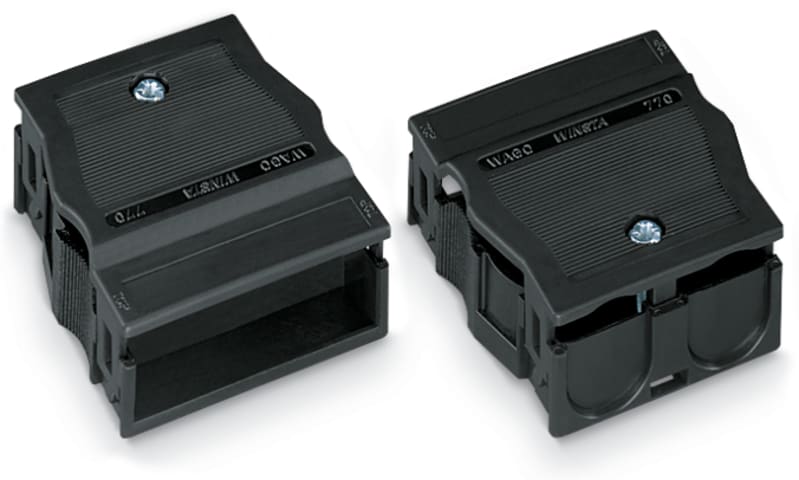

Strain relief housing; 4-Pole; for 2 cables; 9.0 … 13.0 mm; 55 mm; black
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 770-504 Manufacturer description: Strain relief housing; 4-pole; for 2 cables; 9.0 … 13.0 mm; 55 mm; black. Wago Winsta.
Technical Specifications
- Manufacturer part number (MPN)
- 770-504
- EAN / GTIN
- 4017332755313
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Pin spacing
- 10 mm / 0.394 inches
- Width
- 44.6 mm / 1.756 inches
- Height
- 17 mm / 0.669 inches
- Depth
- 50 mm / 1.969 inches
- Screw tightening torque
- 0.5 Nm
- Color
- black
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.327 MJ
- Weight
- 11.8 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 25 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,722
- eCl@ss 10.0
- 27-44-06-92
- eCl@ss 9.0
- 27-44-06-92
- ETIM 9.0
- EC002863
- ETIM 10.0
- EC002863
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Number of poles
- 4P
- MPN
- 770-504
- Type of accessory/spare part
- Strain relief
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4017332755313
- SAP 1000194820
- Code 81193056
