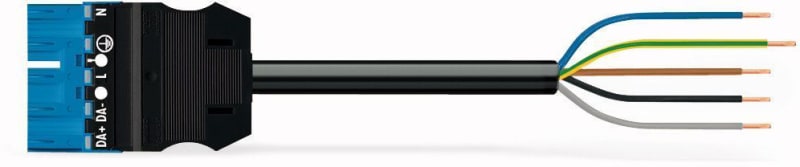

KBL2M 5X2,5 Plug/Open END
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 771-9985/207-201 Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 771-9985/207-201
- EAN / GTIN
- 4045454001766
- Sales unit
- pcs
- Halogen free
- No
- Nominal cross section conductor
- 2.5 mm²
- Cable type
- H05VV-F
- Housing colour
- Black
- Type of locking
- Separate
- Rated current
- 20 A
- Rated voltage
- 400 V
- Total length
- 2000 mm
- Number of poles
- 5
- Housing material
- Polyamide (PA)
- Colour outer sheath
- Black
- Cable diameter
- 11.2–13.9 mm
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Mechanical coding
- Yes
- Rated surge voltage
- 6 kV
- Continuity resistance
- 1 mOhm
- Contact material
- CuSn
- Degree of protection (IP)
- IP20
- Colour coding/contact insert
- Blue
- Fire load
- 16.70917 kWh
- Strip length
- 9 mm
- Dismantle length
- 55 mm
- Type side 1
- Plug
- Type side 2
- Free conductor end
- Insulating piece permanent temperature-resistant
- 105 °C
- Conductor end treatment
- Ultrasonic compressed wire ends
- Cable permanent temperature-resistant to
- 70 °C
- Max. operating temperature at conductor
- 85 °C
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- RAL-number coding/contact insert
- 5015
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4045454001766
- SAP 1000094288
- Code 8587503
Product Documentation
More from WAGO
WAGO

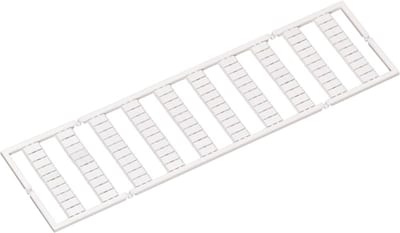

WMB marking card, 101 ... 150 (2X), stretchable 5 - 5.2 mm
793-5508
WAGO
KNX Cable PLUG AND PLINTH, 1 M
894-8992/033-106
WAGO

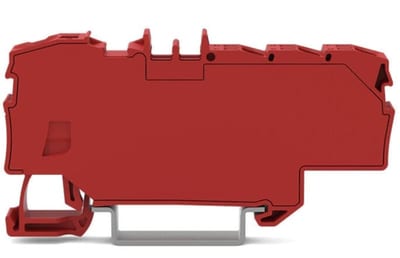

Distribution terminal block, 1 x 6 mm² / 6 x 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2006-8033)
WAGO

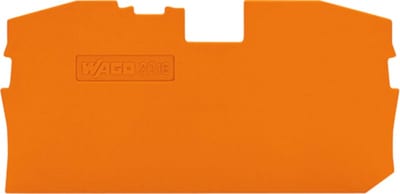

End and intermediate plate; 1 mm thick; orange (2016-1292)
WAGO

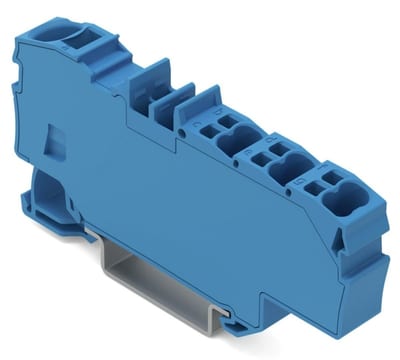

Distribution terminal block, 1 x 6 mm² / 6 x 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2006-8034)
