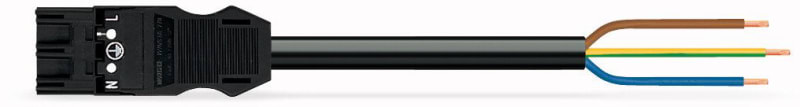

KBL3X1,5 Plug/Open END 3 M
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 771-9993/206-301 Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 771-9993/206-301
- EAN / GTIN
- 4044918271233
- Sales unit
- pcs
- Halogen free
- No
- Nominal cross section conductor
- 1.5 mm²
- Cable type
- H05VV-F
- Housing colour
- Black
- Type of locking
- Separate
- Rated current
- 16 A
- Rated voltage
- 250 V
- Total length
- 3000 mm
- Number of poles
- 3
- Housing material
- Polyamide (PA)
- Colour outer sheath
- Black
- Cable diameter
- 7.4–9.4 mm
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Mechanical coding
- Yes
- Rated surge voltage
- 4 kV
- Continuity resistance
- 1 mOhm
- Contact material
- CuSn
- Degree of protection (IP)
- IP20
- Pole codification
- L, N, PE
- Colour coding/contact insert
- Black
- Fire load
- 24.9325 kWh
- Strip length
- 9 mm
- Dismantle length
- 55 mm
- Type side 1
- Plug
- Type side 2
- Free conductor end
- Insulating piece permanent temperature-resistant
- 105 °C
- Conductor end treatment
- Ultrasonic compressed wire ends
- Cable permanent temperature-resistant to
- 70 °C
- Max. operating temperature at conductor
- 85 °C
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- RAL-number coding/contact insert
- 9004
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4044918271233
- SAP 1000094329
- Code 8917933
Product Documentation
More from WAGO
WAGO

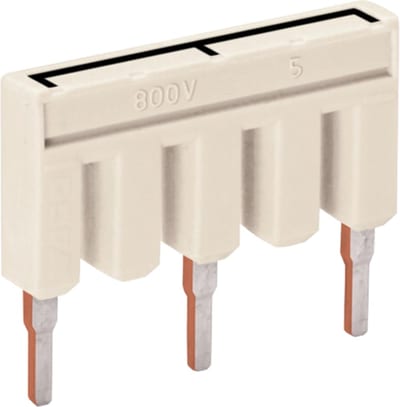

Jumper; 5-Way; insulated; light gray (2002-405)
WAGO
Tap-off DALI 3M (771-5001/166-000)
WAGO
WMB marking card, 11 ... 20 (10X), stretchable 5 - 5.2 mm
793-5503
WAGO

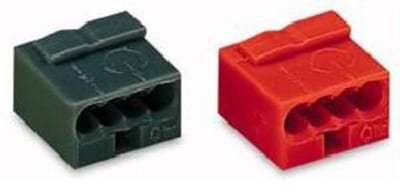

MICRO PUSH WIRE® connector for junction boxes, for solid conductors, max. 0.8 mm Ø, 4-Conductor
243-804
WAGO
Cable 2M 5X25MM Plinth/PLUG
771-9985/007-201
WAGO

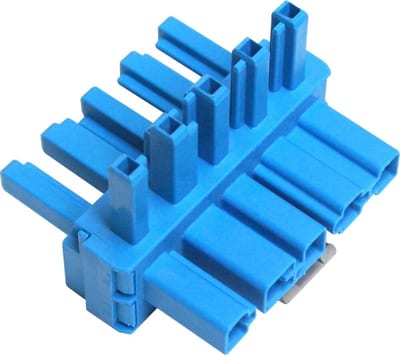

T-distribution connector; 5-Pole; Cod. I; 1 input; 2 outputs; 2 locking levers; blue
770-617
WAGO

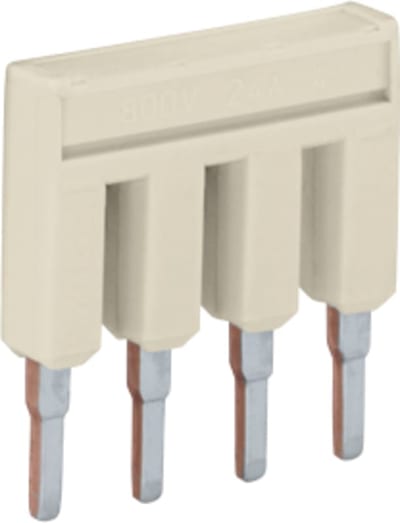

Jumper; 4-Way; insulated; light gray (2002-404)
WAGO

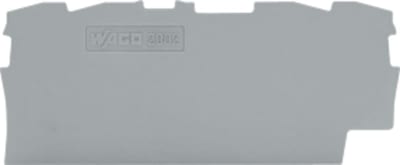

End and intermediate plate; 0.8 mm thick; gray (2002-1491)
