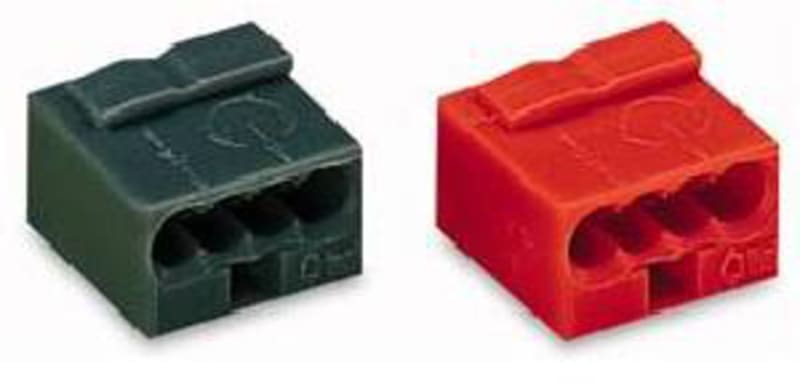

MICRO PUSH WIRE® connector for junction boxes, for solid conductors, max. 0.8 mm Ø, 4-Conductor
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 243-804 Manufacturer description: MICRO PUSH WIRE® connector for junction boxes; for solid conductors; max. 0.8 mm Ø; 4-conductor; light gray cover; Surrounding air temperature: max 60°C; red.
Technical Specifications
- Manufacturer part number (MPN)
- 243-804 EAN / GTIN: 4017332546508 Sales unit: pcs minimum order quantity: 100 Order multiple: 100 Clamping units: 4 Total number of potentials: 1 Number of connection types: 1 Number of levels: 1 Width: 10 mm / 0.394 inches Height: 6.8 mm / 0.268 inches Depth: 10 mm / 0.394 inches Color: red Cover color: light gray Fire load: 0.012 MJ Weight: 0.8 g Ambient temperature (operation): +60 °C Continuous operating temperature: 105 °C PU (SPU): 1000 (100) pcs Packaging type: box Country of origin: DE Customs tariff number: 85369010000 UNSPSC: 39,121,409 eCl@ss 10.0: 27-14-11-04 eCl@ss 9.0: 27-14-11-04 ETIM 9.0: EC000446 ETIM 10.0: EC000446 ECCN: NO US CLASSIFICATION RoHS Compliance Status: Compliant,No Exemption EAN: 4044918441025 MPN: 243-804 Nominal current: 6 A Nominal voltage: 100 V Colour: Red Number of clamp positions: 4 Cable diameter: 0.6–0.8 mm Suitable for solid conductors: Yes AWG-range: 20–22 Suitable for multi-wire conductors: No Suitable for flexible conductors: No Transparent: No With operation lever: No Type of locking/unlocking: None
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 4017332546508
- SAP 1000198974
- Code 8930848
Product Documentation
More from WAGO
WAGO
Cable 2M 5X25MM Plinth/PLUG
771-9985/007-201
WAGO
T-distribution connector; 5-Pole; Cod. I; 1 input; 2 outputs; 2 locking levers; blue
770-617
WAGO
Jumper; 4-Way; insulated; light gray (2002-404)
WAGO
End and intermediate plate; 0.8 mm thick; gray (2002-1491)
WAGO
KBL4M 3X1,5 Plinth/OPEN END
771-9993/106-401
WAGO

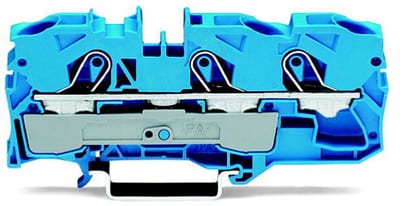

3-Conductor through terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2010-1304)
WAGO

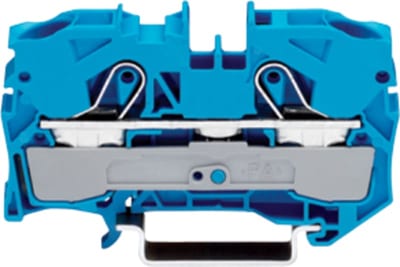

2-Conductor through terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2010-1204)
WAGO

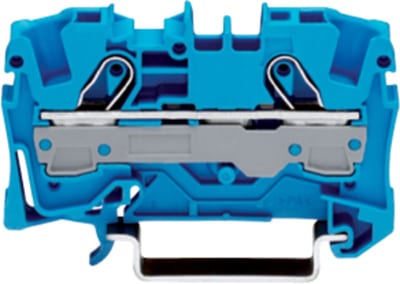

2-Conductor through terminal block, 6 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2006-1204)
