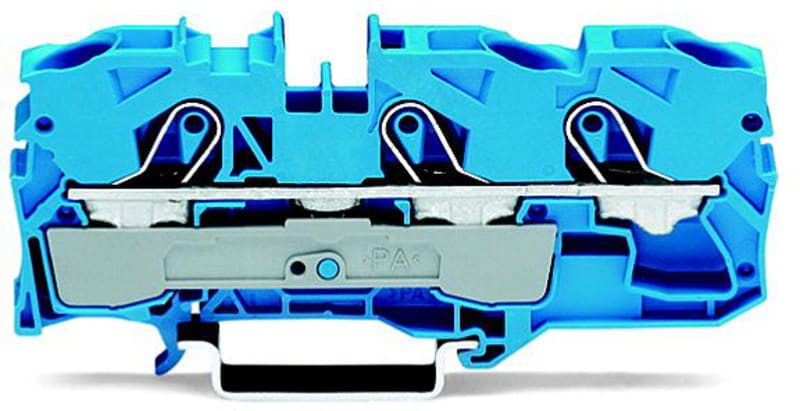

3-Conductor through terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2010-1304)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2010-1304 Manufacturer description: 3-conductor through terminal block; 10 mm²; for Ex e II and Ex i applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 10,00 mm²; blue. Terminal Block 3 conductor Blue,10mm².
Technical Specifications
- Manufacturer part number (MPN)
- 2010-1304
- EAN / GTIN
- 4017332076234
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Clamping units
- 3
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 10 mm / 0.394 inches
- Height
- 89 mm / 3.504 inches
- Depth from upper-edge of DIN-rail
- 36.9 mm / 1.453 inches
- Depth
- 43.5 mm / 1.713 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- blue
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.367 MJ
- Weight
- 23.7 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 25 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 10 mm²
- MPN
- 2010-1304
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 2.5–16 mm²
- Connectable conductor cross section multi-wired
- 0.5–10 mm²
- Rated current In
- 57 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 10 mm
- Length
- 89 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017332076234
- SAP 1000027440
- Code 8502583
