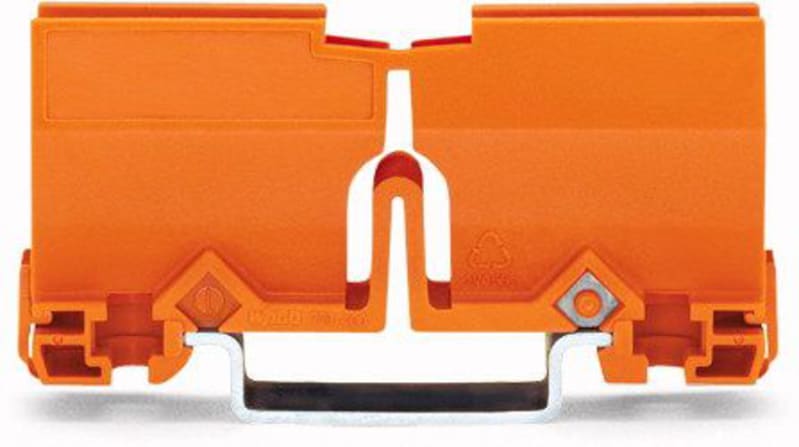

Mounting carrier, 773 Series - 2.5 mm² / 4 mm² / 6 mm², for DIN-35 rail mounting/screw mounting
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 773-332 Manufacturer description: Mounting carrier; 773 Series - 2.5 mm² / 4 mm² / 6 mm²; for DIN-35 rail mounting/screw mounting; orange. Holder for instikkklemmer (for all 773 series).
Technical Specifications
- Manufacturer part number (MPN)
- 773-332
- EAN / GTIN
- 4044918526524
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 18 mm / 0.709 inches
- Height
- 78.2 mm / 3.079 inches
- Depth from upper-edge of DIN-rail
- 25.3 mm / 0.996 inches
- Depth
- 30.5 mm / 1.201 inches
- Mounting type
- DIN-35 rail | Screw mount
- Suitable
- for all PUSH WIRE® junction box connectors (773 Series)
- Color
- orange
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.255 MJ
- Weight
- 8.5 g
- Continuous operating temperature
- 105 °C
- Product Group
- 7 (Push Wire Conn.)
- PU (SPU)
- 50 (10) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,702
- eCl@ss 10.0
- 27-14-11-92
- eCl@ss 9.0
- 27-14-11-92
- ETIM 9.0
- EC002848
- ETIM 10.0
- EC002848
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 773-332
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4044918526524
- SAP 1000033668
- Code 8245375
