WAGO

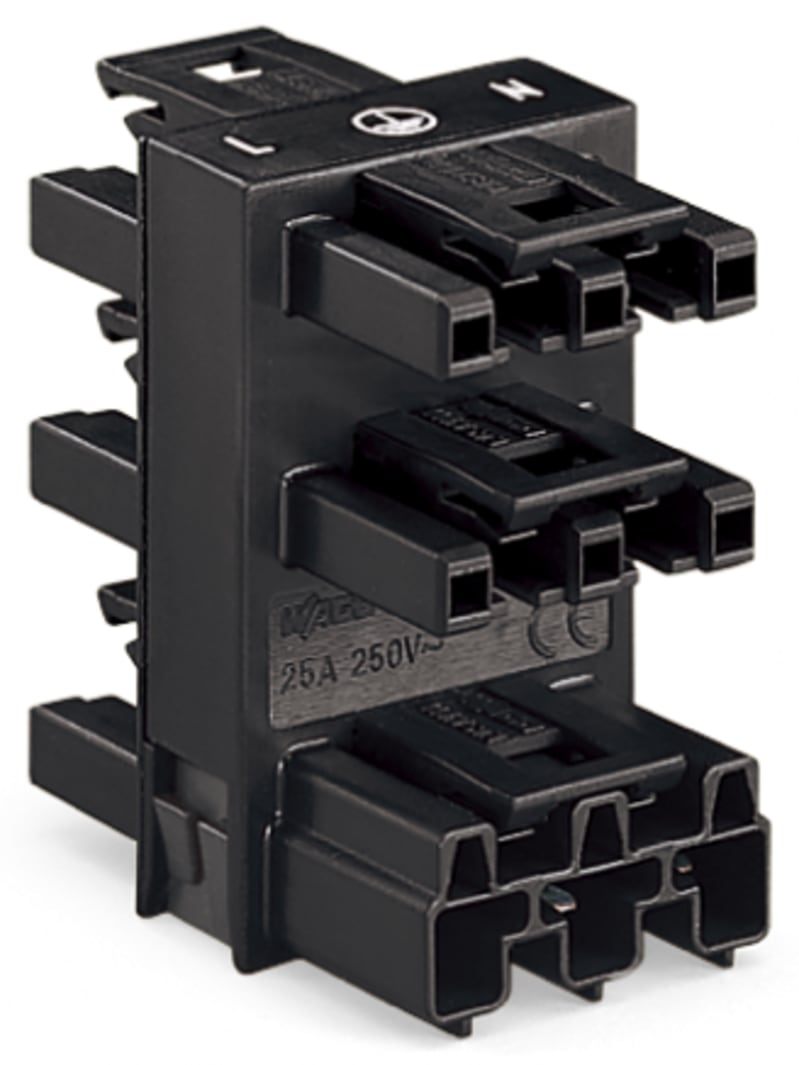

5-Way distribution connector; 3-Pole; Cod. A; 1 input; 5 outputs; outputs on both sides; black
Part number770-608EAN / GTIN4045454251376HS code8536.69
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 770-608 Manufacturer description: 5-way distribution connector; 3-pole; Cod. A; 1 input; 5 outputs; outputs on both sides; black. Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 770-608
- EAN / GTIN
- 4045454251376
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Total number of potentials
- 3
- PE function
- Preceding PE contact
- Pin spacing
- 10 mm / 0.394 inches
- Width
- 30 mm / 1.181 inches
- Height
- 48 mm / 1.89 inches
- Depth
- 46 mm / 1.811 inches
- Use
- General mains applications
- Coding
- A
- Marking
- L ⏚ N
- Potential marking
- L ⏚ N
- Mating force of a plug-in connection
- Approx. 20 … 70 N (depending on pole number)
- Retention force of a plug-in connection
- When locked: > 80 N
- Unmating force of a plug-in connection
- Unlocked: approx. 20 … 70 N (depending on pole number)
- Number of mating cycles
- 200, without resistive load
- Type of distribution box
- Distribution connector, 5-way
- Protection type
- IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- Contact type (pluggable connector)
- Socket/plug
- Mismating protection
- Yes
- Locking lever
- Yes
- Locking of plug-in connection
- Locking lever
- Number of locking levers
- 6
- Color
- black
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Contact material
- Copper or copper alloy; surface-treated
- Contact Plating
- Tin
- Fire load
- 0.547 MJ
- Weight
- 37 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- PU (SPU)
- 25 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,406
- eCl@ss 10.0
- 27-44-06-03
- eCl@ss 9.0
- 27-44-06-03
- ETIM 9.0
- EC002567
- ETIM 10.0
- EC002567
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 770-608
- Rated voltage
- 250 V
- Rated current
- 25 A
- Rated current to luminaire
- 25 A
- Number of poles
- 3
- Degree of protection (IP)
- IP20
- Number of inputs
- 3
- Number of outputs
- 15
- Pole codification
- L, N, PE
- Mechanical coding
- Yes
- Colour coding/contact insert
- Black
- Colour of the separate adaptor piece
- Without adapter piece
- Type of locking
- Integrated in plug-in connector
- Halogen free
- Yes
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
- Housing material
- Polyamide (PA)
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Continuity resistance
- 1 mOhm
- Rated surge voltage
- 4 kV
- Length
- 46 mm
- Type of distributor
- HH-distributor
- Type of integrated switching
- None
- Mounting possibility
- With separate adaptor
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4045454251376
- SAP 1000094207
- Code 8943101
Product Documentation
Document preview: 5-Way distribution connector; 3-Pole; Cod. A; 1 input; 5 outputs; outputs on both sides; black (770-608) — Specification sheet
