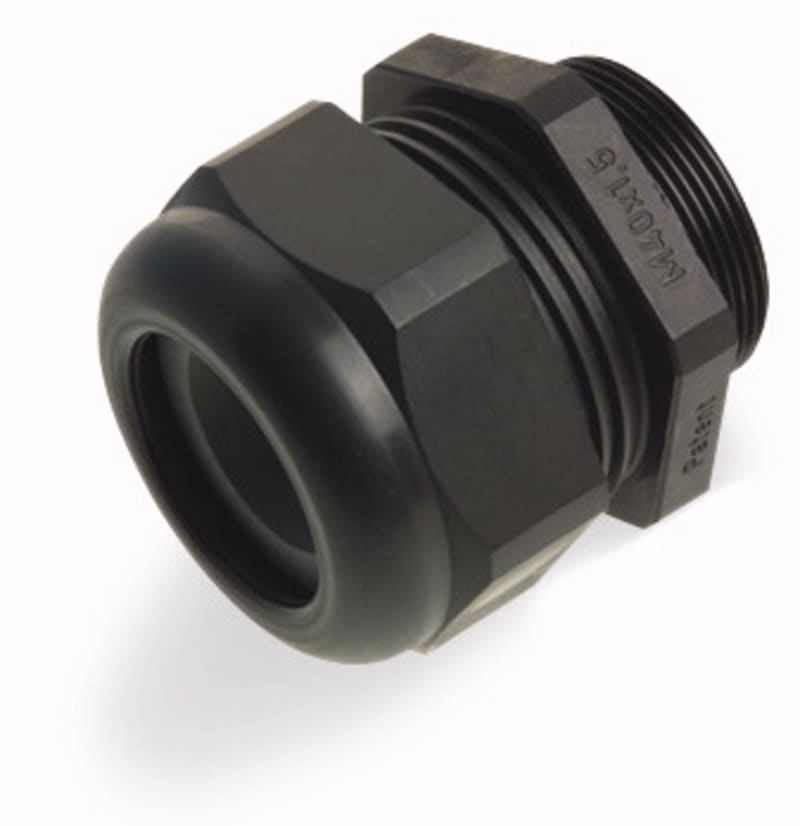

Cable fitting; M40 x 1.5 with O-ring; Plastic; black
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 895-1601 Manufacturer description: Cable fitting; M40 x 1.5 with O-ring; Plastic; black. Cable gland M40 with O-ring.
Technical Specifications
- Manufacturer part number (MPN)
- 895-1601
- EAN / GTIN
- 4045454006433
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Color
- black
- Insulation material (main housing)
- Polyamide 66 (PA 66)
- Flammability class per UL94
- V0
- Fire load
- 2.7 MJ
- Weight
- 75.8 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 5 pcs
- Packaging type
- box
- Country of origin
- CH
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,431
- eCl@ss 10.0
- 27-14-44-32
- eCl@ss 9.0
- 27-14-44-32
- ETIM 9.0
- EC000441
- ETIM 10.0
- EC000441
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 895-1601
- Thread type
- Metric
- Nominal thread size metric/PG
- 40
- Pitch thread
- 1.5 mm
- Suitable for cable diameter
- 20–26 mm
- Material
- Plastic
- Material quality
- Polyamide (PA)
- Halogen free
- Yes
- Glass-fibre reinforced
- No
- Degree of protection (IP)
- IP20
- Shock resistant
- No
- Bend radius protection/trumpet flare
- No
- With locknut
- No
- Snapping in opening
- No
- Multi seal area
- No
- Flat cable coupling
- No
- With strain relief
- No
- Separable screw gland
- No
- Explosion-tested version
- No
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- For armoured cable
- No
- EMC-version
- No
- Screened
- No
- Colour
- Black
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4045454006433
- SAP 1200235919
- Code 82182063
