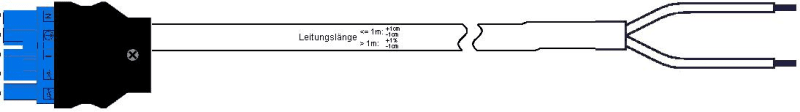

Tap-off DALI 3M (771-5001/166-000)
Pricing
Request a quote
We reply within 24 hours
Product Description
Pre-assembled connection cable; Eca; Plug / open ends; blue.
Technical Specifications
- Manufacturer part number (MPN)
- 771-5001/166-000
- EAN / GTIN
- 4055143261166
- Sales unit
- pcs
- Halogen free
- No
- Nominal cross section conductor
- 1.5 mm²
- Cable type
- H05VV-F
- Housing colour
- Black
- Type of locking
- Separate
- Rated current
- 16 A
- Rated voltage
- 250 V
- Total length
- 3000 mm
- Number of poles
- 5
- Housing material
- Polyamide (PA)
- Colour outer sheath
- Black
- Cable diameter
- 6.8–8.6 mm
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Mechanical coding
- Yes
- Rated surge voltage
- 4 kV
- Continuity resistance
- 1 mOhm
- Contact material
- CuSn
- Degree of protection (IP)
- IP20
- Colour coding/contact insert
- Blue
- Fire load
- 25.03778 kWh
- Strip length
- 9 mm
- Dismantle length
- 48 mm
- Type side 1
- Plug
- Type side 2
- Free conductor end
- Insulating piece permanent temperature-resistant
- 105 °C
- Conductor end treatment
- Ultrasonic compressed wire ends
- Cable permanent temperature-resistant to
- 70 °C
- Max. operating temperature at conductor
- 85 °C
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- RAL-number
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4055143261166
- SAP 1200844073
- Code 84042095
