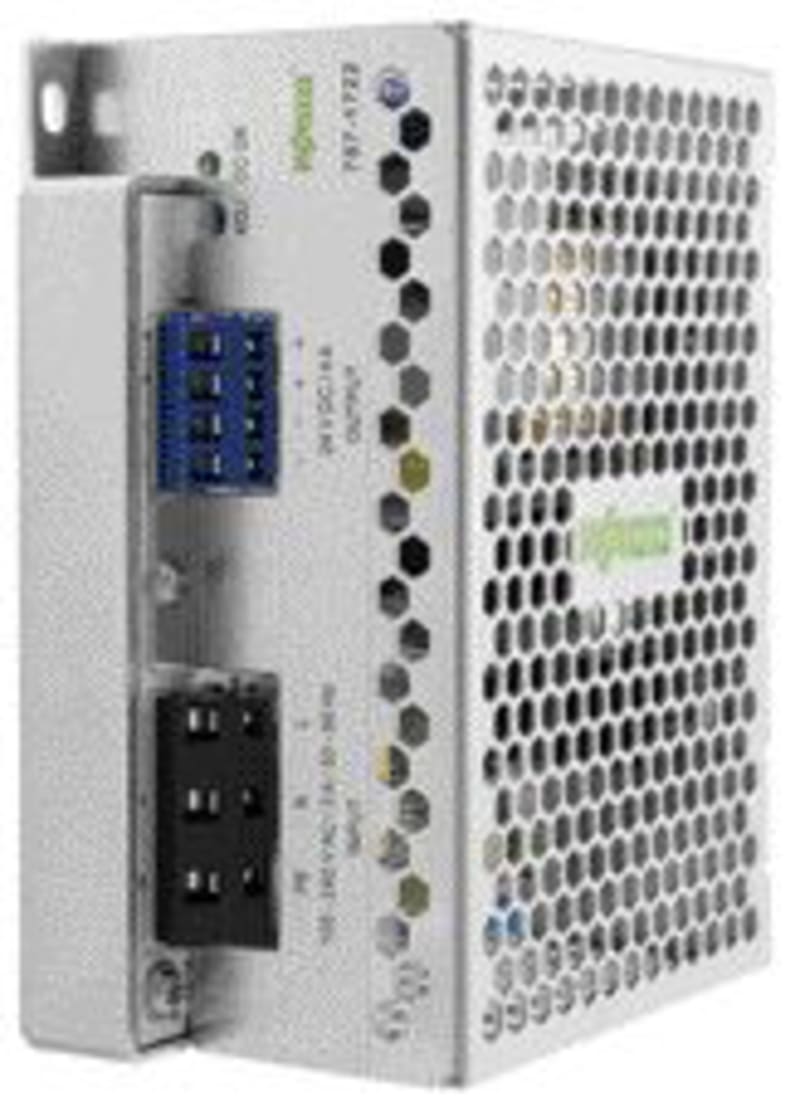

Switched-mode power supply; Eco; 1-Phase; 24 VDC output voltage; 5 A output current; DC-OK LED

WAGO 787-1722 Manufacturer description: Switched-mode power supply; Eco; 1-phase; 24 VDC output voltage; 5 A output current; DC-OK LED. Power supply 5A.

Manufacturer part number (MPN)

787-1722

EAN / GTIN

4055143372442

Sales unit

pcs

Isolation voltage (pri.-sec.)

4.242 kVDC

Isolation voltage (pri.-PE)

2.2 kVDC

Isolation voltage (sec.-PE)

0.7 kVDC

Protection class

I

Protection type

IP20; per EN 60529

Resistance to reverse feed

≤ 30 VDC

Overvoltage category

II

Pollution degree

2

Transient suppression (primary)

Varistor

Short-circuit-protected

Yes

Open-circuit-proof

Yes

Parallel operation

Yes

Series operation

Yes, for 2 devices of the same type

MTBF

> 300,000 h (per IEC 61709)

Width

60 mm / 2.362 inches

Height

130 mm / 5.112 inches

Depth from upper-edge of DIN-rail

99 mm / 3.898 inches

Mounting type

DIN-35 rail | Screw mount

Fire load

0.129 MJ

Weight

550 g

Ambient temperature (operation)

-20 … +60 °C

Ambient temperature (storage)

-25 … +75 °C

Relative humidity

10 … 95 % (no condensation permissible)

Derating

-3 %/K (> 45 °C)

Climatic category

3K3 (per EN 60721)

Conformity marking

CE

Standards/specifications

EN 61204-3 | EN 60335-1 | EN 62368-1 | UL 60950-1 | UL 508 | SEMI F47

PU (SPU)

1 pcs

Packaging type

box

Country of origin

CN

Customs tariff number

85044083900

UNSPSC

39,121,004

eCl@ss 10.0

27-04-07-01

eCl@ss 9.0

27-04-07-01

ETIM 9.0

EC002540

ETIM 10.0

EC002540

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

SCIP notification number (Bulgaria)

aa2613f5-6113-400e-be75-dc6756207f88

SCIP notification number (Czech Republic)

7ede9750-7374-4598-8c28-b0e5d82e38fc

Rated current

5 A

MPN

787-1722

Voltage type (supply voltage)

AC/DC

1st secondary output voltage

22–26 V

Max. output current 1

5 A

Secondary voltage adjustable

Yes

Nominal value output voltage 1

24 V

Nominal value output current 1

5 A

Short-circuit-proof

Yes

Rated supply voltage AC 50 Hz

90–264 V

Rated supply voltage AC 60 Hz

90–264 V

Rated supply voltage DC

125–375 V

Output voltage stabilized

Yes

Power output

120 W

Stabilized

Yes

Type of electric connection

Spring clamp connection

Suitable for rail mounting

Yes

Wall mounting possible

Yes

Suitable for distribution board

No

Width in number of modular spacings

6

Direct mounting possible

No

Depth

60 mm

Suitable for safety functions

No

Degree of protection (IP)

IP20

Suitable for wall mounting

No

HS Code

8504.40
