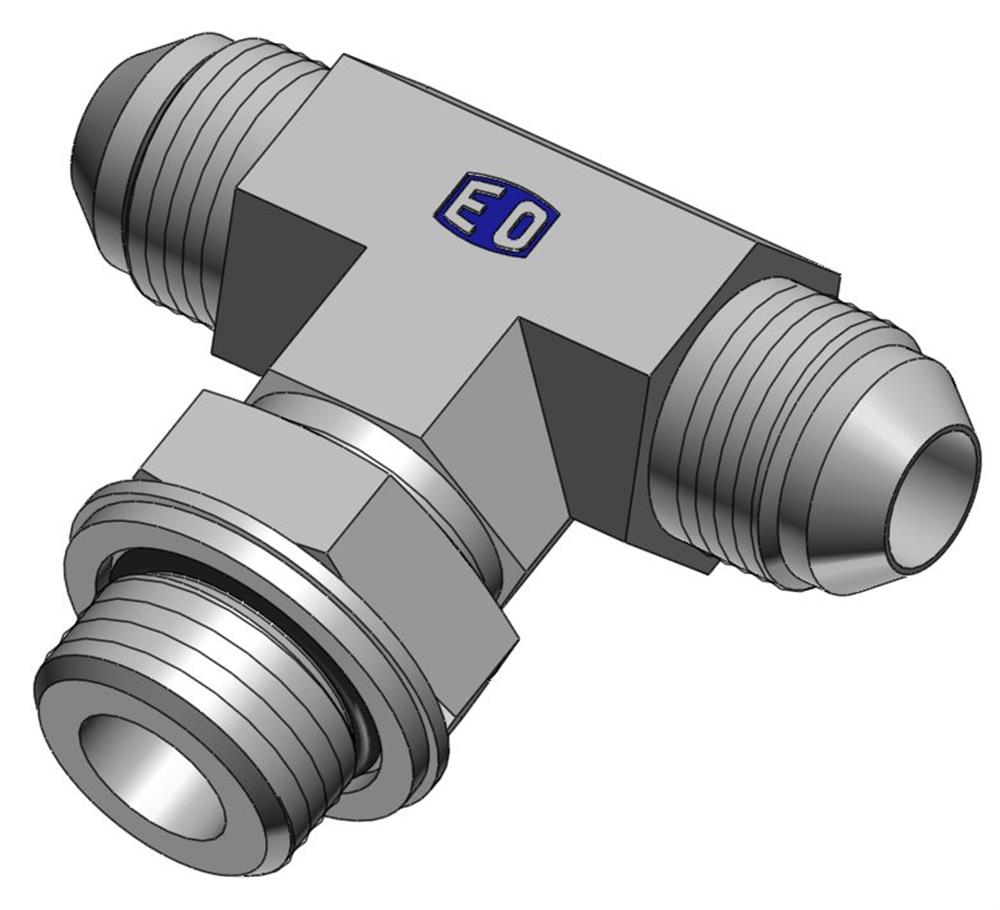

Triple-Lok S4OMXS Tee Fitting adjustable steel chromated JIC - 1, 25mm, 250bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Triple-Lok S4OMXS Tee Fitting adjustable steel chromated JIC. Extraction, pipe/thread, tee (Technique / Hydraulics / Extraction fittings). Principal data: thread 1, pipe dimension 25 mm, working pressure 250 bar. Supplied under manufacturer part number 16S4OMXS, HS code 7307.99, country of origin Germany.
Technical Specifications
- Product type
- Extraction, pipe/thread, tee
- Product group
- Hydraulics
- Thread
- 1
- Pipe dimension
- 25 mm
- Working pressure
- 250 bar
- Threaded screw
- 1
- Threaded pipe end
- 1 5/16" x 12 UNF
- Length
- 104 mm
- Wrench width
- 41 mm
- Safety factor
- 4:1
- Approval
- DNV, Bureau Veritas, Lloyd's, DVGW and others
- Gasket
- NBR
- Carbon footprint (EPD)
- 1.7866 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 73079910
- HS code
- 7307.99
- Manufacturer part number
- 16S4OMXS
Standards & Compliance
- HS Code
- 7307.99
Cross References
- MPN 16S4OMXS
