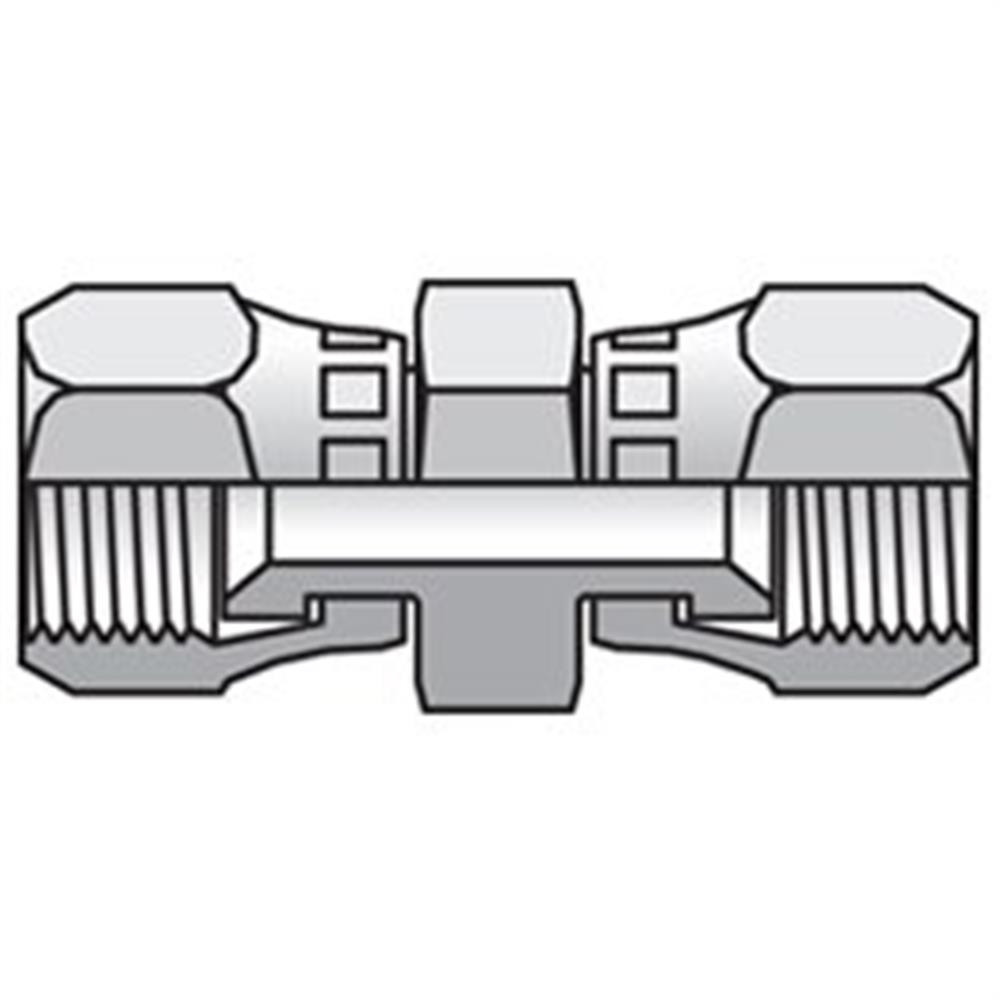

Triple-Lok HX6-S Straight Connector steel chromated JIC - 25mm, 25mm, 250bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Triple-Lok HX6-S Straight Connector steel chromated JIC. Excavation, pipe/pipe, straight (Technique / Hydraulics / Extraction fittings). Principal data: pipe dimension 25 mm, pipe dimension 2 25 mm, working pressure 250 bar. Supplied under manufacturer part number 16 HX6-S, HS code 7307.99, country of origin China.
Technical Specifications
- Product type
- Excavation, pipe/pipe, straight
- Product group
- Hydraulics
- Pipe dimension
- 25 mm
- Pipe dimension 2
- 25 mm
- Working pressure
- 250 bar
- Threaded pipe end
- 1 5/16" x 12 UNF
- Length
- 68 mm
- Wrench width
- 41 mm
- Safety factor
- 4:1
- Approval
- DNV, Bureau Veritas, Lloyd's, DVGW and others
- Carbon footprint (EPD)
- 0.7613 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 73079910
- HS code
- 7307.99
- Manufacturer part number
- 16 HX6-S
Standards & Compliance
- HS Code
- 7307.99
Cross References
- MPN 16 HX6-S
