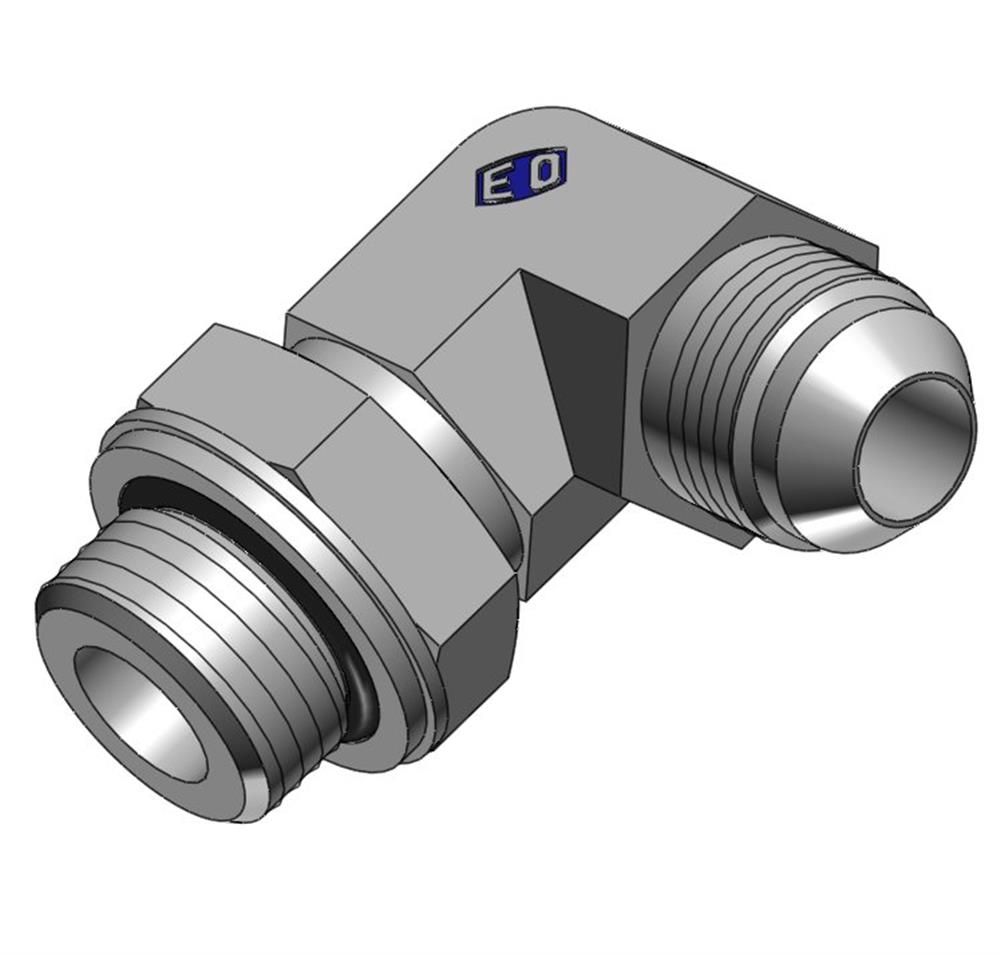

Triple-Lok C40MX Angle Insertion adjustable steel chromated JIC/BSP - 1, 30mm, 90°, 250bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Triple-Lok C40MX Angle Insertion adjustable steel chromated JIC/BSP. Extraction, pipe/thread, angle (Technique / Hydraulics / Extraction fittings). Principal data: thread 1, pipe dimension 30 mm, angle 90°, working pressure 250 bar. Supplied under manufacturer part number 20-16C4OMXS, HS code 7307.92, country of origin Germany.
Technical Specifications
- Product type
- Extraction, pipe/thread, angle Product group: Hydraulics Thread: 1 Pipe dimension: 30 mm Angle: 90° Working pressure: 250 bar Threaded screw: 1 Threaded pipe end: 1 5/8"x12 UNF Safety factor: 4:1 Approval: DNV, Bureau Veritas, Lloyd's, DVGW and others Gasket: NBR Sales unit: Pack Carbon footprint (EPD): 2.1435 kg CO2e per pcs Country of origin: Germany Customs tariff code (EU CN): 73079290 HS code: 7307.92 Manufacturer part number: 20-16C4OMXS
Standards & Compliance
- HS Code
- 7307.92
Cross References
- MPN 20-16C4OMXS
