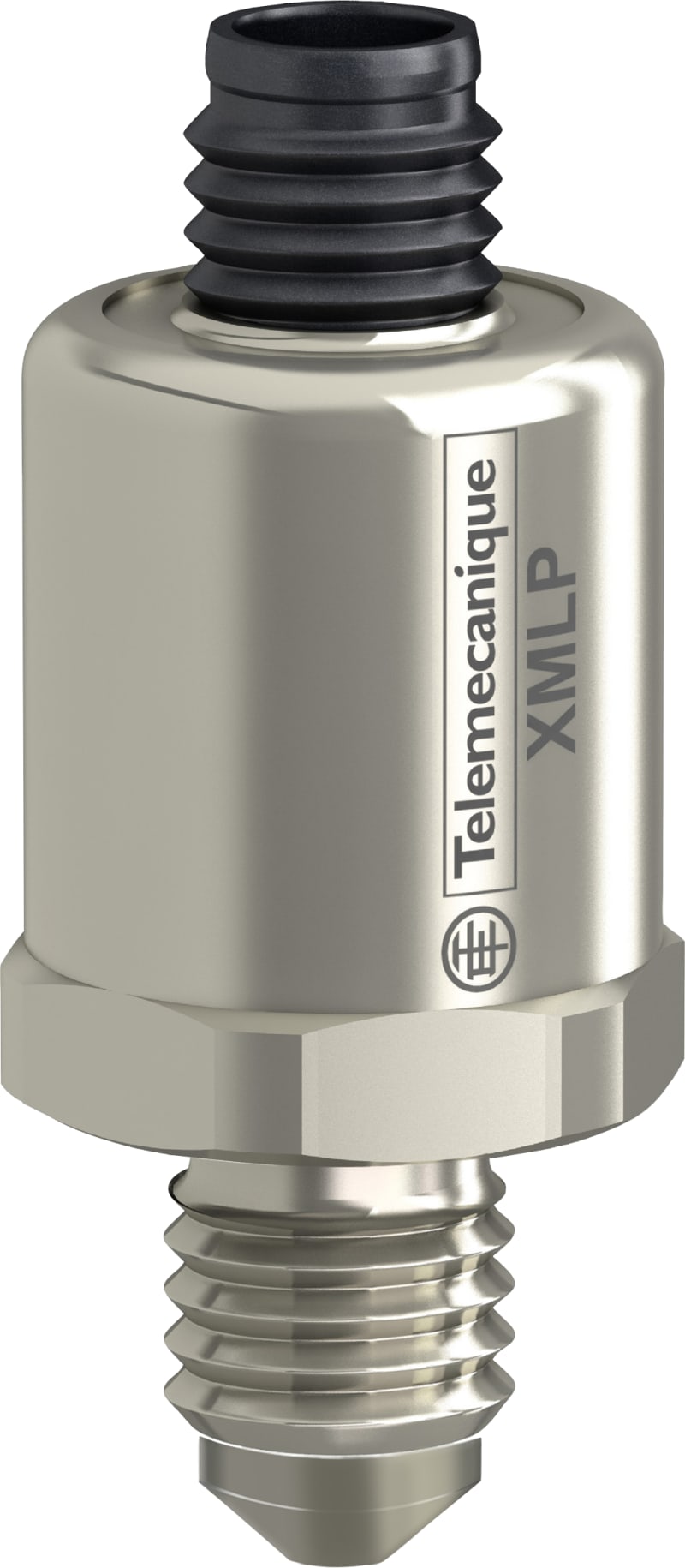

Telemecanique XMLP060BD270 Pressure Transmitter, 0–60 bar, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XMLP060BD270 OsiSense XMLP pressure transmitter, range 0–60 bar, 0.5–4.5 V ratiometric output, 7/16"-20 UNF female process connection, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XMLP060BD270 EAN / GTIN: 3666916022764 Sales unit: pcs Output signal: 4–20 mA Process connection: 7/16 in male Depth: 36 mm With display: No Diameter: 26 mm With manual on/off switch: No Initial setting: 0–60000 hPa End setting: 0–60000 hPa Max. operation pressure: 60000 hPa Explosion-proof: No Degree of protection (IP): IP65/IP67 Switch off pressure: 0–60 bar Rated voltage Ue at DC: 12–24 V Bursting pressure: 180 bar Engaging pressure: 0–60 bar Electronic version: Yes End value measuring range pressure: 6000000 Pa Suitable as 2-point controller: No Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 120 bar Medium temperature: -20–120 °C With hand operation: No Max. operating pressure: 60000 hPa Country of origin: Switzerland
Standards & Compliance
- HS Code
- 9026.20
Cross References
- EAN 3666916022764
- SAP 1200045338
- Code 81877356
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCP1440L10 Sensor Cable, M12 female angled, 3-pin, 10 m
Telemecanique
Telemecanique XMLPM09BD71F Pressure Transmitter, 0–9 bar, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XUSL4MA30H076N Type 4 Safety Light Grille with Integrated Muting, 760 mm protected height
Telemecanique
Telemecanique XMLR400M1P25 Pressure Sensor with Display, 0–400 bar, 4–20 mA + 1× PNP
Telemecanique
Telemecanique XMLP250BC71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique
Telemecanique XMLR001G2P05 Pressure Sensor with Display, 0–1 bar, 2× PNP
Telemecanique
Telemecanique XMLP016BC71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique
Telemecanique XUSL4E14F061N Safety Light Curtain Type 4, Finger Detection (14 mm), 610 mm Height
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XMLP060BD270?
- XMLP060BD270 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XMLP060BD270.
- What is the HS code for XMLP060BD270?
- The customs tariff (HS) code for XMLP060BD270 is 9026.20.
- Who manufactures XMLP060BD270?
- XMLP060BD270 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XMLP060BD270?
- Yes — the XMLP060BD270 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XMLP060BD270?
- The minimum order quantity is 1.
- Is XMLP060BD270 available?
- Yes — XMLP060BD270 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
