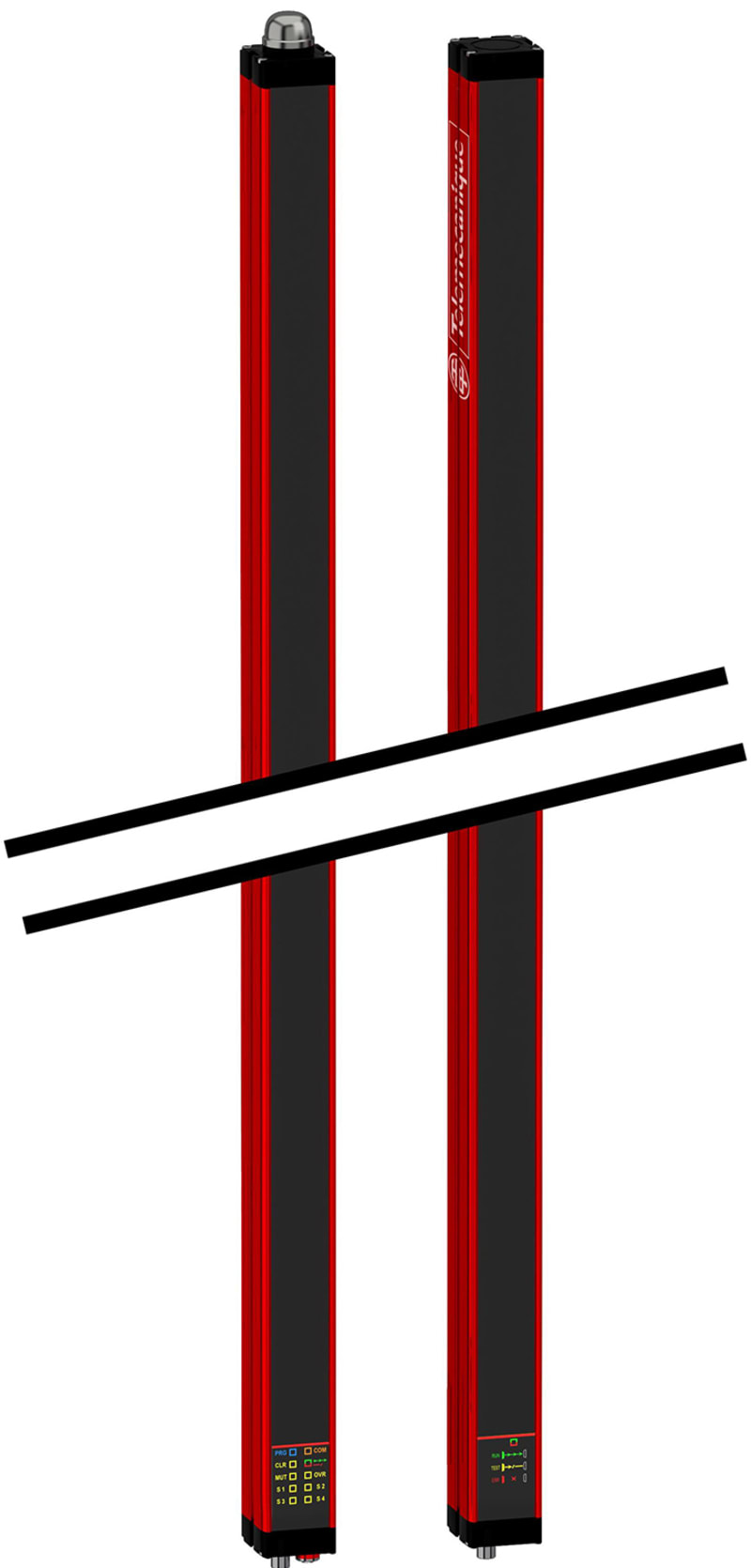

Telemecanique XUSL4MA30H076N Type 4 Safety Light Grille with Integrated Muting, 760 mm protected height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4MA30H076N type 4 safety light grille with integrated muting function, 760 mm protected height, for conveyor and palletiser openings where material must pass but persons must be detected.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4MA30H076N
- EAN / GTIN
- 3666916027547
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 50 mm
- Height of sensor
- 870 mm
- Length of sensor
- 55 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- With muting function
- Yes
- Override possible
- No
- Response time
- 12.5 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 760 mm
- Type of safety according to IEC 61496-1
- 4
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP67
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027547
- SAP 1200357469
- Code 82360809
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLR400M1P25 Pressure Sensor with Display, 0–400 bar, 4–20 mA + 1× PNP
Telemecanique
Telemecanique XMLP250BC71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique
Telemecanique XMLR001G2P05 Pressure Sensor with Display, 0–1 bar, 2× PNP
Telemecanique
Telemecanique XMLP016BC71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique
Telemecanique XUSL4E14F061N Safety Light Curtain Type 4, Finger Detection (14 mm), 610 mm Height
Telemecanique
Telemecanique XZCPV0666L2 Sensor Cable, M8 female, 3-pin, PVC, 2 m
Telemecanique
Telemecanique XMLP040BD21FQ Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique

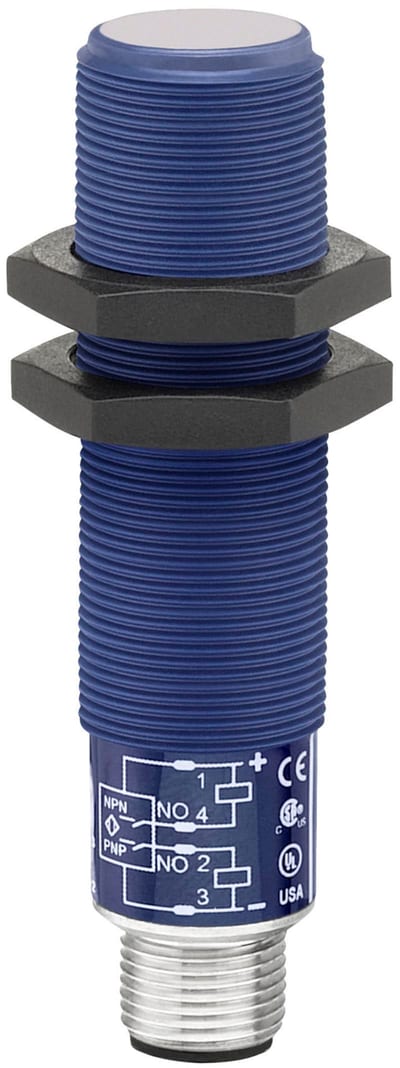

Telemecanique XXR18A4KAM12 Ultrasonic Sensor (Through-Beam Receiver) M18, PNP/NPN selectable, NO, M12 connector
