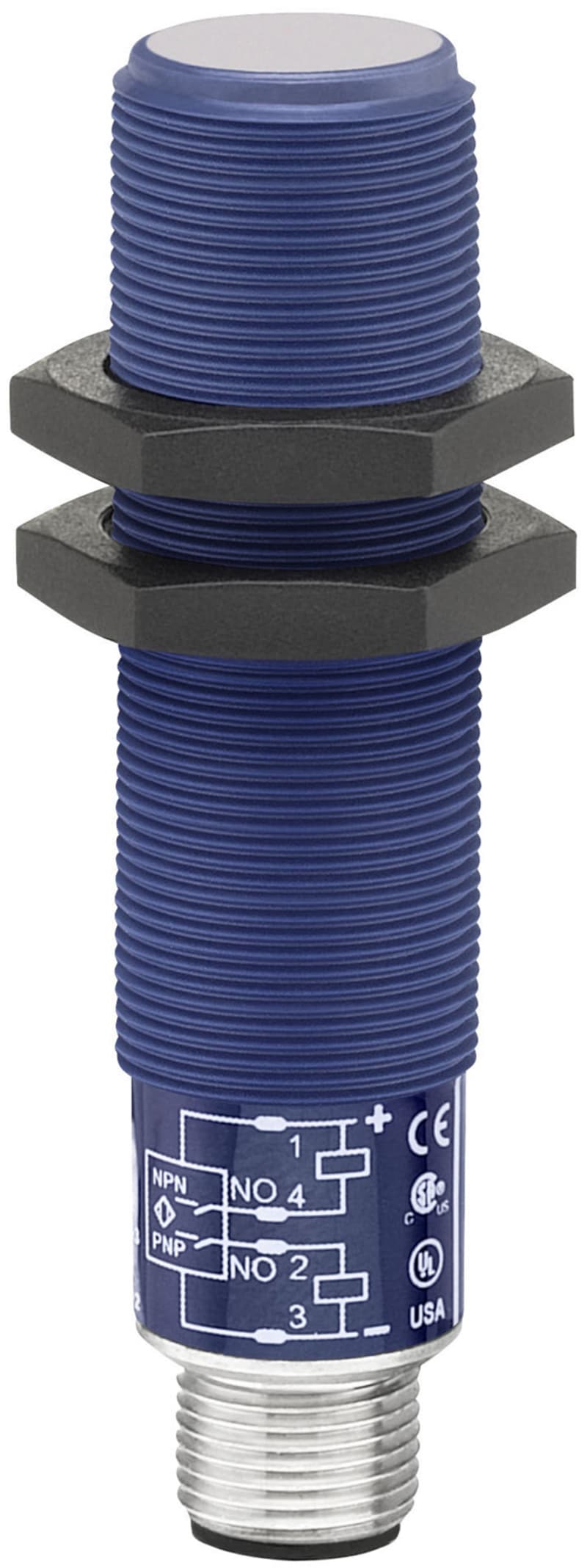

Telemecanique XXR18A4KAM12 Ultrasonic Sensor (Through-Beam Receiver) M18, PNP/NPN selectable, NO, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XXR18A4KAM12 ultrasonic sensor, through-beam receiver, M18 body, PNP/NPN selectable NO output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XXR18A4KAM12
- EAN / GTIN
- 3666916080252
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Voltage type
- DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Ambient temperature
- 0–60 °C
- Switching frequency
- 40 Hz
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/NPN
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 1000 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 40 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 0 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 65 mm
- Measuring range length
- 0–1000 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916080252
- SAP 1000342353
- Code 8991938
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL4MB40H196N Type 4 Safety Light Grille with Integrated Muting, 1960 mm protected height
Telemecanique
Telemecanique XUSL4E14F061NS1 Safety Light Curtain Type 4, Finger Detection (14 mm), 610 mm Height
Telemecanique
Telemecanique XCKD limit switch, metal body, M18 threaded plunger head, 1 NC + 1 NO, snap action with positive opening, M12 connector, IP66/IP67 XCKD21H2M12
Telemecanique
Telemecanique XMLR025G2N06 Pressure Sensor with Display, 0–25 bar, 2× NPN
Telemecanique

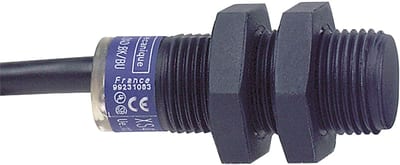

Telemecanique XS4P12PA340 Inductive Proximity Sensor, M12, M12 connector
Telemecanique

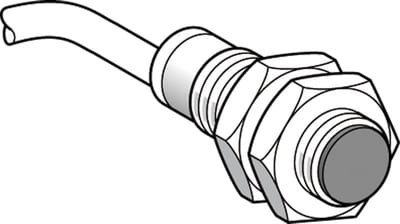

Telemecanique OsiSense XS4P18PC410 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NO or NC, pre-wired cable (2 m)
Telemecanique

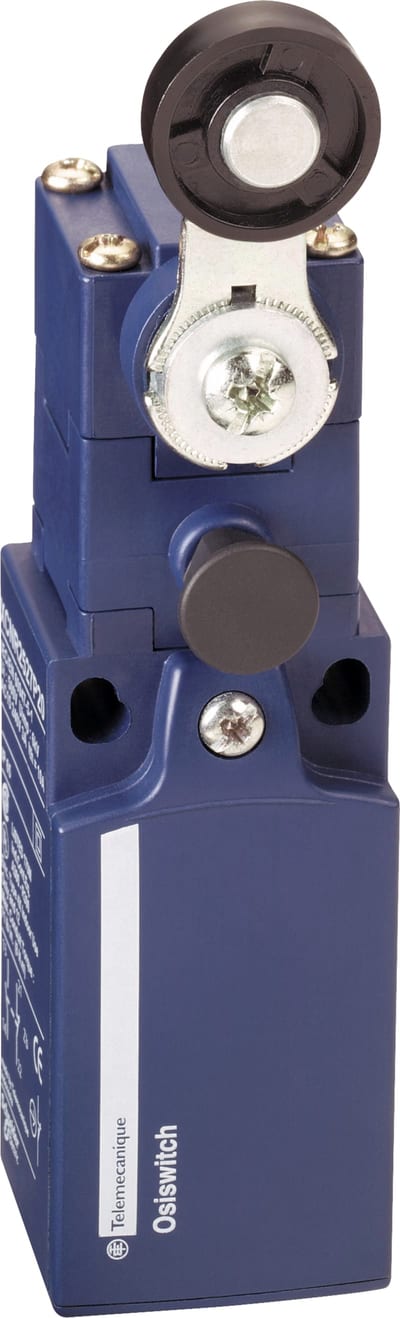

Limit switch, rotary roller/arm NO+NC M20 (XCNR2118P20)
Telemecanique

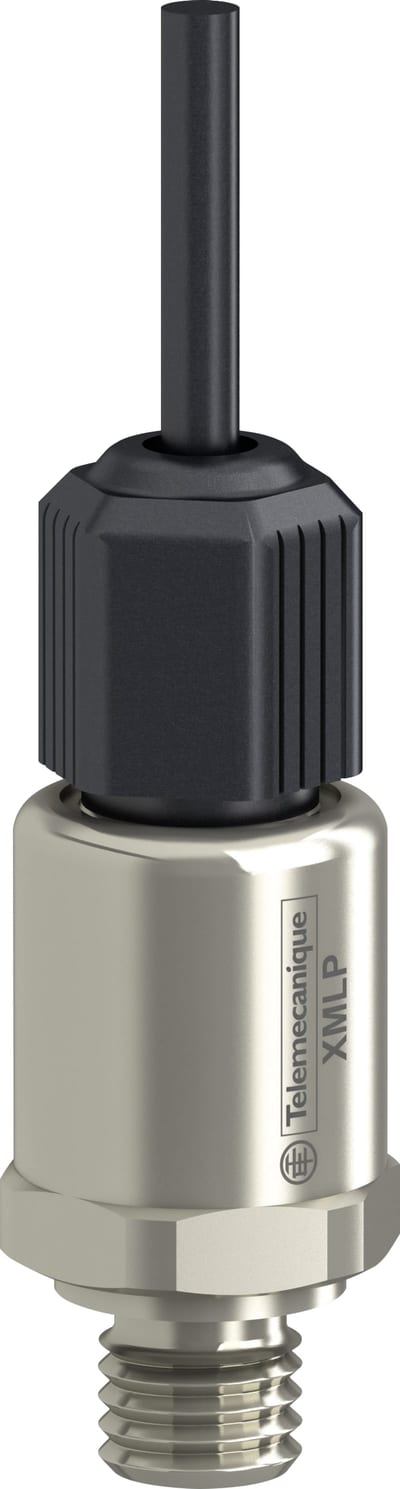

Telemecanique XMLPM00GL71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
