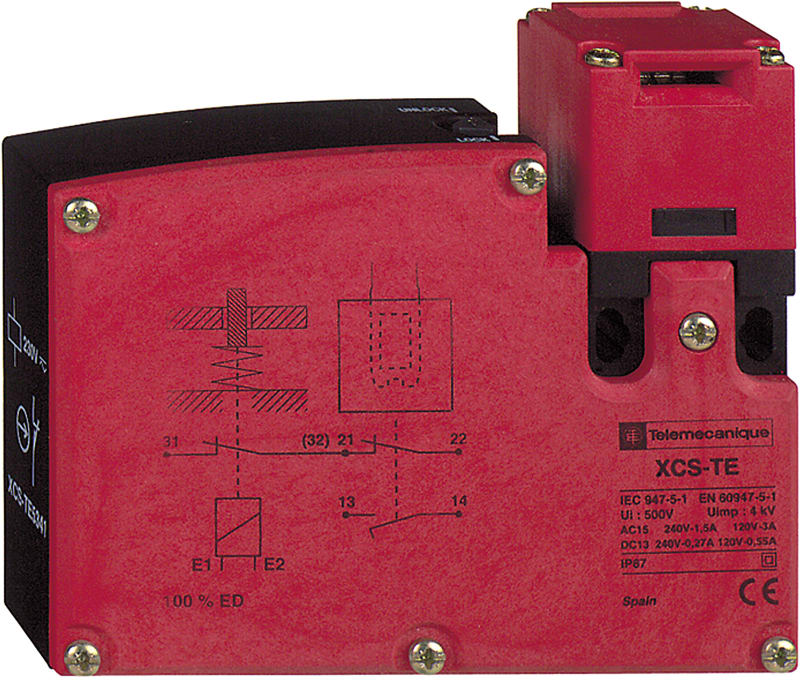

Telemecanique XCSTE7311 Safety Interlock Switch with Solenoid, 2NC, 24 V

Telemecanique XCSTE7311 is a safety interlock switch with a solenoid guard lock operating on the quiescent current principle, providing 2 normally closed slow-action contacts. Coil supply is 24 V AC/DC and cable entry is PG. The plastic housing offers IP67K protection with a 500 N locking force and operates from -25 to 60 degC. Country of origin is France.

Manufacturer part number (MPN)

XCSTE7311

EAN / GTIN

3666916046869

HS code

8536.90

Sales unit

pcs

Package quantity

22 pcs

Type of locking

Quiescent current principle

Rated operation current Ie at AC-15, 230 V

1.5 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Plastic

Suitable for safety functions

Yes

With status indication

Yes

Type of switching contact

Slow-action switch

Type of interface for safety communication

None

Type of electric connection

Cable entry PG

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP67K

Type of interface

None

Rated control supply voltage magnet drive AC 50 Hz

24 V

Rated control supply voltage magnet drive AC 60 Hz

24 V

Rated control supply voltage magnet drive DC

24 V

Rated operation current Ie at AC-15, 125 V

3 A

Rated operation current Ie at DC-13, 125 V

0.55 A

Width sensor

110 mm

With escape release

No

Height of sensor

94 mm

Length of sensor

33 mm

Ambient temperature during operating

-25–60 °C

Guard locking force

500 N

Number of contacts as normally closed contact

2

With auxiliary release

No

Type of guard locking

Quiescent current principle

Country of origin

France

HS Code

8536.90
