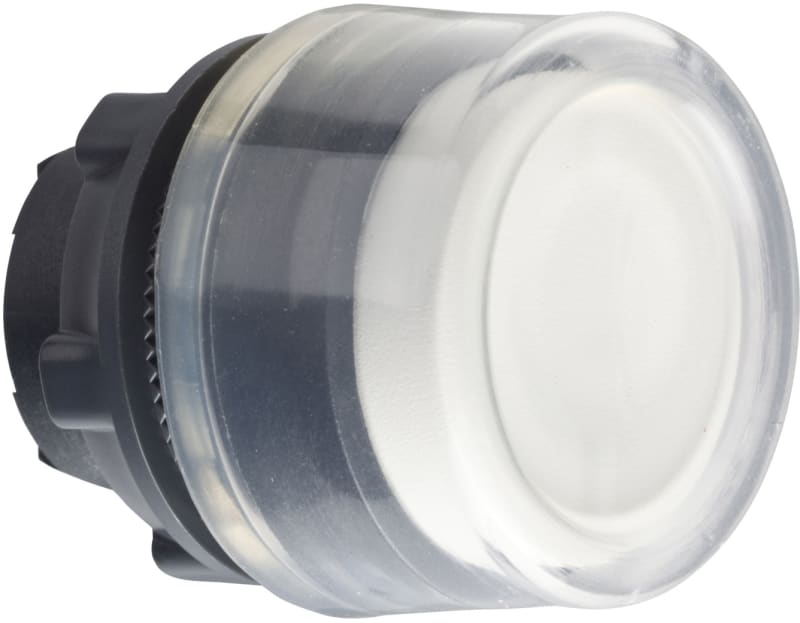

Telemecanique ZB5AP1 Pushbutton Head, White, for Harmony XB5 (plastic)
Pricing
Request a quote
We reply within 24 hours
Overview
Telemecanique ZB5AP1 Pushbutton Head, White, for Harmony XB5 (plastic) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 5 pcs; Range of product: Harmony XB5; Product or component type: Head for non-illuminated push-button; Device short name: ZB5; Product compatibility: Not compatible with legend holder.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AP1
- EAN / GTIN
- 3389110906622
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Product compatibility
- Not compatible with legend holder
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- White projecting, unmarked
- Operator additional information
- Clear boot
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 35 mm
- Product weight
- 0.014 kg
- Mechanical durability
- 10000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110906622
- SAP 1000256859
- Code 81143178
Product Documentation
More from Telemecanique
Telemecanique
PHOTOCELL,ANGLE,80X80,NO,PNP (XUVA0808PANM8)
Telemecanique
Telemecanique XMLP100PD730 Pressure Transmitter, 0–100 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Telemecanique
Telemecanique XUVA1515PANM8 Frame Photoelectric Sensor 150 × 150 mm, PNP NO, M8 connector
Telemecanique
Telemecanique XXA30B2VM12 Ultrasonic Sensor M30, Metal, 90° Head, 0–10 V, Range 2 m, M12 connector
Telemecanique
Telemecanique XUYFANEP100120 Infrared Fork Sensor 95 × 120 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XMEP250BT21F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XCSM safety limit switch, metal Zamak body, rotary head with steel roller lever, slow-break contacts, 2 NC + 1 NO with positive opening, 1 m pre-wired cable, IP68 XCSM3716L1
Telemecanique
Telemecanique XZCP0666L20 Sensor Cable, M8 female angled, 3-pin, 20 m
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB5AP1?
- ZB5AP1 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB5AP1.
- What is the HS code for ZB5AP1?
- The customs tariff (HS) code for ZB5AP1 is 8538.90.
- Who manufactures ZB5AP1?
- ZB5AP1 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB5AP1?
- Yes — the ZB5AP1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB5AP1?
- The minimum order quantity is 1.
- Is ZB5AP1 available?
- Yes — ZB5AP1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
