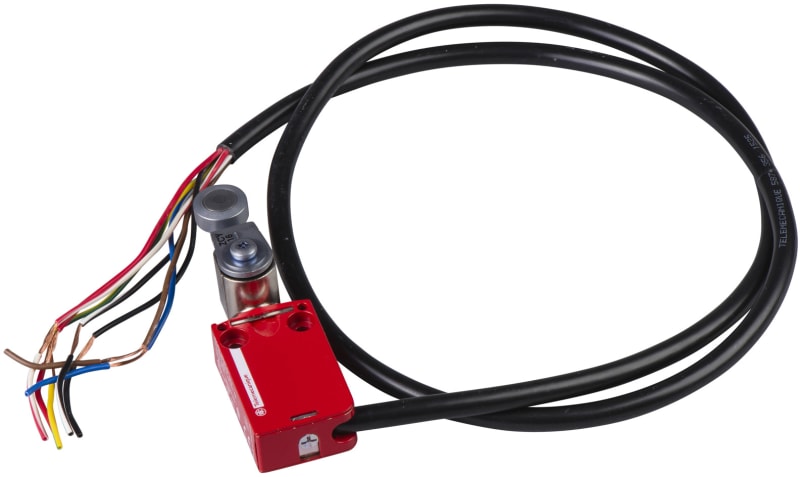

Telemecanique XCSM safety limit switch, metal Zamak body, rotary head with steel roller lever, slow-break contacts, 2 NC + 1 NO with positive opening, 1 m pre-wired cable, IP68 XCSM3716L1

Telemecanique XCSM3716L1 miniature safety limit switch from the XCSM range, for machine guard and interlock duty. Zamak (zinc alloy) body with a rotary head with steel roller lever, slow-break contacts, and a 2 NC + 1 NO contact block in which the NC contacts are positive opening to IEC 60947-5-1. Supplied pre-wired with a 1 m cable, so no cable gland or terminal work is needed. Sealed to IP68. This is a mechanically actuated switch: it has no solenoid and no guard locking.

Manufacturer part number (MPN)

XCSM3716L1

EAN / GTIN

3666916046661

HS code

8536.90

Sales unit

pcs

Package quantity

45 pcs

Type of locking

Operating current principle

Rated operation current Ie at AC-15, 230 V

1.5 A

Rated operation current Ie at DC-13, 230 V

0.1 A

Housing material

Metal

Suitable for safety functions

Yes

With status indication

No

Type of switching contact

Slow-action switch

Type of interface for safety communication

None

Type of electric connection

With cable preassembled

Explosion safety category for gas

None

Degree of protection (IP)

IP68

Type of interface

None

Rated control supply voltage magnet drive AC 50 Hz

240 V

Rated control supply voltage magnet drive AC 60 Hz

240 V

Rated control supply voltage magnet drive DC

250 V

Width sensor

30 mm

With escape release

No

Height of sensor

94 mm

Length of sensor

34 mm

Ambient temperature during operating

-25–70 °C

Guard locking force

0.1 N

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

1

With auxiliary release

No

Type of guard locking

Quiescent current principle

Country of origin

Indonesia

HS Code

8536.90
