Telemecanique OsiSense XS218B4PBM12 Inductive Proximity Sensor — M18 barrel, Sn 16 mm, PNP, NC, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS218B4PBM12 is an OsiSense XS inductive proximity sensor in an M18 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 16 mm and a non-flush (unshielded) sensing face. It provides a PNP (3-wire DC) output, switching NC (normally closed), via M12 connector (4-pin). Rated supply 24 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS218B4PBM12
- EAN / GTIN
- 3666916015735
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M18 cylindrical threaded barrel (Nickel-plated brass)
- Mounting
- non-flush (unshielded)
- Nominal sensing distance Sn
- 16 mm
- Output
- PNP (3-wire DC)
- Switching function
- NC (normally closed)
- Connection
- M12 connector (4-pin)
- Rated supply voltage
- 24 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 22 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916015735
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCP0566L15 Sensor Cable, M8 female straight, 3-pin, PUR, 15 m
Telemecanique
Telemecanique XCSDMP59110 Coded Magnetic Safety Switch, 2 NC, with LED
Telemecanique
Telemecanique XZCP1164L5 Sensor Cable, M12 female straight, 5-pin, 5 m
Telemecanique
Telemecanique XUSL4E14F061NWH Safety Light Curtain Type 4, Finger Detection (14 mm), 610 mm Height
Telemecanique

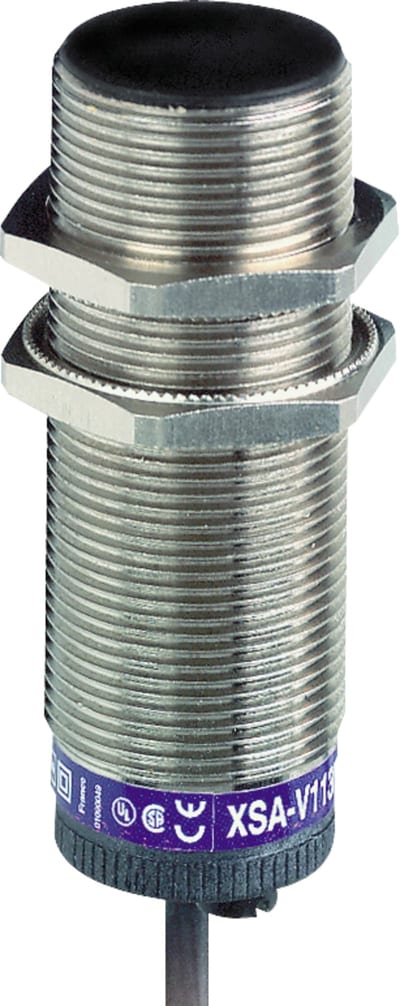

Telemecanique XSAV11373TFEX Rotation Monitor (Under-Speed Detector) M30, 12–48 V, Ex Version
Telemecanique

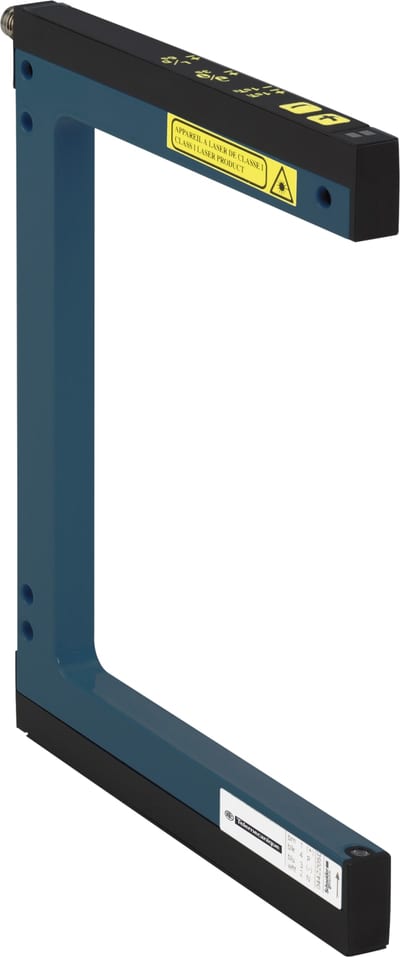

Telemecanique XUYFALNEP60030 Laser Fork Sensor 59 × 30 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XZCR1511040A1 Sensor Cable, M12 to M12
Telemecanique

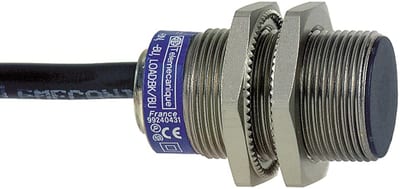

Telemecanique OsiSense XS1N18PA349L1 Inductive Proximity Sensor — M18 barrel, Sn 10 mm, PNP, NO, pre-wired cable
