Telemecanique OsiSense XS1N18PA349L1 Inductive Proximity Sensor — M18 barrel, Sn 10 mm, PNP, NO, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description

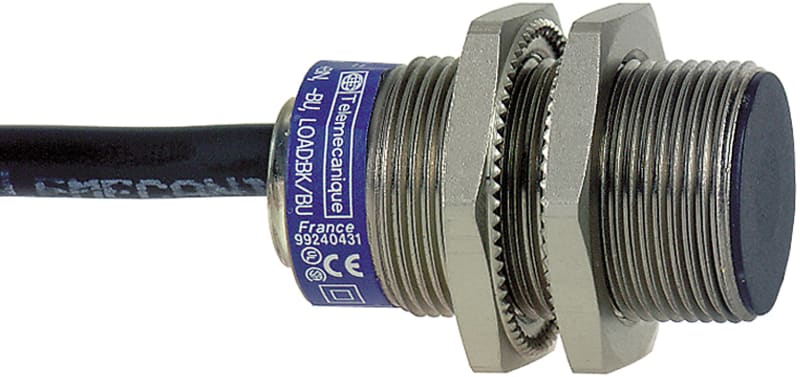

Telemecanique XS1N18PA349L1 is an OsiSense XS inductive proximity sensor in an M18 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 10 mm. It provides a PNP (3-wire DC) output, switching NO (normally open), via pre-wired cable. Rated supply 12…24 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS1N18PA349L1
- EAN / GTIN
- 3666916016206
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M18 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 10 mm
- Output
- PNP (3-wire DC)
- Switching function
- NO (normally open)
- Connection
- pre-wired cable
- Rated supply voltage
- 12…24 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 14 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916016206
Product Documentation
More from Telemecanique
Telemecanique
Bracket with Angle F/XX630/930
XXZ30
Telemecanique
Telemecanique XS118B3PAM12 Inductive Proximity Sensor Ø18 mm, Threaded, PNP NO, M12 connector
Telemecanique
Telemecanique XZCPV1564L1 Sensor Cable, M12 male, 5-pin, PVC, 1 m
Telemecanique
Telemecanique XUYFALNEP100015 Laser Fork Sensor 95 × 15 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XZCC23FCM190S Field-Wireable Connector, M23, Female, Angled, 19-pin, Metal
Telemecanique
Telemecanique OsiSense XS130BHPBM12 Inductive Proximity Sensor — M12 barrel, Sn 15 mm, PNP, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XMLP016BD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XUYPS2CO945S Photoelectric Sensor, Background Suppression, 2-Channel, M8 connector
Technical guides
- Inductive Proximity Sensor Cross-Reference — Telemecanique OsiSense XS, Carlo Gavazzi ICB, Omron E2E, Eaton E57, Turck, Pepperl+Fuchs by Housing, Sensing Distance and Output
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS1N18PA349L1?
- XS1N18PA349L1 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS1N18PA349L1.
- What is the HS code for XS1N18PA349L1?
- The customs tariff (HS) code for XS1N18PA349L1 is 8536.50.
- Who manufactures XS1N18PA349L1?
- XS1N18PA349L1 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS1N18PA349L1?
- Yes — the XS1N18PA349L1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS1N18PA349L1?
- The minimum order quantity is 1.
- Is XS1N18PA349L1 available?
- Yes — XS1N18PA349L1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
