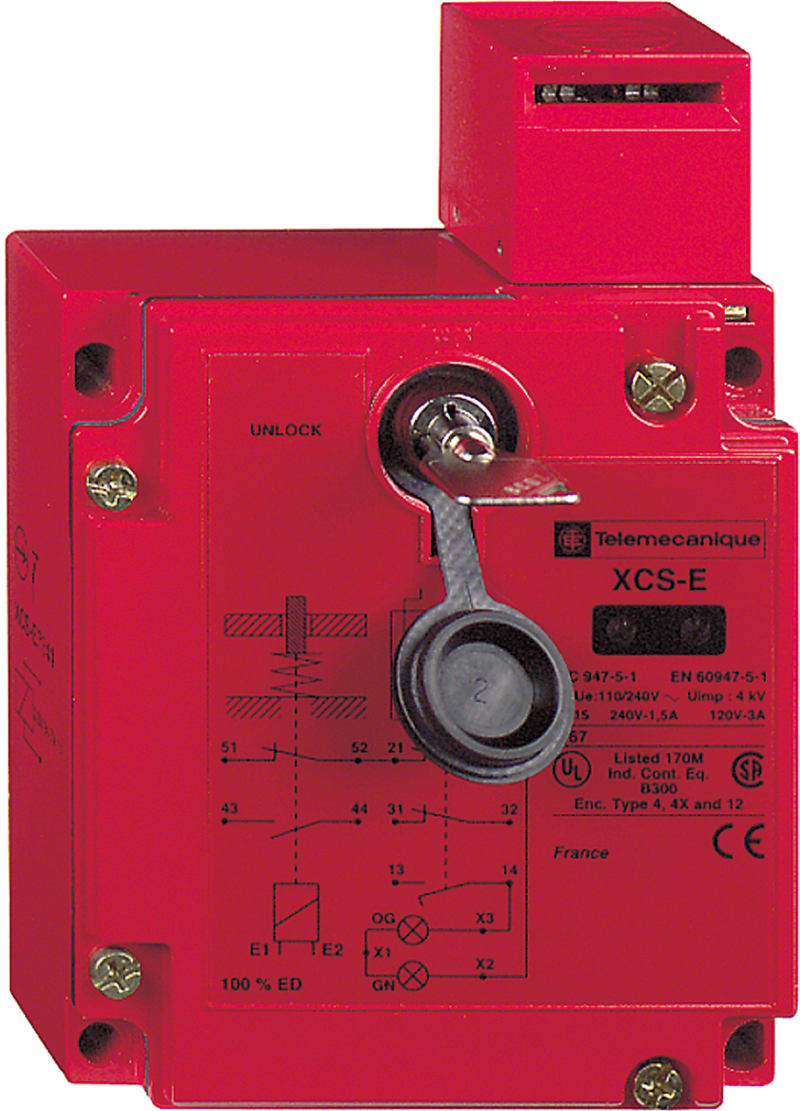

Telemecanique XCSE8312 Safety Limit Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSE8312 safety limit switch with positive opening contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSE8312
- EAN / GTIN
- 3666916048382
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 24 V
- Rated control supply voltage magnet drive AC 60 Hz
- 24 V
- Rated control supply voltage magnet drive DC
- 24 V
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 98 mm
- With escape release
- No
- Height of sensor
- 146 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–70 °C
- Guard locking force
- 2000 N
- Number of contacts as normally open contact
- 3
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916048382
- SAP 1000342427
- Code 81106789
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCC12FDM80B Field-Wireable Connector, M12, Female, Straight
Telemecanique

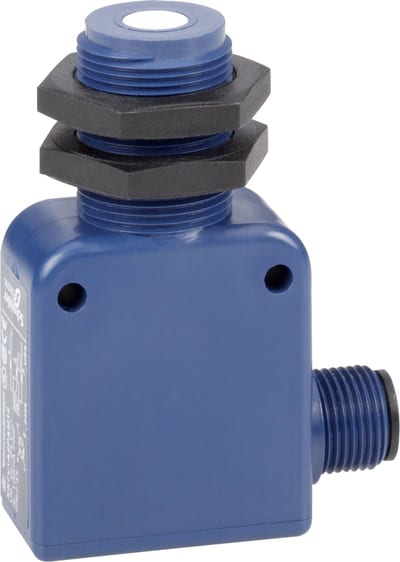

Telemecanique XX9V1A1C2M12 Ultrasonic Sensor, 18 × 33 mm Block, Sn 0.5 m, 4–20 mA, M12 connector
Telemecanique
RFID TAG 13.56MHz 26X26 256B
XGHB221346
Telemecanique

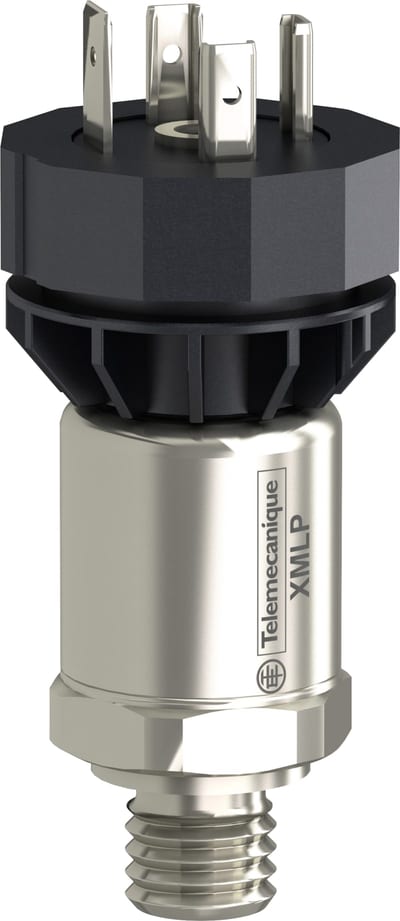

Telemecanique XMLP010BC21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
