Telemecanique XCSMP59L2 Key-Operated Safety Interlock Switch, NC+NO, Plastic, 2 m Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSMP59L2 key-operated safety interlock switch, 1 NC + 1 NO slow-break contacts, plastic body, pre-wired 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XCSMP59L2
- EAN / GTIN
- 3666916047439
- HS code
- 8544.42
- Sales unit
- pcs
- Contact configuration
- NC + NO
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 0.75 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 240 V
- Rated control supply voltage magnet drive AC 60 Hz
- 240 V
- Rated control supply voltage magnet drive DC
- 250 V
- Rated operation current Ie at AC-15, 125 V
- 1.5 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 15 mm
- With escape release
- No
- Height of sensor
- 87 mm
- Length of sensor
- 30 mm
- Ambient temperature during operating
- -25–70 °C
- Guard locking force
- 8 N
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3666916047439
- SAP 1000257430
- Code 81143428
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCC12FCM50B Field-Wireable Connector, M12, Female, Angled, 5-pin, Metal
Telemecanique

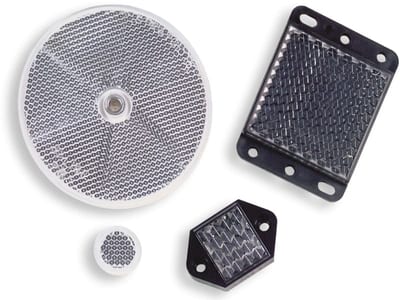

Telemecanique XUZC31 Reflector, Ø31 mm, for Photoelectric Sensors
Telemecanique

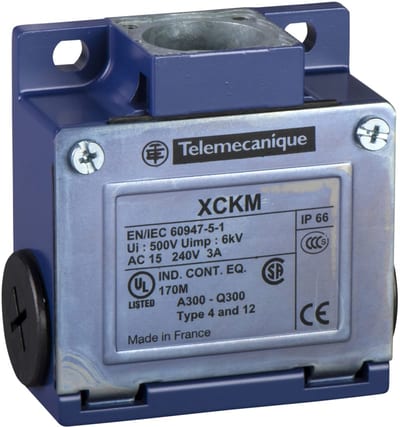

Telemecanique ZCKM7 Limit Switch Body for ZCK Limit Switches
Telemecanique
Telemecanique XCSLE2525312 Safety Limit Switch, 2 NO + 2 NC
Telemecanique

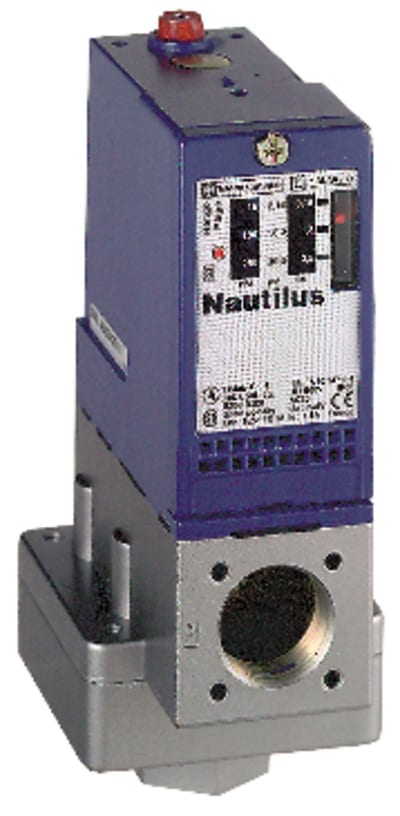

Telemecanique XMLA002A2S12 Pressure Switch, 0–2.5 bar
Telemecanique

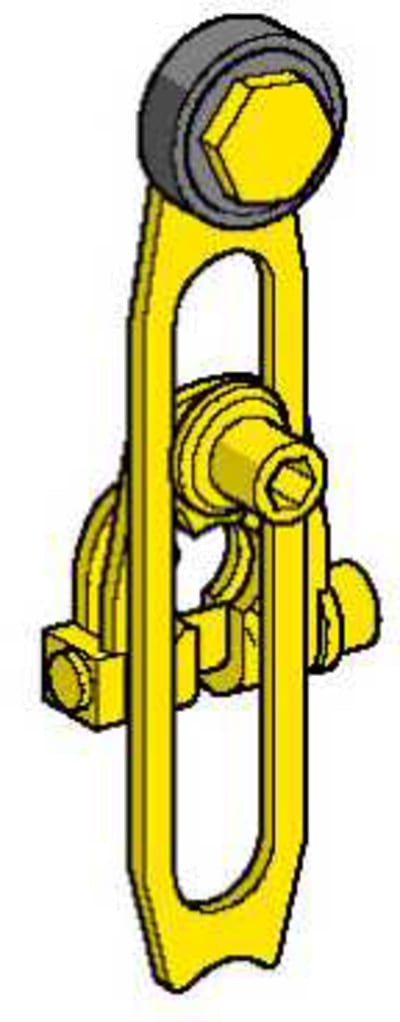

Telemecanique ZC2JY31 Limit Switch Operating Lever, Roller lever
Telemecanique
Telemecanique XCSPA591 Safety Limit Switch, 1 NC + 1 NO
Telemecanique

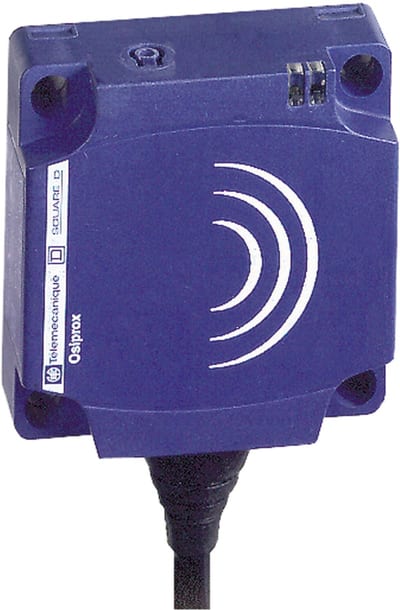

Telemecanique OsiSense XS8C1A1PAL5 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, PNP, NO, pre-wired cable
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSMP59L2?
- XCSMP59L2 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSMP59L2.
- What is the HS code for XCSMP59L2?
- The customs tariff (HS) code for XCSMP59L2 is 8544.42.
- Who manufactures XCSMP59L2?
- XCSMP59L2 is a Telemecanique product in the Tools range.
- Is a datasheet available for XCSMP59L2?
- Yes — the XCSMP59L2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSMP59L2?
- The minimum order quantity is 1.
- Is XCSMP59L2 available?
- Yes — XCSMP59L2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
