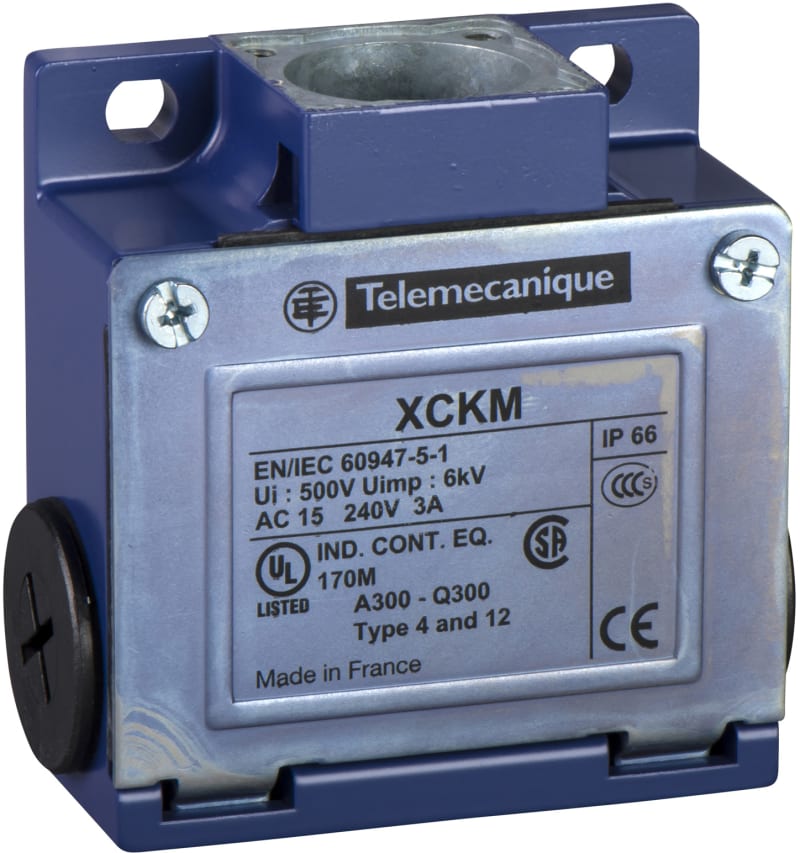

Telemecanique ZCKM7 Limit Switch Body for ZCK Limit Switches
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKM7 limit switch body (contact body) for ZCK limit switches; combine with a ZCKD/ZCKE operating head.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKM7
- EAN / GTIN
- 3666916043653
- HS code
- 8536.90
- Sales unit
- pcs
- Switching function
- Slow-action switch with overlapping
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 64 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916043653
- SAP 1000074348
- Code 8564931
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCSLE2525312 Safety Limit Switch, 2 NO + 2 NC
Telemecanique
Telemecanique XMLA002A2S12 Pressure Switch, 0–2.5 bar
Telemecanique
Telemecanique ZC2JY31 Limit Switch Operating Lever, Roller lever
Telemecanique
Telemecanique XCSPA591 Safety Limit Switch, 1 NC + 1 NO
Telemecanique
Telemecanique OsiSense XS8C1A1PAL5 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique ZB5AW563 Illuminated Pushbutton Head, Blue, for LED Module, Harmony XB5 (plastic)
Telemecanique

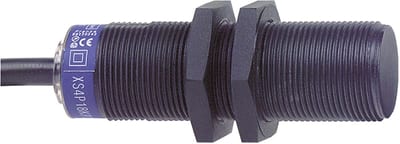

Telemecanique XS4P18MA230 Inductive Proximity Sensor, M18, 2 m cable
Telemecanique

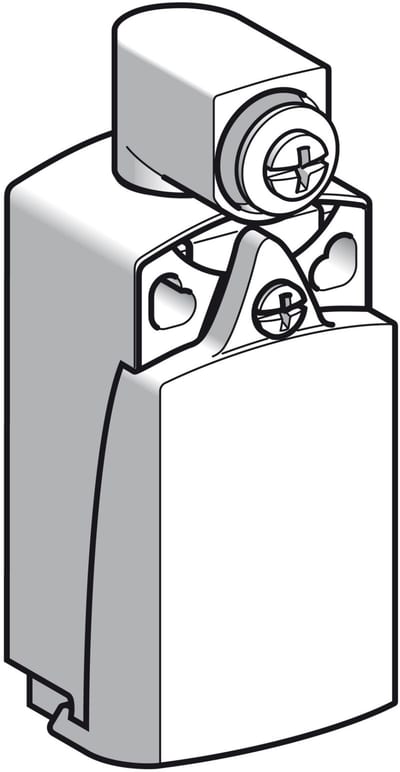

Telemecanique XCKP2101G11 Operating Head for ZCK Limit Switches
