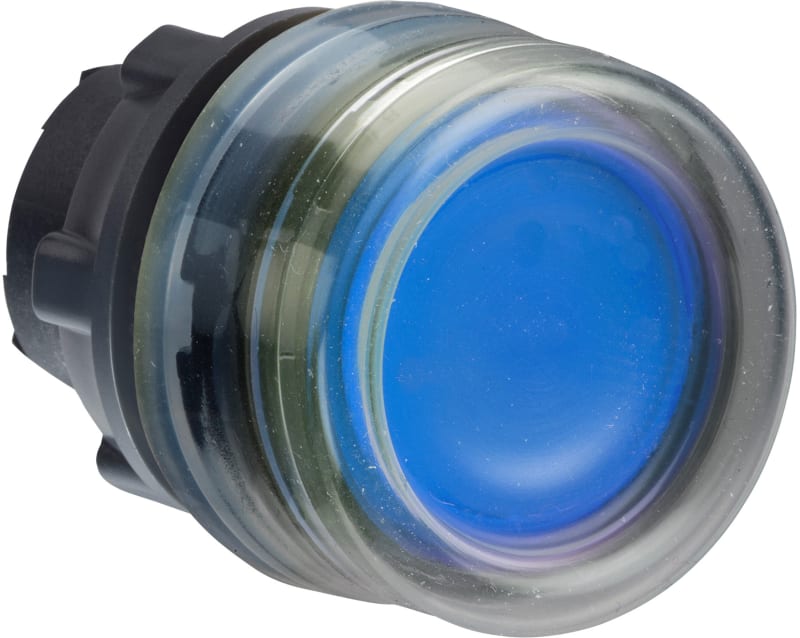

Telemecanique ZB5AW563 Illuminated Pushbutton Head, Blue, for LED Module, Harmony XB5 (plastic)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB5AW563 illuminated pushbutton head, blue, for LED lamp module, Harmony XB5 (plastic) Ø22 mm operators.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AW563
- EAN / GTIN
- 3389110924077
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for illuminated push-button
- Device short name
- ZB5
- Product compatibility
- Universal LED
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Head type
- Standard
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Blue flush, unmarked
- Operator additional information
- Clear boot
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 37 mm
- Product weight
- 0.019 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mechanical durability
- 10000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Cap/operator or lens colour
- Blue
- Marking
- Unmarked
- Electrical composition code
- M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110924077
- SAP 1000260747
- Code 81146300
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XS4P18MA230 Inductive Proximity Sensor, M18, 2 m cable
Telemecanique
Telemecanique XCKP2101G11 Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique XZCR1509040H2 Sensor Cable, M12 to M12
Telemecanique
Telemecanique ZCE28 Roller Lever Operating Head for XC Standard Limit Switches
Telemecanique
Telemecanique XCKP2128G11 Limit Switch, PG11 entry
Telemecanique
Telemecanique XCSLF2725342 Guard-Locking Safety Switch 230 V, 3 NC + NO, Metal
Telemecanique
Telemecanique XUX0AKSAT16 Multimode Photoelectric Sensor, Plastic, PNP/NPN selectable, Screw terminals
Telemecanique
Telemecanique XMPC06C2374N30 Power Pressure Switch 1-6 bar, G 1/4 Fluid Port
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB5AW563?
- ZB5AW563 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB5AW563.
- What is the HS code for ZB5AW563?
- The customs tariff (HS) code for ZB5AW563 is 8538.90.
- Who manufactures ZB5AW563?
- ZB5AW563 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB5AW563?
- Yes — the ZB5AW563 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB5AW563?
- The minimum order quantity is 1.
- Is ZB5AW563 available?
- Yes — ZB5AW563 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
