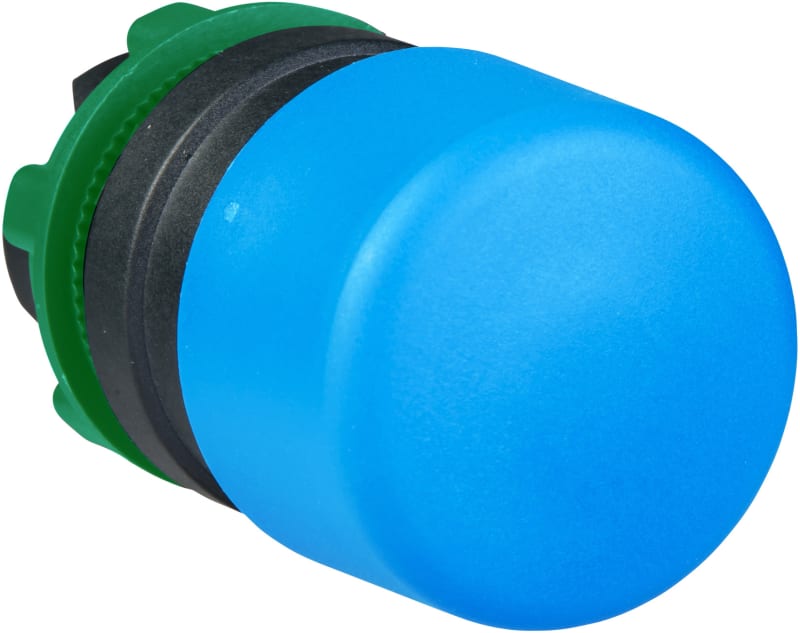

Mushroom Push Button BLUE Ø30mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Loose selector switches and toggle switches in the XB5 series, plastic. Can also be used in XALK boxes.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AC64
- EAN / GTIN
- 3389110904956
- Sales unit
- pcs
- Diameter
- 30 mm
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Head type
- Standard
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Blue mushroom Ø 30 mm, unmarked
- Device presentation
- Basic element
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 52 mm
- Product weight
- 0.027 kg
- Mechanical durability
- 5000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mou
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110904956
- SAP 1000471483
- Code 8120720
Product Documentation
More from Telemecanique
Telemecanique

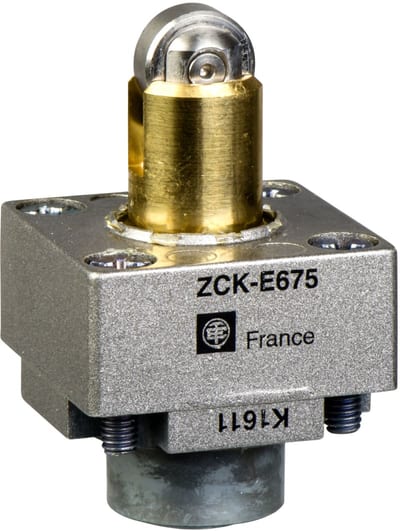

Telemecanique ZCKE67 Limit Switch Operating Head, Roller cam
Telemecanique
Telemecanique XCSMP59L2 Key-Operated Safety Interlock Switch, NC+NO, Plastic, 2 m Cable
Telemecanique
Telemecanique XZCC12FCM50B Field-Wireable Connector, M12, Female, Angled, 5-pin, Metal
Telemecanique
Telemecanique XUZC31 Reflector, Ø31 mm, for Photoelectric Sensors
Telemecanique
Telemecanique ZCKM7 Limit Switch Body for ZCK Limit Switches
Telemecanique
Telemecanique XCSLE2525312 Safety Limit Switch, 2 NO + 2 NC
Telemecanique
Telemecanique XMLA002A2S12 Pressure Switch, 0–2.5 bar
Telemecanique
Telemecanique ZC2JY31 Limit Switch Operating Lever, Roller lever
Technical guides
- 22 mm Pushbutton and Pilot Light Cross-Reference — Schneider Harmony XB4 / XB5, Siemens SIRIUS ACT 3SU1, Eaton M22 / RMQ-Titan, ABB by Function and Colour
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZB5AC64?
- ZB5AC64 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZB5AC64.
- What is the HS code for ZB5AC64?
- The customs tariff (HS) code for ZB5AC64 is 8538.90.
- Who manufactures ZB5AC64?
- ZB5AC64 is a Telemecanique product in the Control & Automation range.
- Is a datasheet available for ZB5AC64?
- Yes — the ZB5AC64 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZB5AC64?
- The minimum order quantity is 1.
- Is ZB5AC64 available?
- Yes — ZB5AC64 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
