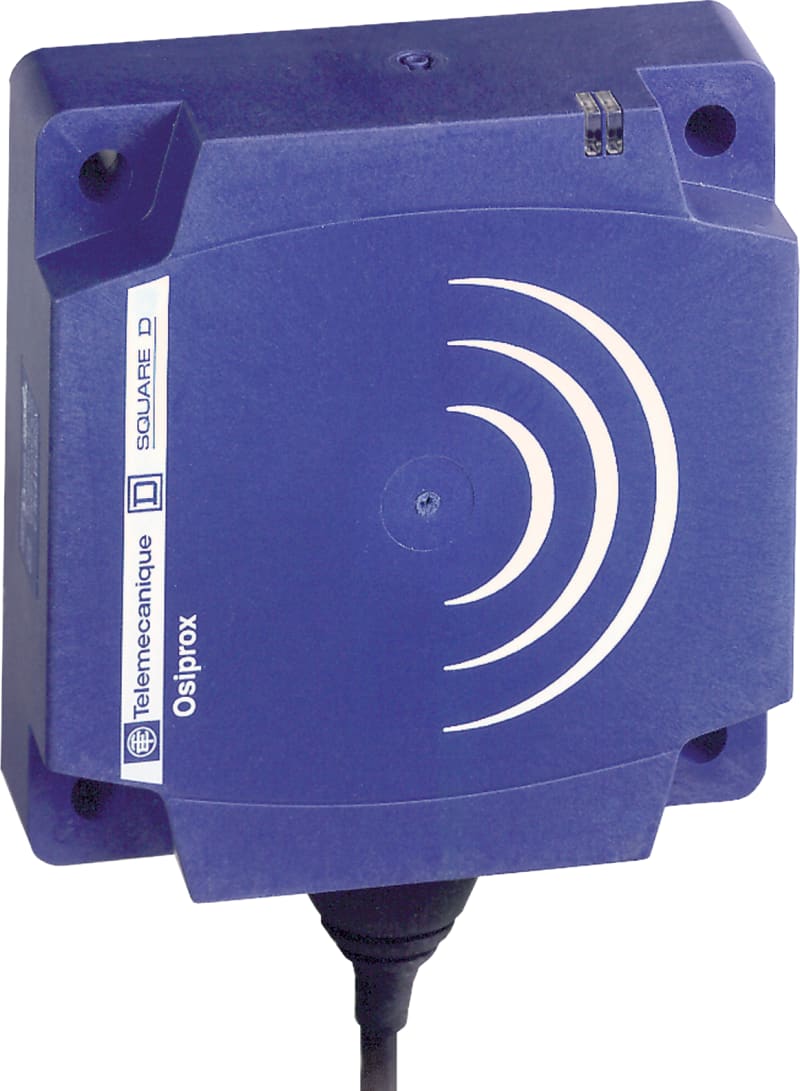

Telemecanique OsiSense XS8D1A1MBL10 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, 2-Wire AC/DC, NC, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS8D1A1MBL10 is an OsiSense XS inductive proximity sensor in a 80 × 80 mm PBT thermoplastic rectangular block housing, with a nominal sensing distance (Sn) of 60 mm. It provides a 2-wire AC/DC output, switching NC (normally closed), via pre-wired cable. Rated supply 24…240 V AC/DC, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS8D1A1MBL10
- EAN / GTIN
- 3666916009796
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- 80 × 80 mm rectangular block housing (PBT thermoplastic)
- Nominal sensing distance Sn
- 60 mm
- Output
- 2-wire AC/DC
- Switching function
- NC (normally closed)
- Connection
- pre-wired cable
- Rated supply voltage
- 24…240 V AC/DC
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 7 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- PBT thermoplastic
- Temperature Range
- -25 °C to +70 °C
- HS Code
- 8536.50
