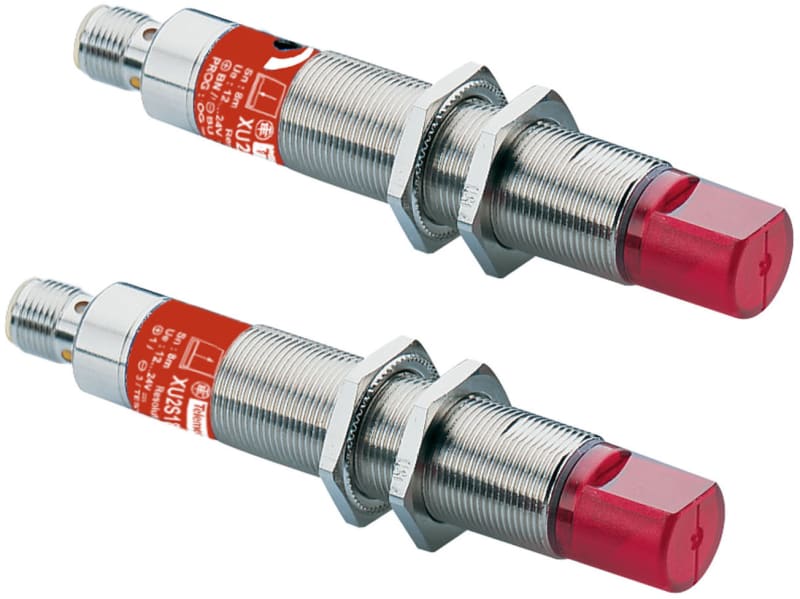

Telemecanique XU2S18PP340WD Photoelectric Through-Beam Set Ø18 mm, 90° Optics, Sn 8 m, M12 Connectors
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XU2S18PP340WD photoelectric through-beam emitter and receiver set, Ø18 mm with 90° optics, sensing distance 8 m, M12 connectors.
Technical Specifications
- Manufacturer part number (MPN)
- XU2S18PP340WD
- EAN / GTIN
- 3666916028957
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. opening angle
- 90 °
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 8000 mm
- Max. switching distance
- 8000 mm
- Max. output current
- 35 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Sensing mode
- Light switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 35 mA
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Transmission range of the safety field
- 8 m
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028957
- SAP 1000341680
- Code 8976280
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL4E30H091NS1 Safety Light Curtain Type 4, Hand Detection (30 mm), 910 mm Height
Telemecanique
Telemecanique ZB4BP383 Pushbutton Head, Green, Booted (Protective Cap), for Harmony XB4 (metal)
Telemecanique

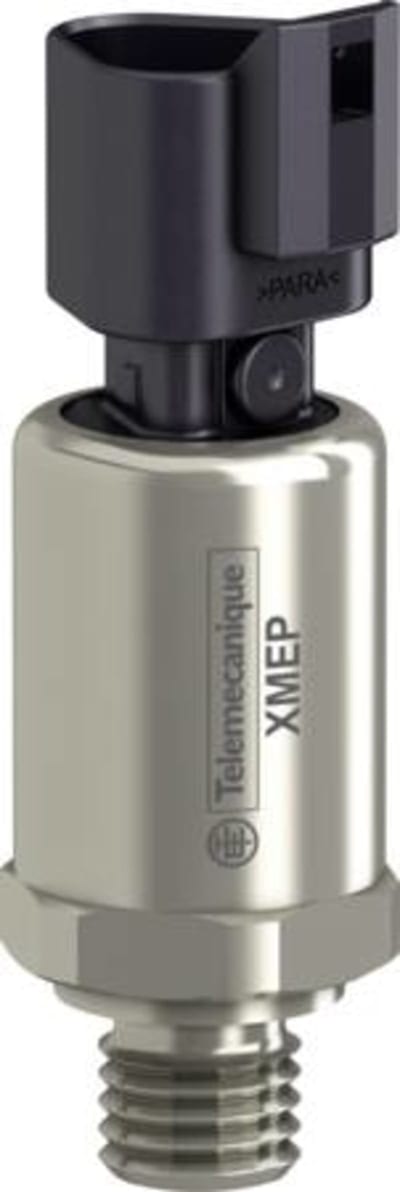

Telemecanique XMEP3K0PT130 Pressure Transmitter 3000 psi, 1/4" NPT, 0.5–4.5 V
