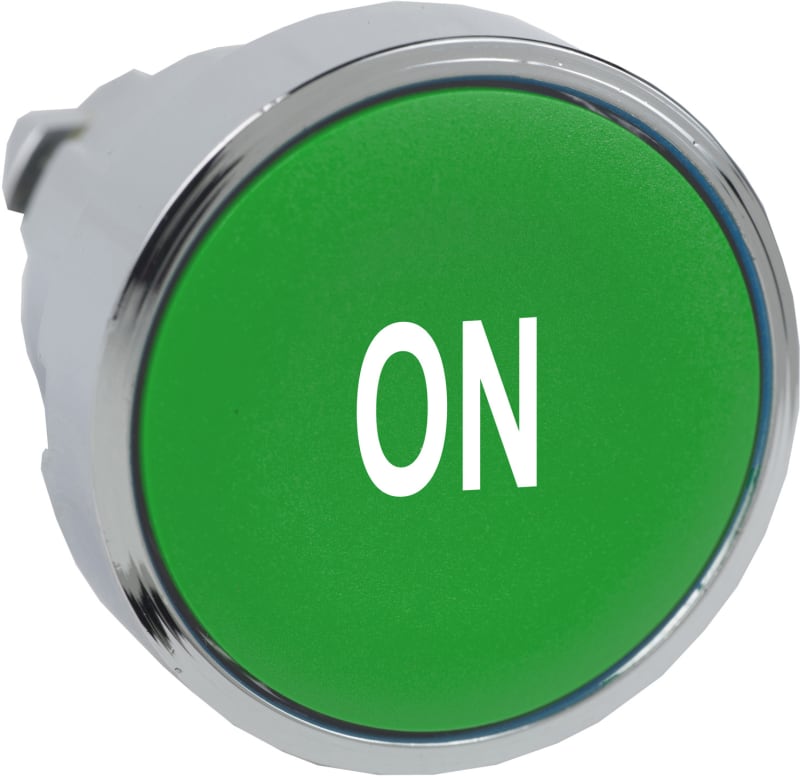

Telemecanique ZB4BP383 Pushbutton Head, Green, Booted (Protective Cap), for Harmony XB4 (metal)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB4BP383 pushbutton head, green, with protective rubber boot, for Harmony XB4 (metal) Ø22 mm operators.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4BP383
- EAN / GTIN
- 3389110109863
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range of product
- Harmony XB4
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB4
- Product compatibility
- legend holder
- Bezel material
- Chromium plated metal
- Mounting diameter
- 22.5 mm
- Sale per indivisible quantity
- 1
- Head type
- Standard
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Green flush, unmarked
- Operator additional information
- Clear membrane for insertion of protected legend within head
- Cap/operator or lens colour
- Green
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 32 mm
- Mechanical durability
- 10000000 cycles
- Electrical composition code
- C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C14 for <2 contacts using single blocks in front mounting
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67; IP69; IP69K
- Enclosure Type
- UL type 4X/13
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- UL 508; IEC 60947-5-4; IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-5-5; JIS C8201-5-1; JIS C8201-1
- Product certifications
- BV; CSA; DNV; LROS (Lloyds register of shipping); UL listed
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 50
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Colour button
- Green
- Suitable for lighting
- No
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP66
- With protective cover
- No
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110109863
- SAP 1000471198
- Code 8116100
Product Documentation
