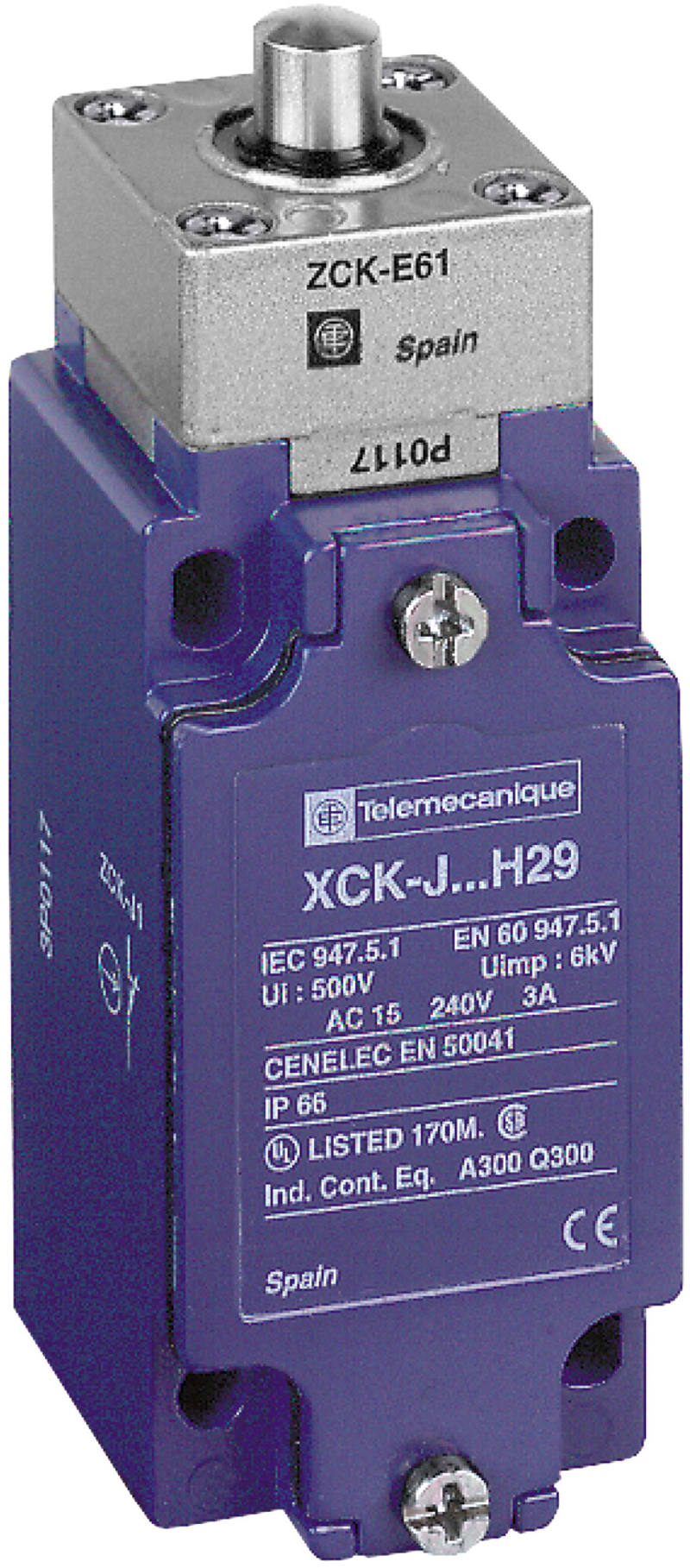

Telemecanique XCKJ161H29 Limit Switch, Metal Plunger, 1 NO + 1 NC, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKJ161H29 limit switch (position switch), metal plunger actuator, 1 NO + 1 NC contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKJ161H29
- EAN / GTIN
- 3666916056073
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Contact configuration
- NO + NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Width sensor
- 40 mm
- Height of sensor
- 77 mm
- Length of sensor
- 44 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916056073
- SAP 1000066069
- Code 8736585
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XXS18S1VM12 Ultrasonic Sensor, M18, 0–10 V, M12 connector
Telemecanique
Schneider Electric Complete body/contact assembly, Harmony XB4, Single contact block with body/fixing collar, metal, screw clamp terminal, 2 NO ZB4BZ107
Telemecanique
Telemecanique XMLA160D2C11 Pressure Switch, 10–160 bar, DIN connector
Telemecanique

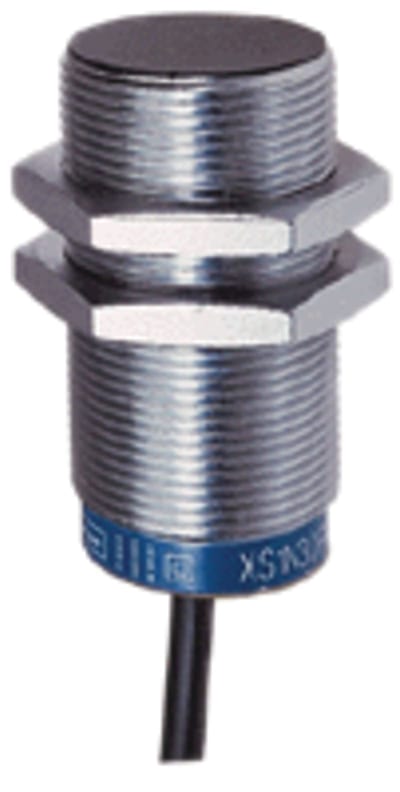

Telemecanique OsiSense XS1M30MA250 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, 2-Wire AC/DC, NO, pre-wired cable (2 m)
Telemecanique

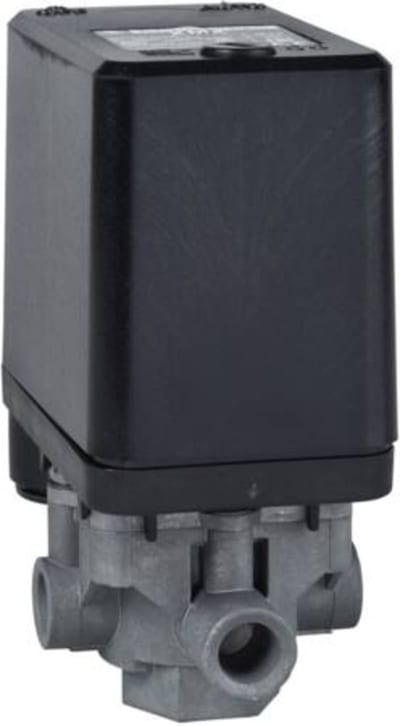

Telemecanique XMXA25L2135 Pressure Switch 3.5–25 bar, Internally Adjustable, Black Cover
Telemecanique
Telemecanique XMLG006D21 Pressure Transmitter, 0–6 bar, 4–20 mA
Telemecanique

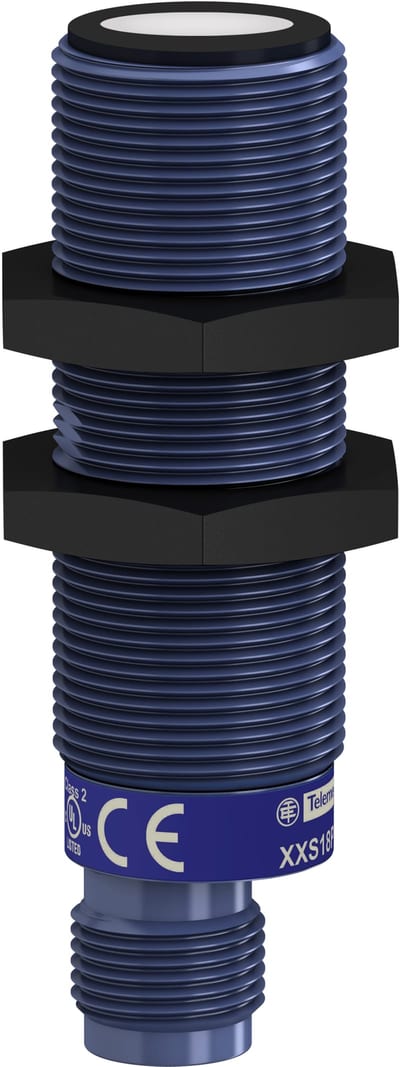

Telemecanique XXS18P1VM12 Ultrasonic Sensor, M18, Sn 1 m, 0–10 V, M12 connector
Telemecanique

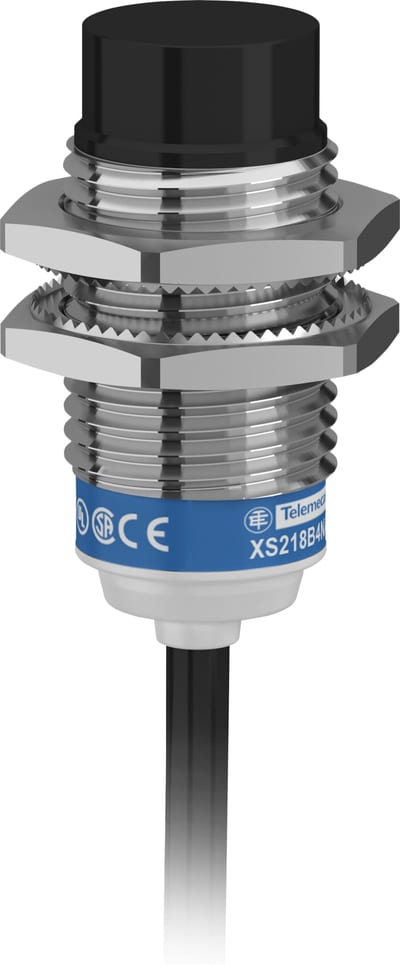

Telemecanique OsiSense XS218B4PBL2 Inductive Proximity Sensor — M18 barrel, Sn 16 mm, PNP, NC, pre-wired cable (2 m)
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCKJ161H29?
- XCKJ161H29 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCKJ161H29.
- What is the HS code for XCKJ161H29?
- The customs tariff (HS) code for XCKJ161H29 is 8536.90.
- Who manufactures XCKJ161H29?
- XCKJ161H29 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XCKJ161H29?
- Yes — the XCKJ161H29 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCKJ161H29?
- The minimum order quantity is 1.
- Is XCKJ161H29 available?
- Yes — XCKJ161H29 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
