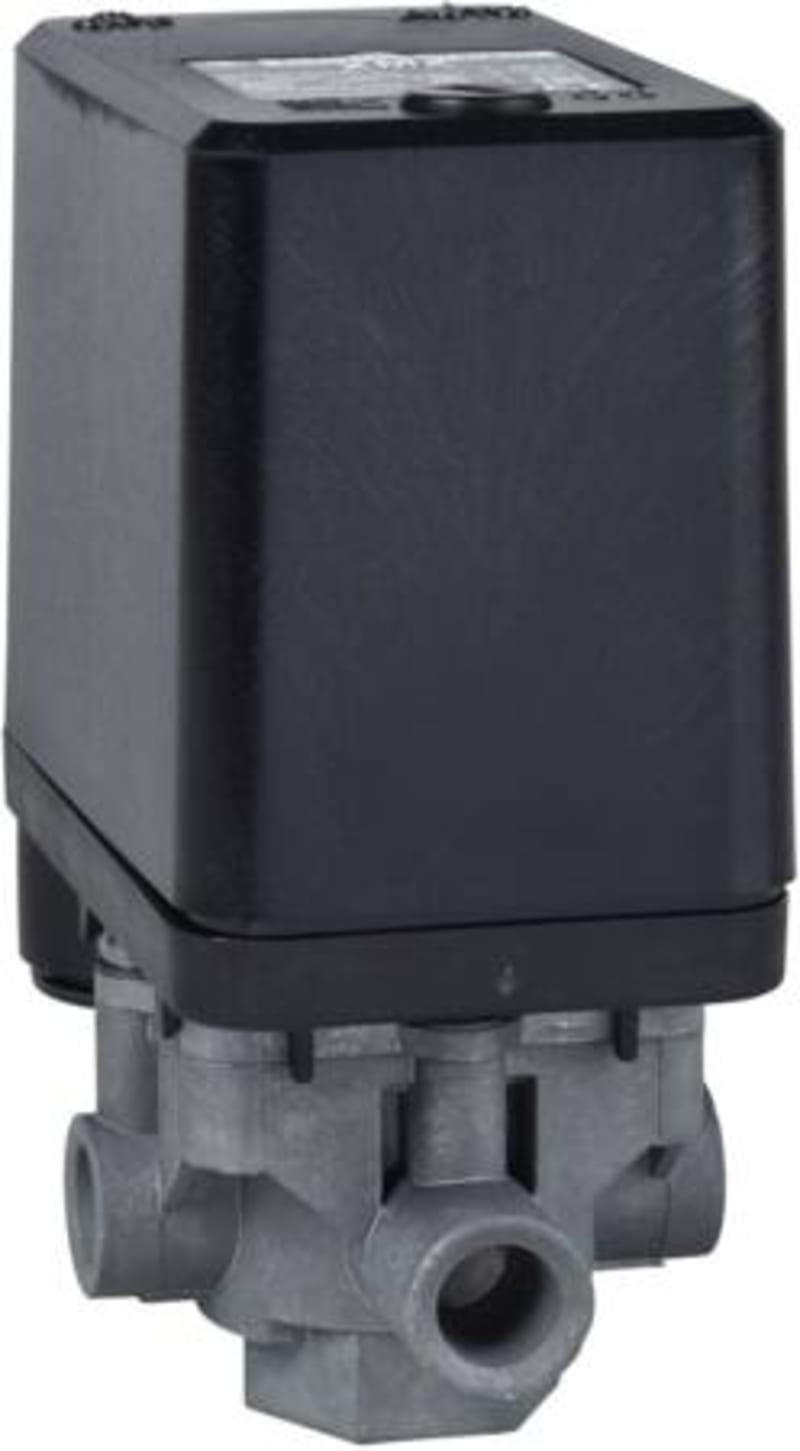

Telemecanique XMXA25L2135 Pressure Switch 3.5–25 bar, Internally Adjustable, Black Cover
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XMXA25L2135 pressure switch, range 3.5–25 bar, internally adjustable, with black cover, 1 changeover contact, IP54.
Technical Specifications
- Manufacturer part number (MPN)
- XMXA25L2135
- EAN / GTIN
- 3666916026564
- Sales unit
- pcs
- Package quantity
- 17 pcs
- Pressure
- 3.5-25 bar
- Width
- 57 mm
- Height
- 106 mm
- Depth
- 97.5 mm
- With display
- No
- With manual on/off switch
- No
- Initial setting
- 3500–25000 hPa
- End setting
- 100–20500 hPa
- Max. operation pressure
- 3125 hPa
- Number of auxiliary contacts as change-over contact
- 1
- Type of electric connection
- Screw connection
- Explosion-proof
- No
- Degree of protection (IP)
- IP54
- Switch off pressure
- 0.1–20.5 bar
- Rated voltage Ue at AC 50 Hz
- 120–240 V
- Rated voltage Ue at AC 60 Hz
- 120–240 V
- Rated voltage Ue at DC
- 250 V
- Bursting pressure
- 100 bar
- Engaging pressure
- 3.5–25 bar
- Electronic version
- No
- Suitable as 2-point controller
- Yes
- Suitable as limiter
- Yes
- Suitable as guard
- Yes
- Max. test pressure
- 56.25 bar
- Medium temperature
- 0–70 °C
- With hand operation
- No
- Pressure-switching differential
- 4.5 bar
- Max. operating pressure
- 25000 hPa
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 9032.20
Cross References
- EAN 3666916026564
- SAP 1000341186
- Code 8991282
Product Documentation
