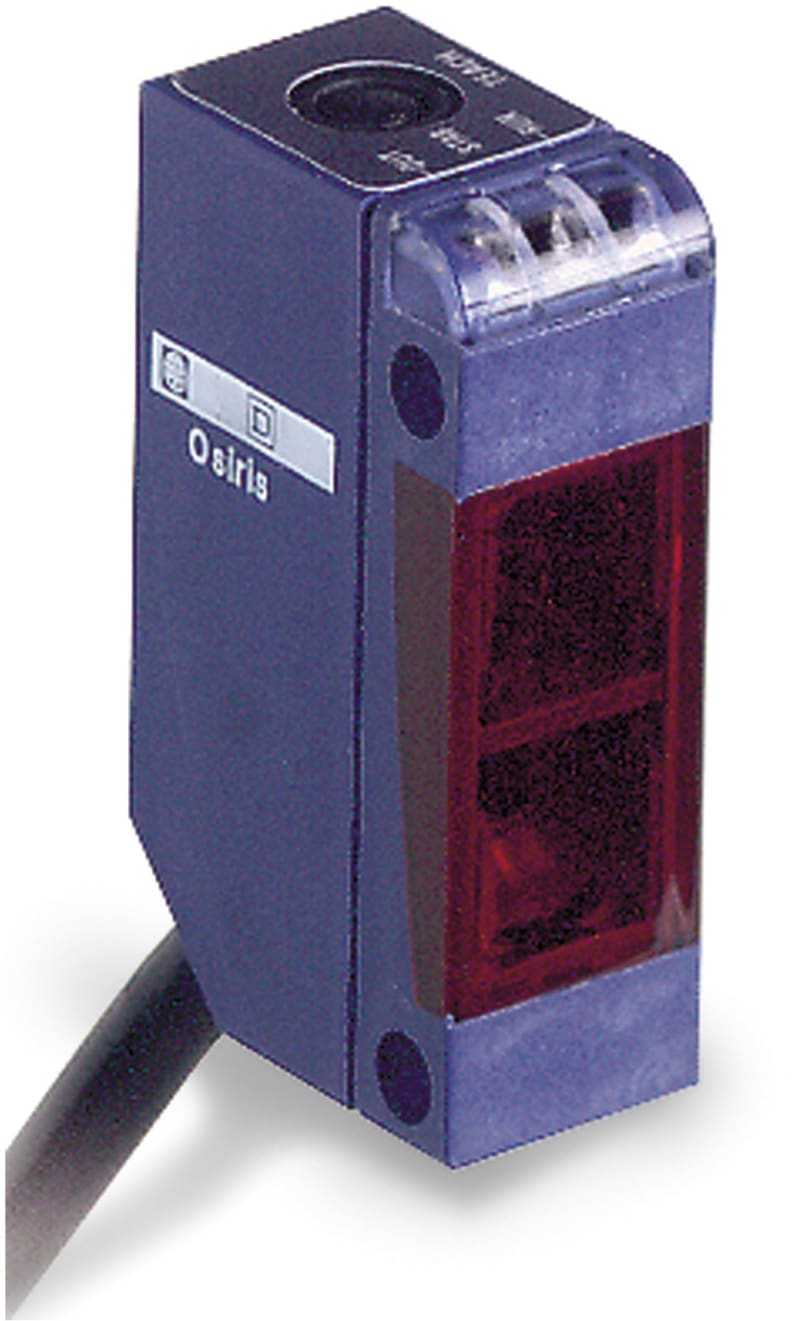

Telemecanique XUM0APSAL2 Multimode Photoelectric Sensor, Plastic, PNP, programmable, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUM0APSAL2 photoelectric multimode sensor (through-beam, reflex and diffuse modes), Miniature, plastic housing, PNP programmable output, rated distance 10 m, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUM0APSAL2
- EAN / GTIN
- 3666916033821
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Scope of delivery of the one-way system
- Receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 10000 mm
- Max. switching distance
- 14000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Teach-In
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Cable radial
- Type of switching output
- PNP/PNP
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Width sensor
- 20 mm
- Height of sensor
- 34 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Response time
- 2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Type of light
- Infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3666916033821
- SAP 1000064026
- Code 8896576
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XY2CH13450 Emergency Stop Rope Pull Switch
Telemecanique
Telemecanique XZCR1511064D2 Sensor Cable, M12 to M12
Telemecanique

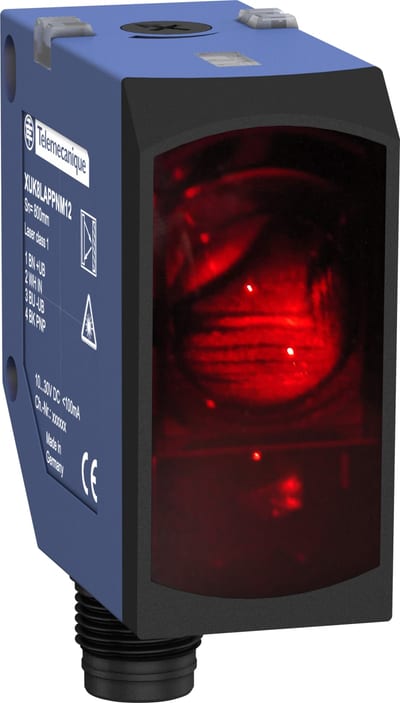

Telemecanique XUK5LAPSMM12 Laser Photoelectric Sensor, Diffuse, Sn 1.2 m, M12 Connector
Telemecanique

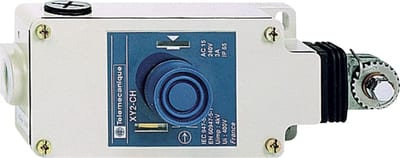

Telemecanique XY2CH13390H7 Emergency Stop Rope Pull Switch, 30 m Rope Span, 2 NC + 1 NO, 1/2" NPT entry
Telemecanique

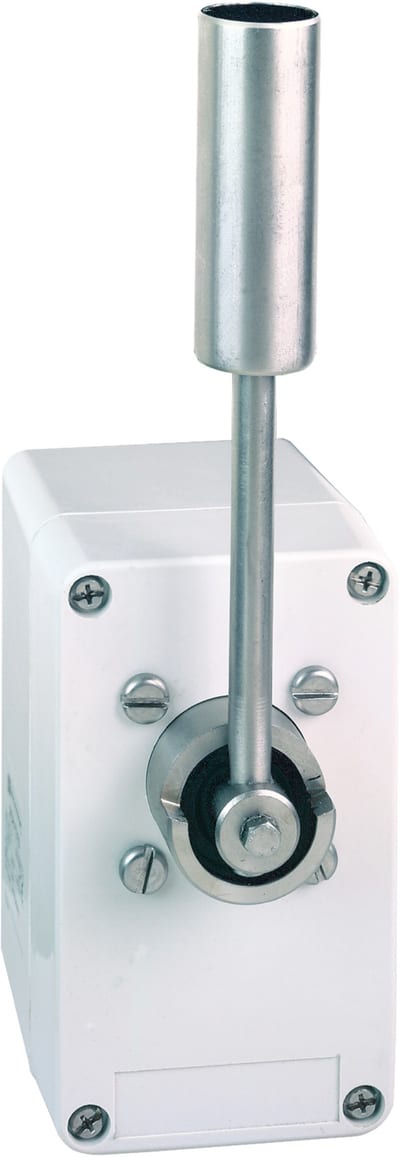

Telemecanique Limit Switch for Conveyor Belts, 2 CO, Corrosive Atmospheres
