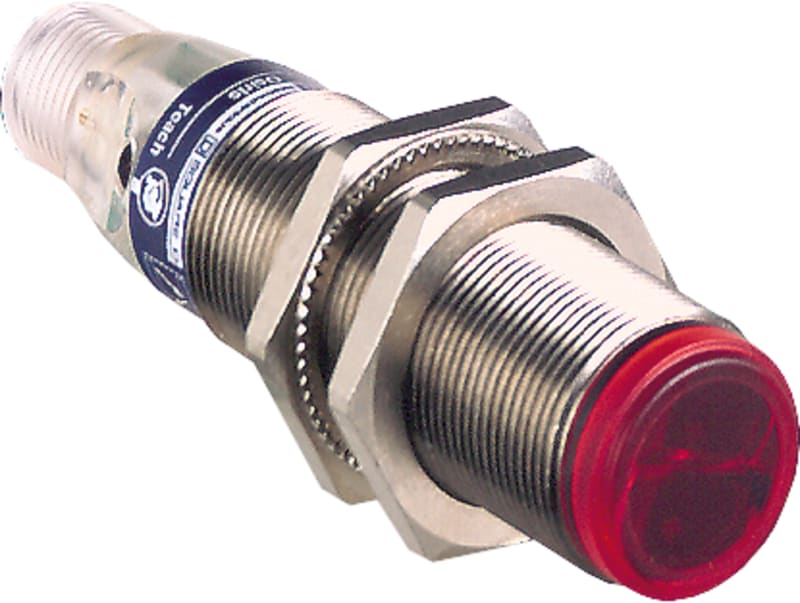

Telemecanique XUB0BNSNM12 Multimode Photoelectric Sensor, Metal, NPN, programmable, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB0BNSNM12 photoelectric multimode sensor (through-beam, reflex and diffuse modes), Ø18 mm (M18), metal housing, NPN programmable output, rated distance 3 m, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUB0BNSNM12
- EAN / GTIN
- 3666916033661
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- NPN
- Scope of delivery of the one-way system
- Transmitter and receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 3000 mm
- Max. switching distance
- 4500 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Teach-In
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- NPN/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 78 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Min. reflector distance
- 0 mm
- Ambient temperature
- -25–55 °C
- Response time
- 2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916033661
- SAP 1000050051
- Code 8723738
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUZASK004 Angled Mounting Bracket for XUK Laser Sensors
Telemecanique
Telemecanique XUB0BPSNL5 Multimode Photoelectric Sensor, Metal, PNP, programmable, 5 m cable
Telemecanique
Telemecanique XMLA300D2C11 Pressure Switch, 20–300 bar, DIN connector
Telemecanique
Telemecanique XMLP025BD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XMLA300E2S11 Pressure Switch, 20–300 bar
Telemecanique
Telemecanique XCSRC11AM12 Safety Limit Switch, M12 connector
Telemecanique
Telemecanique XY2CEDA196H7 Emergency Stop Rope Pull Switch, Double-Sided, NPT Entry, 2 × 100 m Rope
Telemecanique
Telemecanique XSAV11801TF Rotation Monitor (Under-Speed Detector) M30, 6–150 rpm, −40 °C
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUB0BNSNM12?
- XUB0BNSNM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUB0BNSNM12.
- What is the HS code for XUB0BNSNM12?
- The customs tariff (HS) code for XUB0BNSNM12 is 8536.50.
- Who manufactures XUB0BNSNM12?
- XUB0BNSNM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUB0BNSNM12?
- Yes — the XUB0BNSNM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUB0BNSNM12?
- The minimum order quantity is 1.
- Is XUB0BNSNM12 available?
- Yes — XUB0BNSNM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
