Telemecanique XSAV11801TF Rotation Monitor (Under-Speed Detector) M30, 6–150 rpm, −40 °C
Pricing
Request a quote
We reply within 24 hours
Product Description

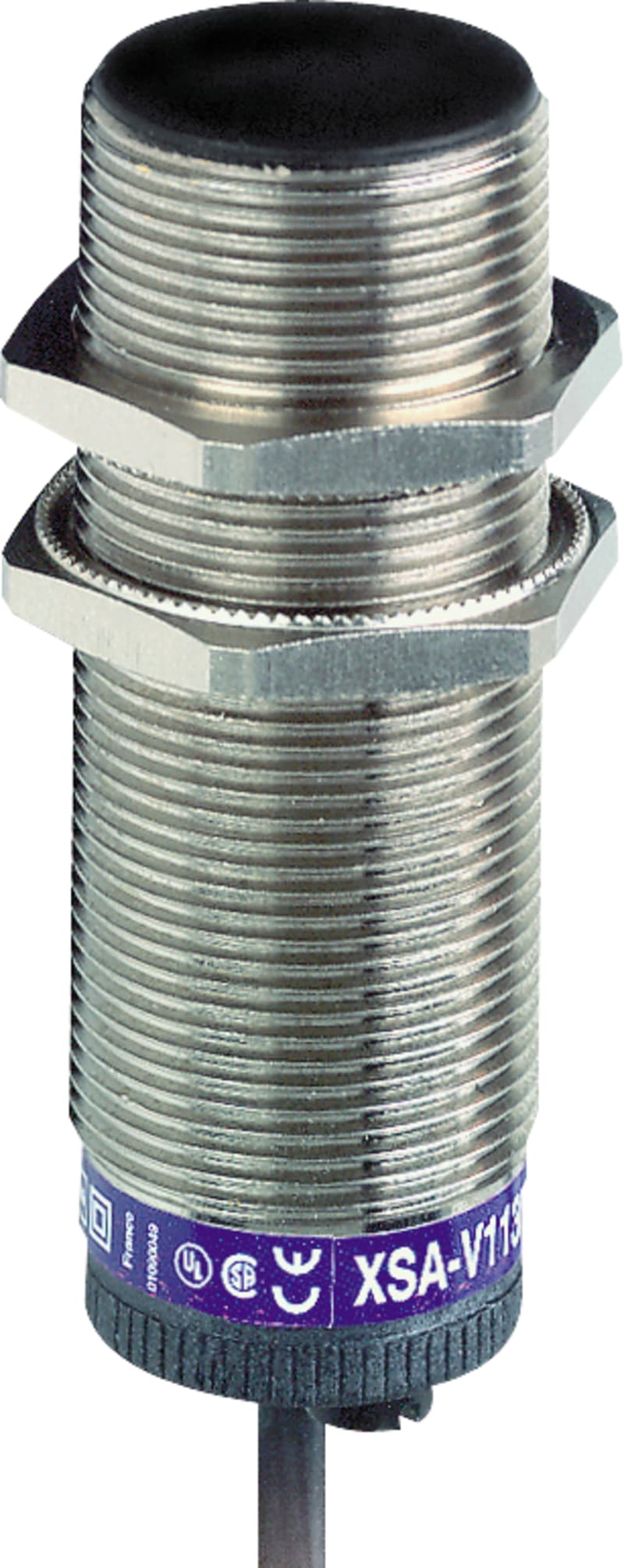

Telemecanique XSAV11801TF inductive rotation monitor (under-speed detector), M30 body, setting range 6–150 pulses/min, low-temperature version to −40 °C, 2-wire, screw terminals.
Technical Specifications
- Manufacturer part number (MPN)
- XSAV11801TF
- EAN / GTIN
- 3666916009185
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Height of sensor
- 30 mm
- Length of sensor
- 81 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 10 mm
- Suitable for safety functions
- No
- Type of switching output
- 2-wire
- Type of electric connection
- Screw connection
- Number of semiconductor outputs with signalling function
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Special construction
- Cascadable
- No
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Supply voltage
- 24–240 V
- Rated control supply voltage AC 50 Hz
- 24–240 V
- Rated control supply voltage AC 60 Hz
- 24–240 V
- Rated control supply voltage DC
- 24–210 V
- Voltage type
- AC/DC
- Switching frequency
- 10 Hz
- With monitoring function downstream switching devices
- No
- Housing material
- Plastic
- Compression-resistant
- No
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916009185
- SAP 1000341672
- Code 8976273
Product Documentation
