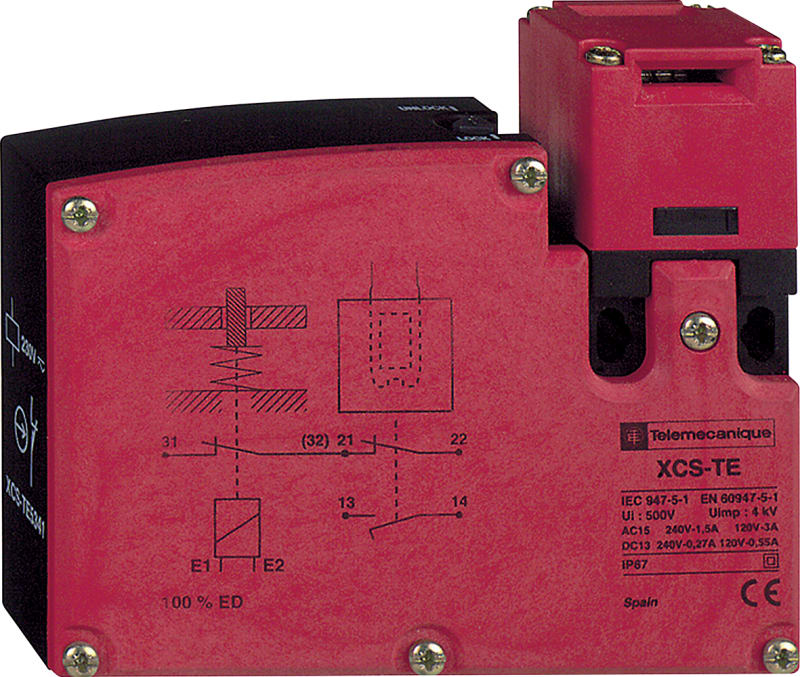

Telemecanique XCSTE7511 Safety Limit Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSTE7511 safety limit switch with positive opening contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSTE7511
- EAN / GTIN
- 3666916046807
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 24 V
- Rated control supply voltage magnet drive AC 60 Hz
- 24 V
- Rated control supply voltage magnet drive DC
- 24 V
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 110 mm
- With escape release
- No
- Height of sensor
- 94 mm
- Length of sensor
- 33 mm
- Ambient temperature during operating
- -25–60 °C
- Guard locking force
- 20 N
- Number of contacts as normally closed contact
- 2
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916046807
- SAP 1000342430
- Code 8377556
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUM0ANSAM8 Multimode Photoelectric Sensor, Plastic, NPN, programmable, M8 connector
Telemecanique
Telemecanique XUSL4E14F031NWC Safety Light Curtain Type 4, Finger Detection (14 mm), 310 mm Height
Telemecanique
Telemecanique XUB0ANSNL2 Multimode Photoelectric Sensor, Plastic, NPN, programmable, 2 m cable
Telemecanique
Telemecanique XCSRC30M12 Safety Limit Switch, M12 connector
Telemecanique
Telemecanique XUB0BNSNL2 Multimode Photoelectric Sensor, Metal, NPN, programmable, 2 m cable
Telemecanique
Telemecanique XY2CEDC290 Emergency Stop Rope Pull Switch, 100 m Rope Span
Telemecanique
Telemecanique XMLR2D5G1P25 Pressure Sensor with Display, 0–2.5 bar, 4–20 mA + 1× PNP
Telemecanique

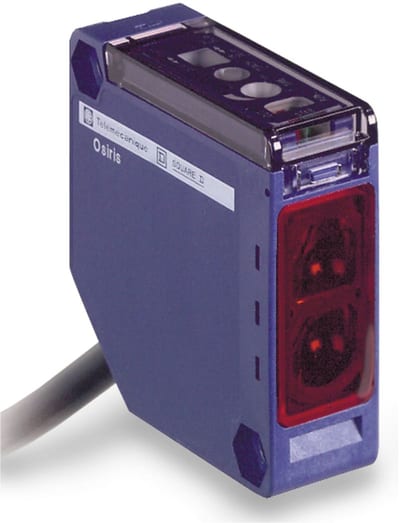

Telemecanique XUK0AKSAL2 Multimode Photoelectric Sensor, Plastic, PNP/NPN selectable, 2 m cable
