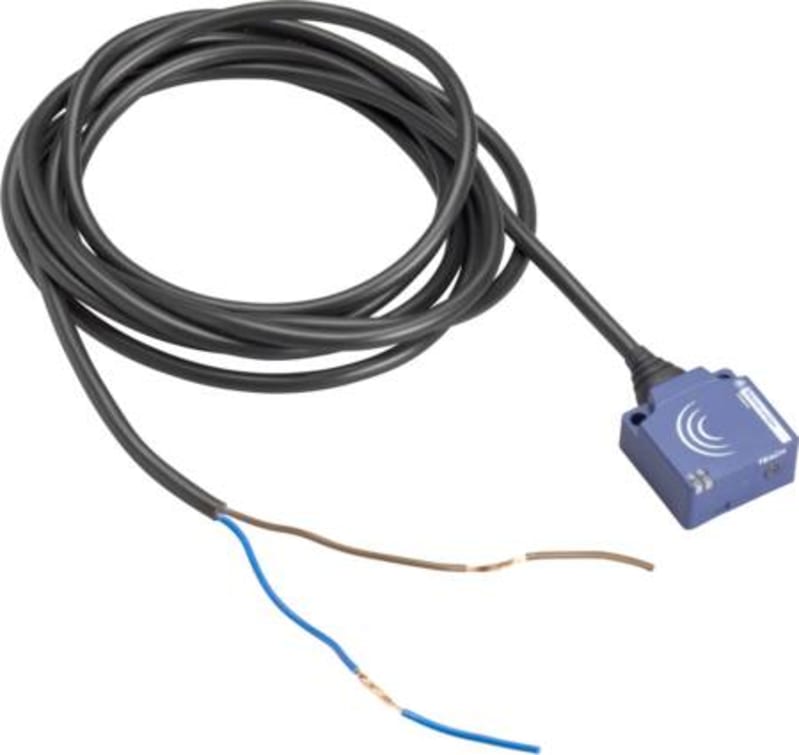

Telemecanique OsiSense XS8E1A1NAL2 Inductive Proximity Sensor — 26 × 26 mm block, Sn 15 mm, NPN, NO, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS8E1A1NAL2 is an OsiSense XS inductive proximity sensor in a 26 × 26 mm PBT thermoplastic rectangular block housing, with a nominal sensing distance (Sn) of 15 mm. It provides a NPN (3-wire DC) output, switching NO (normally open), via pre-wired cable. Operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS8E1A1NAL2
- EAN / GTIN
- 3666916009628
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- 26 × 26 mm rectangular block housing (PBT thermoplastic)
- Nominal sensing distance Sn
- 15 mm
- Output
- NPN (3-wire DC)
- Switching function
- NO (normally open)
- Connection
- pre-wired cable
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 8 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- PBT thermoplastic
- Temperature Range
- -25 °C to +70 °C
- HS Code
- 8536.50
Cross References
- EAN 3666916009628
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS630B1DAM12 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique OsiSense XS530B1PAL5 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique ZCD29 Limit Switch Body, Metal, NC/NC, Snap-action
Telemecanique
Telemecanique XUSL2E30H026N Safety Light Curtain Type 2, 30 mm resolution, hand detection, 260 mm protected height
Telemecanique
Telemecanique XUSZAST4PP Muting Arm, T-Shape, for XUSL Safety Light Curtains
Telemecanique
Telemecanique XUSL2E30H136N Safety Light Curtain Type 2, 30 mm resolution, hand detection, 1360 mm protected height
Telemecanique
Telemecanique XUX5APBNM12 Photoelectric Sensor, Diffuse, Plastic, PNP, NC, M12 connector
Telemecanique

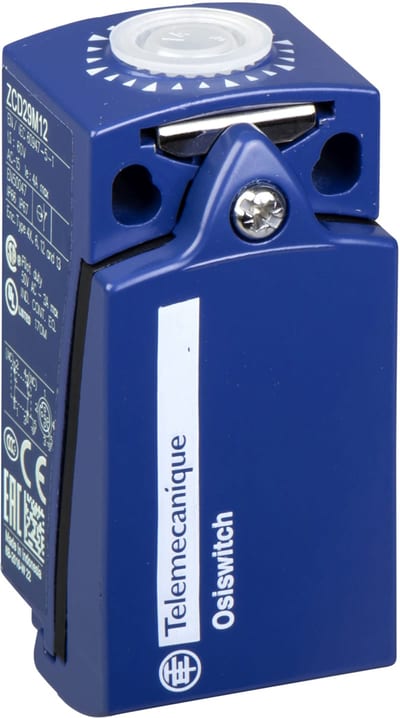

Telemecanique ZCD29M12 Limit Switch Body, Metal, NC/NC, Snap-action, M12 connector
