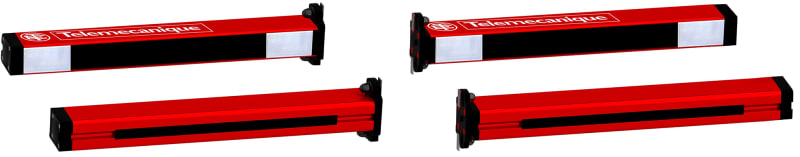

Telemecanique XUSZAST4PP Muting Arm, T-Shape, for XUSL Safety Light Curtains
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSZAST4PP muting arm, t-shape, with muting sensors, for XUSL safety light curtain installations.
Technical Specifications
- Manufacturer part number (MPN)
- XUSZAST4PP
- EAN / GTIN
- 3666916026953
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 4
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Width sensor
- 50 mm
- Height of sensor
- 55 mm
- Length of sensor
- 360 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- With muting function
- Yes
- Override possible
- No
- Response time
- 100 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 3.5 m
- Switching voltage of OSSD at state "high"
- 24 V
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916026953
- SAP 1200357444
- Code 82360694
