Telemecanique XUSL2E30H026N Safety Light Curtain Type 2, 30 mm resolution, hand detection, 260 mm protected height
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL2E30H026N type 2 safety light curtain, 30 mm resolution, hand detection, 260 mm protected height.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL2E30H026N
- EAN / GTIN
- 3666916028919
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 1
- Width sensor
- 29.4 mm
- Height of sensor
- 313 mm
- Length of sensor
- 31 mm
- Detection capability for test bodies
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 6 ms
- Resolution of the light curtain
- 30 mm
- Reduced resolution
- No
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 260 mm
- Type of safety according to IEC 61496-1
- 2
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028919
- SAP 1000651973
- Code 8639314
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSZAST4PP Muting Arm, T-Shape, for XUSL Safety Light Curtains
Telemecanique
Telemecanique XUSL2E30H136N Safety Light Curtain Type 2, 30 mm resolution, hand detection, 1360 mm protected height
Telemecanique
Telemecanique XUX5APBNM12 Photoelectric Sensor, Diffuse, Plastic, PNP, NC, M12 connector
Telemecanique
Telemecanique ZCD29M12 Limit Switch Body, Metal, NC/NC, Snap-action, M12 connector
Telemecanique

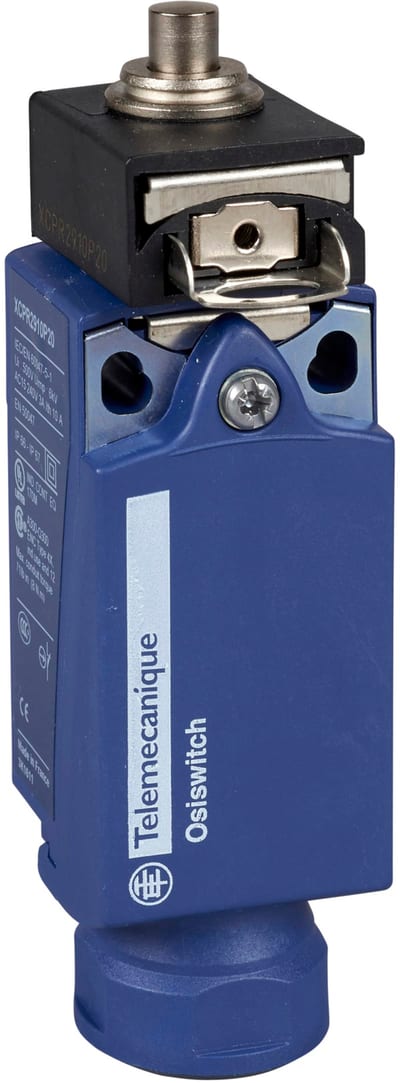

Telemecanique XCPR2110P20 Limit Switch, Plastic Body, M20 entry
Telemecanique
Telemecanique OsiSense XS7C2A1PAM12 Inductive Proximity Sensor — 40 × 40 × 70 mm block, Sn 15 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique

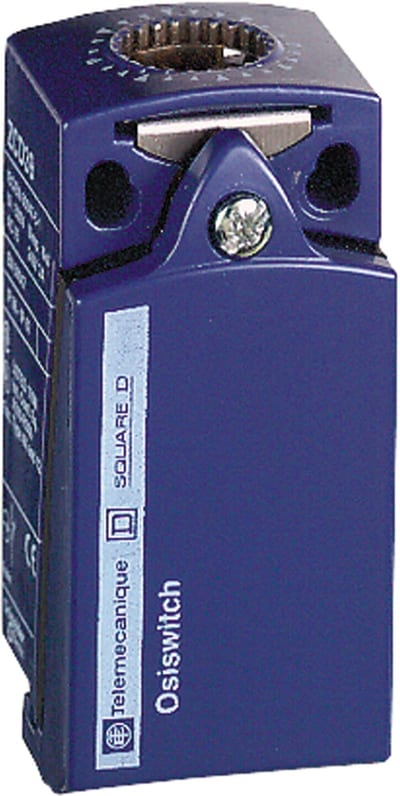

Telemecanique ZCD37 Limit Switch Body, Metal, NO/NC/NC, Slow-break
