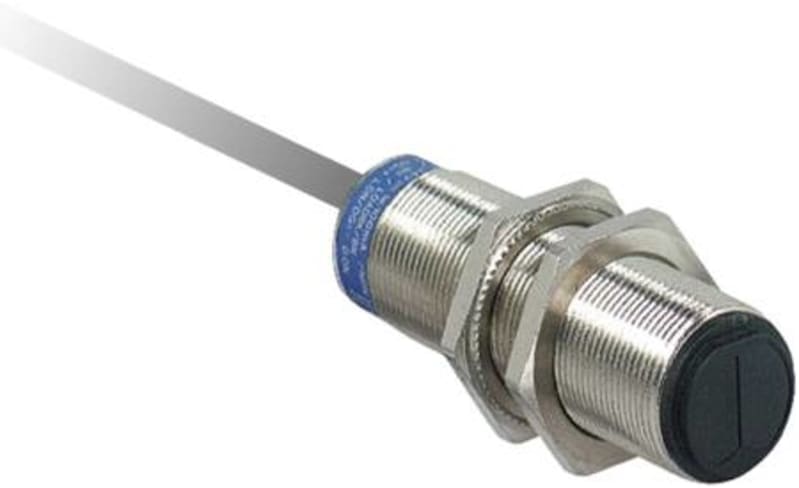

Telemecanique XU5N18PP341 Photoelectric Sensor M18, Diffuse, Stainless Steel, PNP, 2 m Cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XU5N18PP341 M18 diffuse (direct detection) photoelectric sensor, stainless steel housing, PNP output, pre-wired 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XU5N18PP341
- EAN / GTIN
- 3666916037102
- Sales unit
- pcs
- Output type
- PNP
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Metal
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- Switching frequency
- 500 Hz
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Cable radial
- Type of switching output
- PNP/PNP
- Type of switch function
- Programmable/configurable
- Rated control supply voltage DC
- 12–24 V
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Infrared light
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0.3 mm
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 1 ms
- Transmission range of the safety field
- 3 m
- Type of safety according to IEC 61496-1
- 1
- Operating distance
- 100 mm
- Pre failure notice
- No
- Material of optical surface
- Plastic
- Degree of protection (IP)
- IP67K
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- Diameter sensor
- 18 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 62 mm
- Max. switching distance
- 150 mm
- With reflector
- No
- With other analogue output
- No
- Sensing mode
- Dark switching
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916037102
- SAP 1000003802
- Code 8470564
