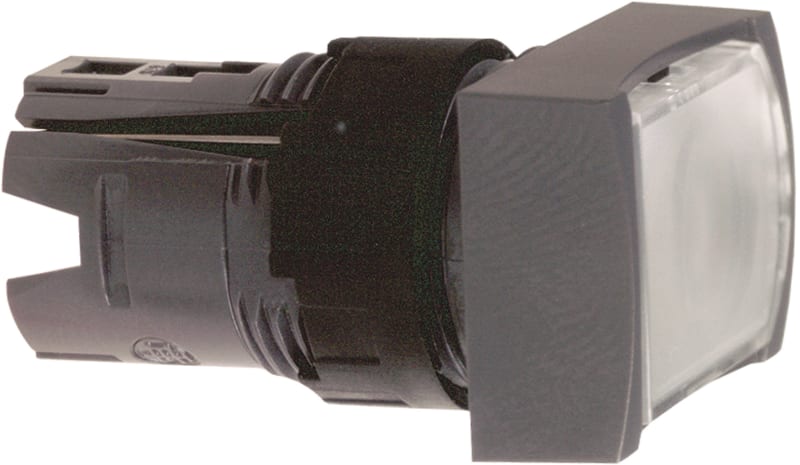

Telemecanique ZB6DW1 Illuminated Pushbutton Head, White, for LED Module, Harmony XB6
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB6DW1 illuminated pushbutton head, white, for LED lamp module, Harmony XB6 Ø22 mm operators.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6DW1
- EAN / GTIN
- 3389110776027
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for illuminated push-button
- Product compatibility
- Integral LED
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Rectangular
- Type of operator
- spring return
- Operator profile
- White flush, unmarked
- CAD overall width
- 24 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 33 mm
- Product weight
- 0.016 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94; NEMA 13 conforming to CSA C22.2 No 94
- Standards
- JIS C8201-5-1; EN/IEC 60947-5-1; CSA C22.2 No 14; UL 508; EN/IEC 60947-5-5; JIS C 852; EN/IEC 60947-1; JIS C8201-1
- Product certifications
- GOST; CSA; CCC; UL
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 75
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Colour button
- White
- Suitable for lighting
- Yes
- Number of command positions
- 1
- Spring-return
- Yes
- Labelled
- No
- Type of button
- Flat
- Colour front ring
- Grey
- Degree of protection (IP), front side
- IP65
- With protective cover
- No
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Rectangular
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110776027
- SAP 1000254023
- Code 81134285
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKS559H29 Limit Switch, Plastic Rod Lever, 1 NO + 1 NC, M20 entry
Telemecanique
Telemecanique XCKN2121P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Telemecanique
Telemecanique XUB2APBNM12R Photoelectric Through-Beam Receiver, Plastic, PNP, NC, M12 connector
Telemecanique
Telemecanique XUB1APBWM12 Photoelectric Sensor M18, Plastic, PNP, M12 connector
Telemecanique
Telemecanique XCNR2102P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Telemecanique
Limit Switch Metal 1POL 1 C/O
XC2JC163
Telemecanique
Telemecanique XZCP1541L10 Sensor Cable, M12 male straight, 4-pin, 10 m
Telemecanique

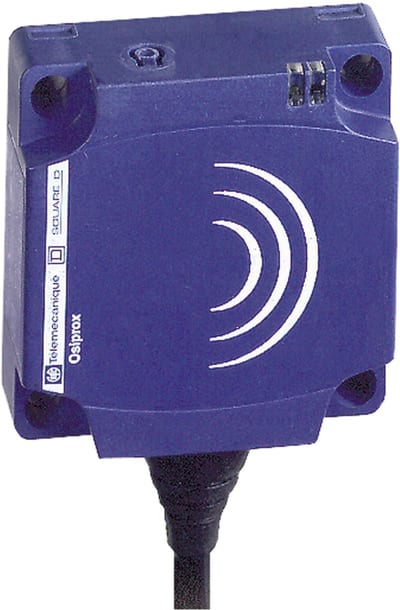

Telemecanique OsiSense XS8C1A1MAL2 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, 2-Wire AC/DC, NO, pre-wired cable
