Telemecanique XZCC8MDM30V Field-Wireable Connector, M8, Male, Straight, 3-pin, Metal
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XZCC8MDM30V field-wireable (user-attachable) connector, M8 male straight, 3-pin, metal body, screw-clamp wiring, for sensor and actuator cabling.
Technical Specifications
- Manufacturer part number (MPN)
- XZCC8MDM30V
- EAN / GTIN
- 3666916069721
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Thread size
- M8
- Contact type
- Pin
- Diameter connector
- 8 mm
- Thread size M
- 8
- Number of data contacts
- 3
- For cable outer diameter
- 9.5 mm
- Type of housing
- Straight
- Rated current In
- 4 A
- Ambient temperature
- -40–85 °C
- Rated voltage
- 60 V
- Connectable conductor cross section solid-core
- 0–0.25 mm²
- Connectable conductor cross section multi-wired
- 0–0.25 mm²
- With interlocking device
- No
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- None
- Operating temperature
- -40–85 °C
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67K
- Screened
- No
- With status indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916069721
- SAP 1000071107
- Code 8764789
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCKJ9 Limit Switch Body for ZCK Limit Switches
Telemecanique
Telemecanique XMLP016BD71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique ZCY55 Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique

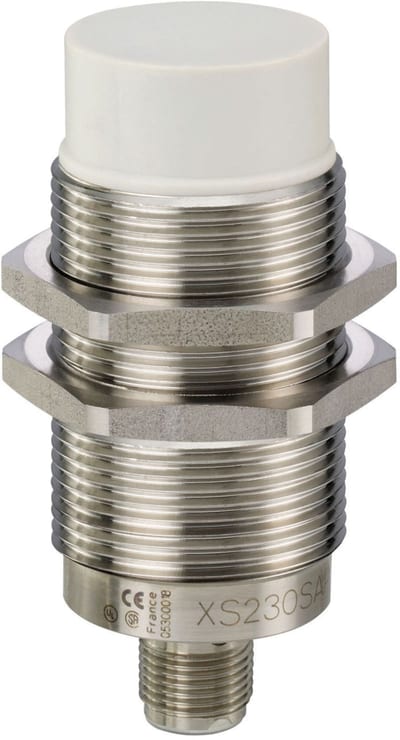

Telemecanique XS230SAMAU20 Inductive Proximity Sensor, M2
Telemecanique

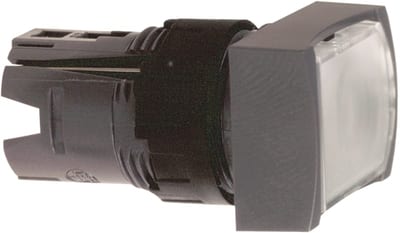

Telemecanique ZB6DW1 Illuminated Pushbutton Head, White, for LED Module, Harmony XB6
Telemecanique

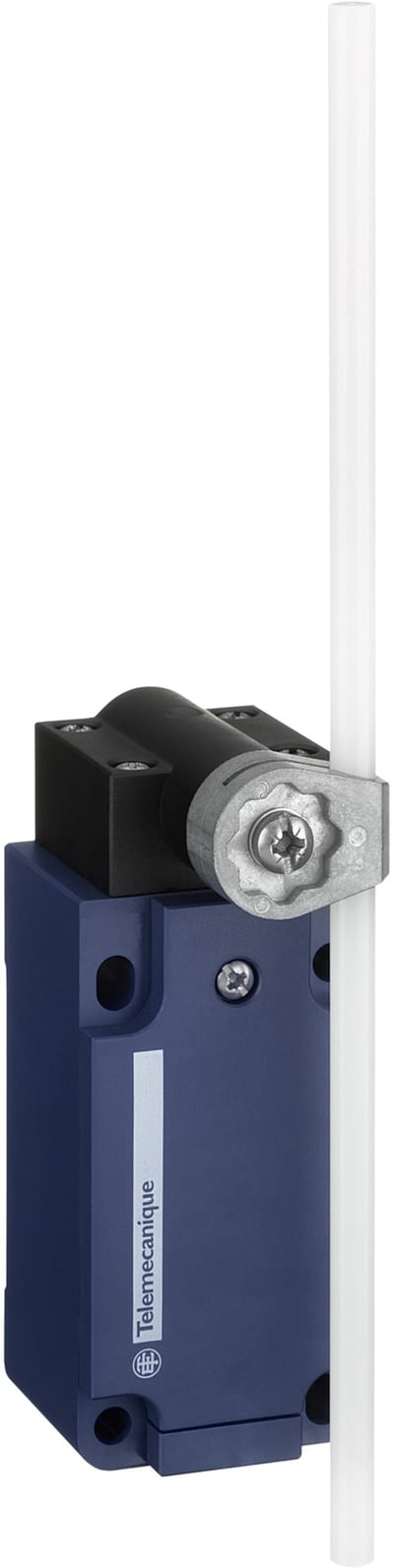

Telemecanique XCKS559H29 Limit Switch, Plastic Rod Lever, 1 NO + 1 NC, M20 entry
Telemecanique
Telemecanique XCKN2121P20 Limit Switch, Plunger, 1 NC + 1 NO, M20 entry
Telemecanique

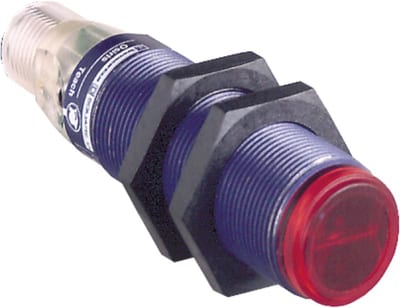

Telemecanique XUB2APBNM12R Photoelectric Through-Beam Receiver, Plastic, PNP, NC, M12 connector
