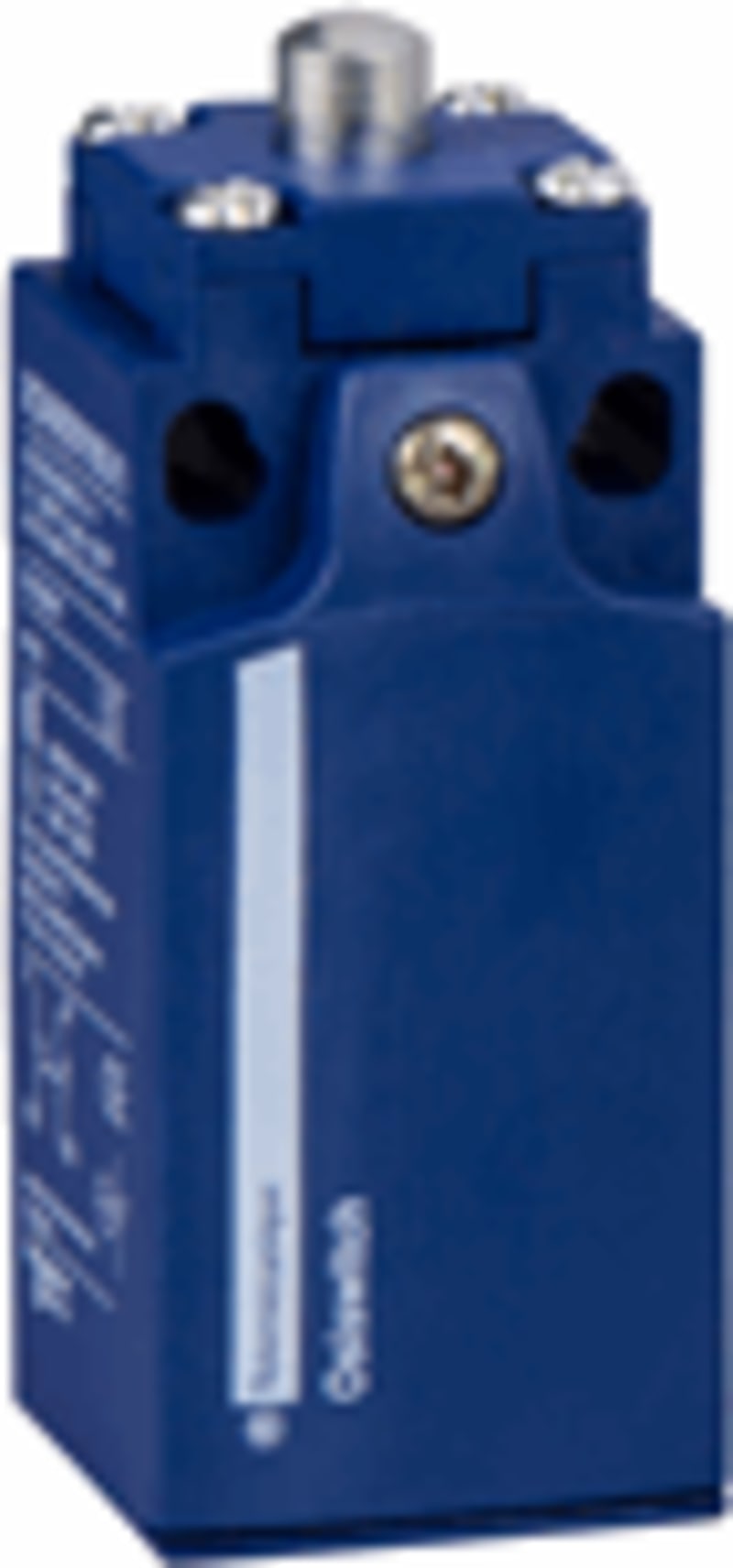

Telemecanique XCKN2110P20 Limit Switch, Plunger, NC+NO, Plastic Body, M20 cable entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XCKN2110P20 limit switch with plunger actuator, NC+NO switching contacts, plastic body, M20 cable entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKN2110P20
- EAN / GTIN
- 3666916055342
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NC + NO
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 75 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916055342
- SAP 1000071461
- Code 8784966
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XS130B3PBM12 Inductive Proximity Sensor Ø30 mm, Threaded, PNP NC, M12 connector
Telemecanique
Telemecanique XZCR1510040H2 Sensor Cable, M12 to M12
Telemecanique
Telemecanique XUSL4E3BB081NM Safety Light Grid Type 4, Body Detection, 3 Beams, 810 mm
Telemecanique
Telemecanique XMEP100BD11F Pressure Transmitter, 0–100 bar, G 1/4 A, 0.5–4.5 V ratiometric
Telemecanique
Telemecanique XXV18B1NBL5 Ultrasonic Sensor M18, Metal, NPN, NC, Range 5 m, 5 m cable
Telemecanique
Telemecanique OsiSense XS630B1PBL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique OsiSense XS8C1A1MAL10 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, 2-Wire AC/DC, NO, pre-wired cable
Telemecanique
Telemecanique XMLP025BC290 Pressure Transmitter, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, DIN connector
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCKN2110P20?
- XCKN2110P20 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCKN2110P20.
- What is the HS code for XCKN2110P20?
- The customs tariff (HS) code for XCKN2110P20 is 8536.50.
- Who manufactures XCKN2110P20?
- XCKN2110P20 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XCKN2110P20?
- Yes — the XCKN2110P20 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCKN2110P20?
- The minimum order quantity is 1.
- Is XCKN2110P20 available?
- Yes — XCKN2110P20 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
