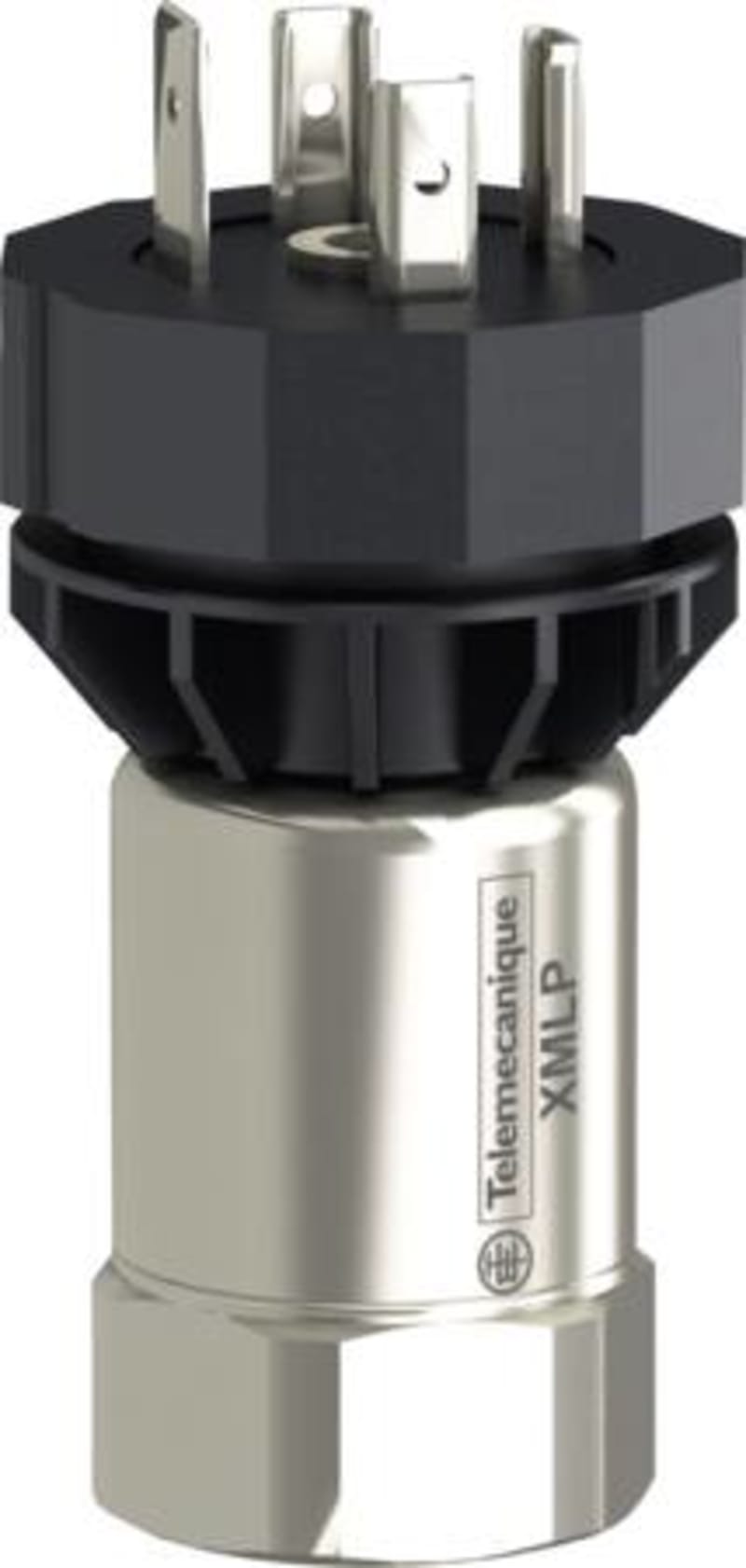

Telemecanique XMLP025BC290 Pressure Transmitter, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, DIN connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XMLP025BC290 OsiSense XMLP pressure transmitter, 0.5–4.5 V ratiometric output, 7/16"-20 UNF female process connection, DIN connector.
Technical Specifications
- Manufacturer part number (MPN)
- XMLP025BC290 EAN / GTIN: 3666916023044 Sales unit: pcs Pressure: 25 bar Pressure rating: 25 bar Output signal: 4–20 mA Process connection: 7/16 in female Depth: 66.5 mm With display: No Diameter: 26 mm With manual on/off switch: No Initial setting: 0–25000 hPa End setting: 0–25000 hPa Max. operation pressure: 25000 hPa Explosion-proof: No Degree of protection (IP): IP65/IP67 Switch off pressure: 0–25 bar Rated voltage Ue at DC: 12–24 V Bursting pressure: 75 bar Engaging pressure: 0–25 bar Electronic version: Yes End value measuring range pressure: 2500000 Pa Suitable as 2-point controller: No Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 50 bar Medium temperature: -20–120 °C With hand operation: No Max. operating pressure: 25000 hPa Country of origin: Switzerland
Standards & Compliance
- HS Code
- 9026.20
Cross References
- EAN 3666916023044
- SAP 1200045302
- Code 81877375
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS2M18KP340 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP or NPN, programmable, NO or NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XZCP2540L2 Sensor Cable, M12 female angled, 3-pin, 2 m
Telemecanique
Telemecanique XUYFANEP60030 Infrared Fork Sensor 59 × 30 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique ZCKE06 Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique OsiSense XS612B3DBM12 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, 2-Wire DC, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XUBTANSNM12 Photoelectric Sensor M18, Retroreflective for Transparent Objects, Plastic, NPN, M12 connector
Telemecanique
Telemecanique XUSL4E14F076N Safety Light Curtain Type 4, Finger Detection (14 mm), 760 mm Height
Telemecanique
Telemecanique XUSL4E14F061NM Safety Light Curtain Type 4, Finger Detection (14 mm), 610 mm Height
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XMLP025BC290?
- XMLP025BC290 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XMLP025BC290.
- What is the HS code for XMLP025BC290?
- The customs tariff (HS) code for XMLP025BC290 is 9026.20.
- Who manufactures XMLP025BC290?
- XMLP025BC290 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XMLP025BC290?
- Yes — the XMLP025BC290 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XMLP025BC290?
- The minimum order quantity is 1.
- Is XMLP025BC290 available?
- Yes — XMLP025BC290 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
