Telemecanique XUSL4E3BB081NM Safety Light Grid Type 4, Body Detection, 3 Beams, 810 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4E3BB081NM Type 4 safety light grid for body detection, 3 beams, protected height 810 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4E3BB081NM
- EAN / GTIN
- 3666916027684
- Sales unit
- pcs
- Protective field height
- 810 mm
- Number of beams
- 3
- Type (EN IEC 61496)
- Type 4
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 29.4 mm
- Height of sensor
- 977 mm
- Length of sensor
- 31 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- Yes
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 3 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 810 mm
- Type of safety according to IEC 61496-1
- 4
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027684
- SAP 1000652089
- Code 8639441
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMEP100BD11F Pressure Transmitter, 0–100 bar, G 1/4 A, 0.5–4.5 V ratiometric
Telemecanique
Telemecanique XXV18B1NBL5 Ultrasonic Sensor M18, Metal, NPN, NC, Range 5 m, 5 m cable
Telemecanique
Telemecanique OsiSense XS630B1PBL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique OsiSense XS8C1A1MAL10 Inductive Proximity Sensor — 40 × 40 mm block, Sn 25 mm, 2-Wire AC/DC, NO, pre-wired cable
Telemecanique

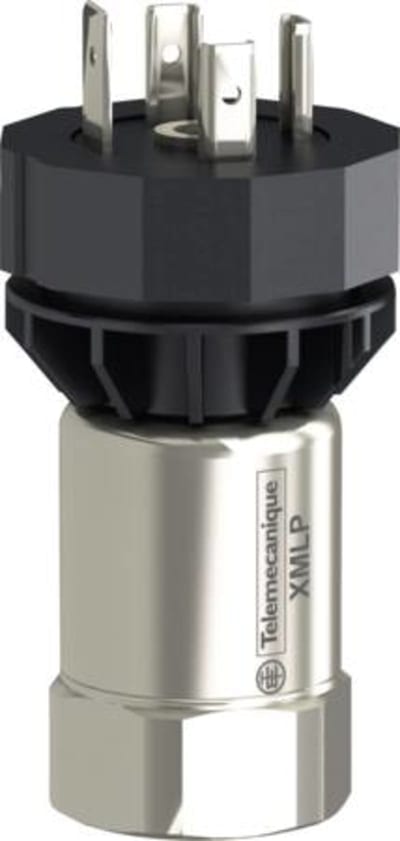

Telemecanique XMLP025BC290 Pressure Transmitter, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, DIN connector
Telemecanique

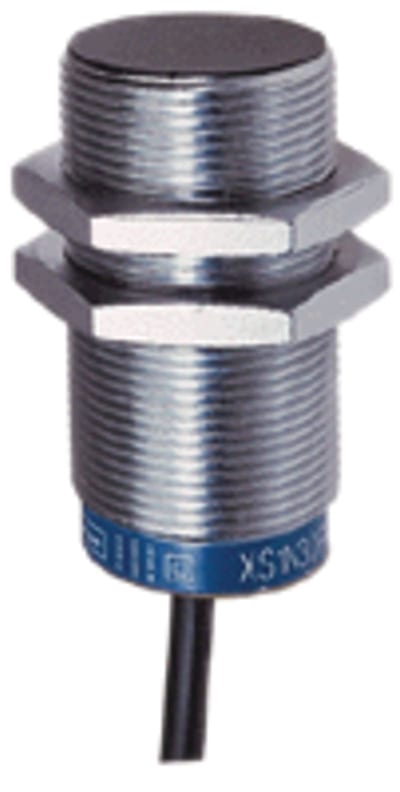

Telemecanique OsiSense XS2M18KP340 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP or NPN, programmable, NO or NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XZCP2540L2 Sensor Cable, M12 female angled, 3-pin, 2 m
Telemecanique

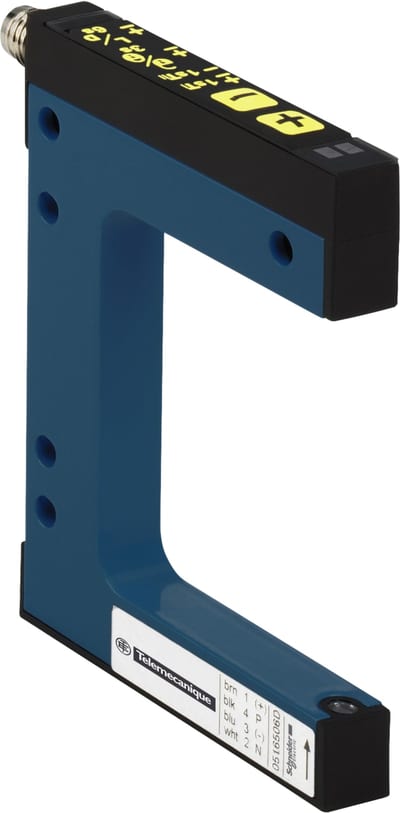

Telemecanique XUYFANEP60030 Infrared Fork Sensor 59 × 30 mm, Teach-In, M8 Connector
