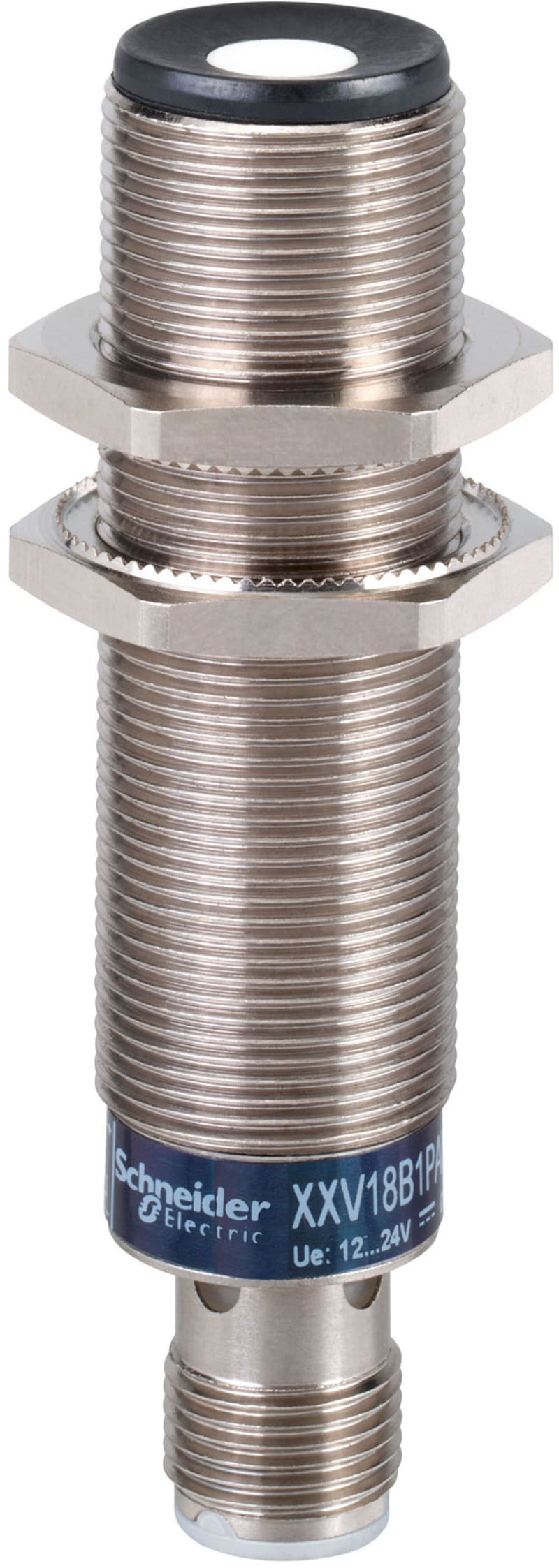

Telemecanique XXV18B1PAM12 Ultrasonic Sensor M18, Metal, PNP, NO, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XXV18B1PAM12 ultrasonic sensor, M18 metal body, PNP NO output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XXV18B1PAM12
- EAN / GTIN
- 3666916080030
- Sales unit
- pcs
- Package quantity
- 94 pcs
- Diameter
- 18 mm
- Output type
- PNP
- Contact configuration
- NO
- Connector
- M12
- Voltage type
- DC
- Max. output current
- 200 mA
- Housing material
- Brass
- Ambient temperature
- 0–60 °C
- Switching frequency
- 80 Hz
- Type of electric connection
- Connector M12
- Type of switching output
- PNP
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 3 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 15 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 1.5 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 75 mm
- Measuring range length
- 3–50 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 9031.80
Cross References
- EAN 3666916080030
- SAP 1000149608
- Code 8656030
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLBM02V2S12 Pressure Switch, 0–1 bar
Telemecanique
Telemecanique OsiSense XS7E1A1PAL5 Inductive Proximity Sensor — 26 × 26 mm block, Sn 10 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique XMLP250BD71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique OsiSense XS618B1NAM12 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, NPN, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XUSL2E30H091NWC Safety Light Curtain Type 2, 30 mm resolution, hand detection, 910 mm protected height
Telemecanique
Telemecanique OsiSense XS218BLPBL2 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique ZCY23 Metal Roller Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique
Telemecanique OsiSense XS630B1PBM12 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, PNP, NC, M12 connector (4-Pin)
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XXV18B1PAM12?
- XXV18B1PAM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XXV18B1PAM12.
- What is the HS code for XXV18B1PAM12?
- The customs tariff (HS) code for XXV18B1PAM12 is 9031.80.
- Who manufactures XXV18B1PAM12?
- XXV18B1PAM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XXV18B1PAM12?
- Yes — the XXV18B1PAM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XXV18B1PAM12?
- The minimum order quantity is 1.
- Is XXV18B1PAM12 available?
- Yes — XXV18B1PAM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
