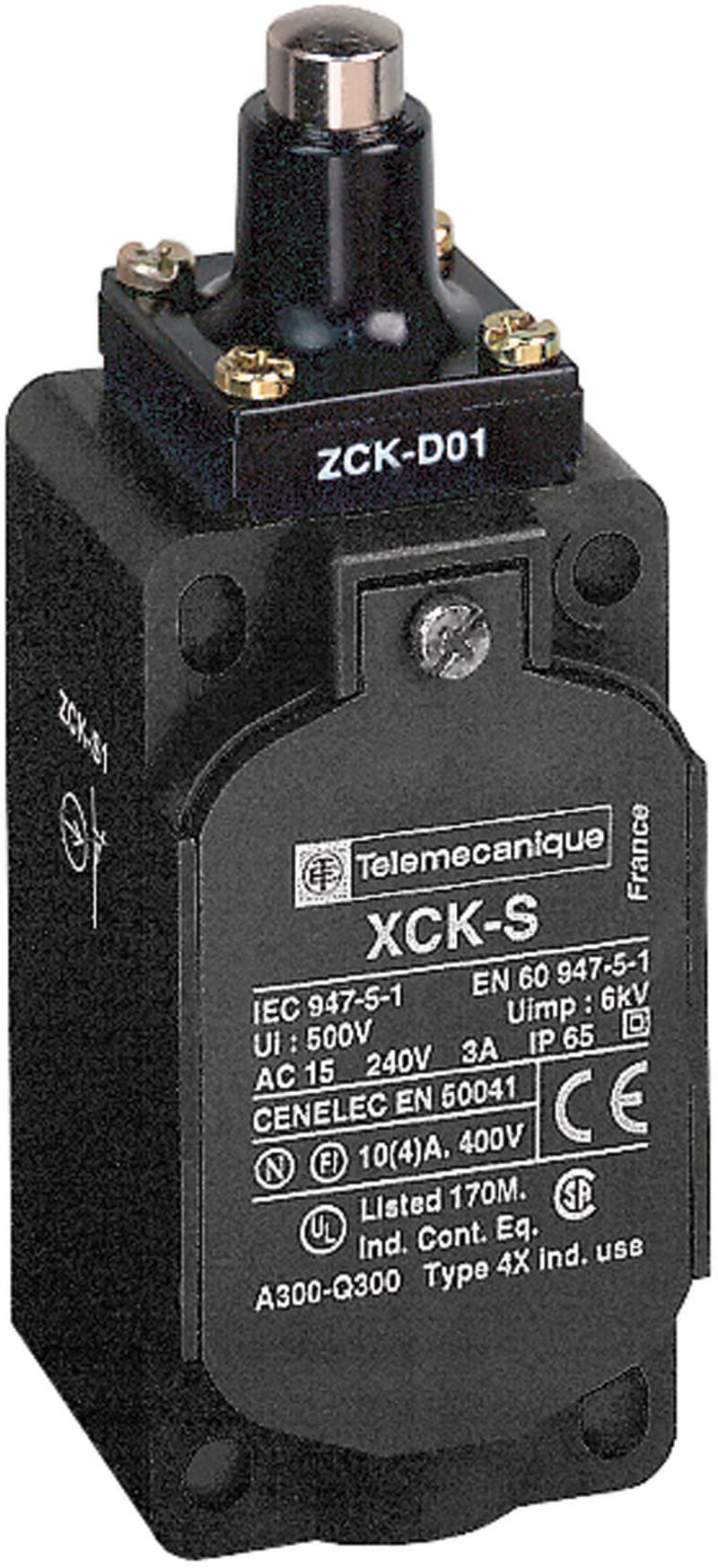

Telemecanique XCKS101 Limit Switch, Metal Plunger
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKS101 limit switch (position switch), metal plunger actuator.
Technical Specifications
- Manufacturer part number (MPN)
- XCKS101
- EAN / GTIN
- 3666916053942
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 72.5 mm
- Length of sensor
- 36 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916053942
- SAP 1000038813
- Code 8785968
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCS Safety Interlock Switch with Magnetic Locking 220 V 3NC+3NC
XCSLE3838342
Telemecanique
Telemecanique XZCPA1241L10 Sensor Cable, M12 female, 4-pin, PVC, 10 m
Telemecanique
Sign REDT STOP (ZB2BY2304)
Telemecanique
Telemecanique XZCC20MDM30B Field-Wireable Connector, 1/2"-20 UNF, Male, Straight, 3-pin, Metal
Telemecanique
Telemecanique XUX0AKSAM12T Photoelectric Emitter, XUX Multipurpose, M12 connector
Telemecanique
Telemecanique OsiSense XS1M30KP340D Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP or NPN, programmable, NO or NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XZCP1241L10S23 Sensor Cable, M12 female angled, 4-pin, PUR, 10 m
Telemecanique

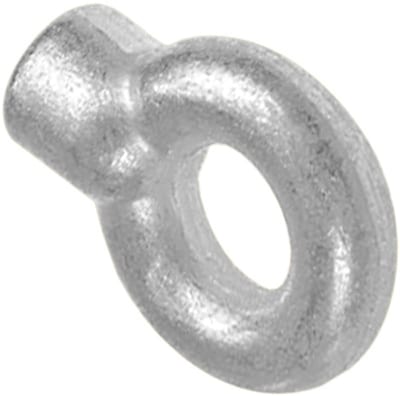

Telemecanique XY2CZ601 Emergency Stop Rope Pull Switch
