Telemecanique XCS Safety Interlock Switch with Magnetic Locking 220 V 3NC+3NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Mechanical safety interlock switch in a plastic housing with magnetic solenoid guard locking and 3 NC + 3 NC slow-action contact configuration, operated at 220 V. Guard locking follows the operating-current principle with 20 N locking force; cable entry is metric M20 and enclosure is IP67K. Sensor dimensions 44 x 205 x 51 mm; ambient operating range -25 to 60 degrees C. Typical application is on machine guard doors requiring monitored access with power interlock.
Technical Specifications
- Manufacturer part number (MPN)
- XCSLE3838342
- EAN / GTIN
- 3666916047897
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 220 V
- Contact configuration
- 3 NC + 3 NC
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 0.75 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 230 V
- Rated control supply voltage magnet drive AC 60 Hz
- 230 V
- Rated control supply voltage magnet drive DC
- 230 V
- Rated operation current Ie at DC-13, 24 V
- 0.55 A
- Width sensor
- 44 mm
- With escape release
- No
- Height of sensor
- 205 mm
- Length of sensor
- 51 mm
- Ambient temperature during operating
- -25–60 °C
- Guard locking force
- 20 N
- Number of contacts as normally closed contact
- 3
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916047897
- SAP 1000336175
- Code 8367594
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCPA1241L10 Sensor Cable, M12 female, 4-pin, PVC, 10 m
Telemecanique
Sign REDT STOP (ZB2BY2304)
Telemecanique
Telemecanique XZCC20MDM30B Field-Wireable Connector, 1/2"-20 UNF, Male, Straight, 3-pin, Metal
Telemecanique
Telemecanique XUX0AKSAM12T Photoelectric Emitter, XUX Multipurpose, M12 connector
Telemecanique
Telemecanique OsiSense XS1M30KP340D Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP or NPN, programmable, NO or NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XZCP1241L10S23 Sensor Cable, M12 female angled, 4-pin, PUR, 10 m
Telemecanique
Telemecanique XY2CZ601 Emergency Stop Rope Pull Switch
Telemecanique

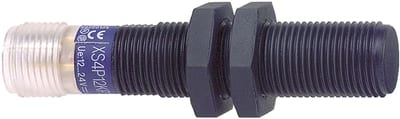

V Givereeer Plastic Ø12 with PLUG
