Telemecanique OsiSense XS1M30KP340D Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP or NPN, programmable, NO or NC, M12 connector (4-pin)
Telemecanique

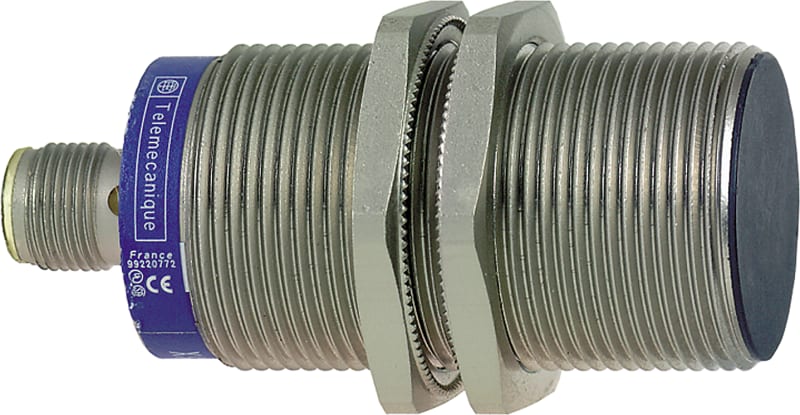

Telemecanique XS1M30KP340D is an OsiSense XS inductive proximity sensor in an M30 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 10 mm. It provides a PNP or NPN, programmable (3-wire DC) output, switching NO or NC (programmable), via M12 connector (4-pin). Rated supply 12…24 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Specifications
- Part number
- XS1M30KP340D
- HS code
- 8536.50
- Material
- Nickel-plated brass
- Temperature range
- -25 °C to +70 °C
- IP rating
- IP67
- Standard
- IEC 60947-5-2
Standards
